Troubleshooting > Clearing Paper Jams

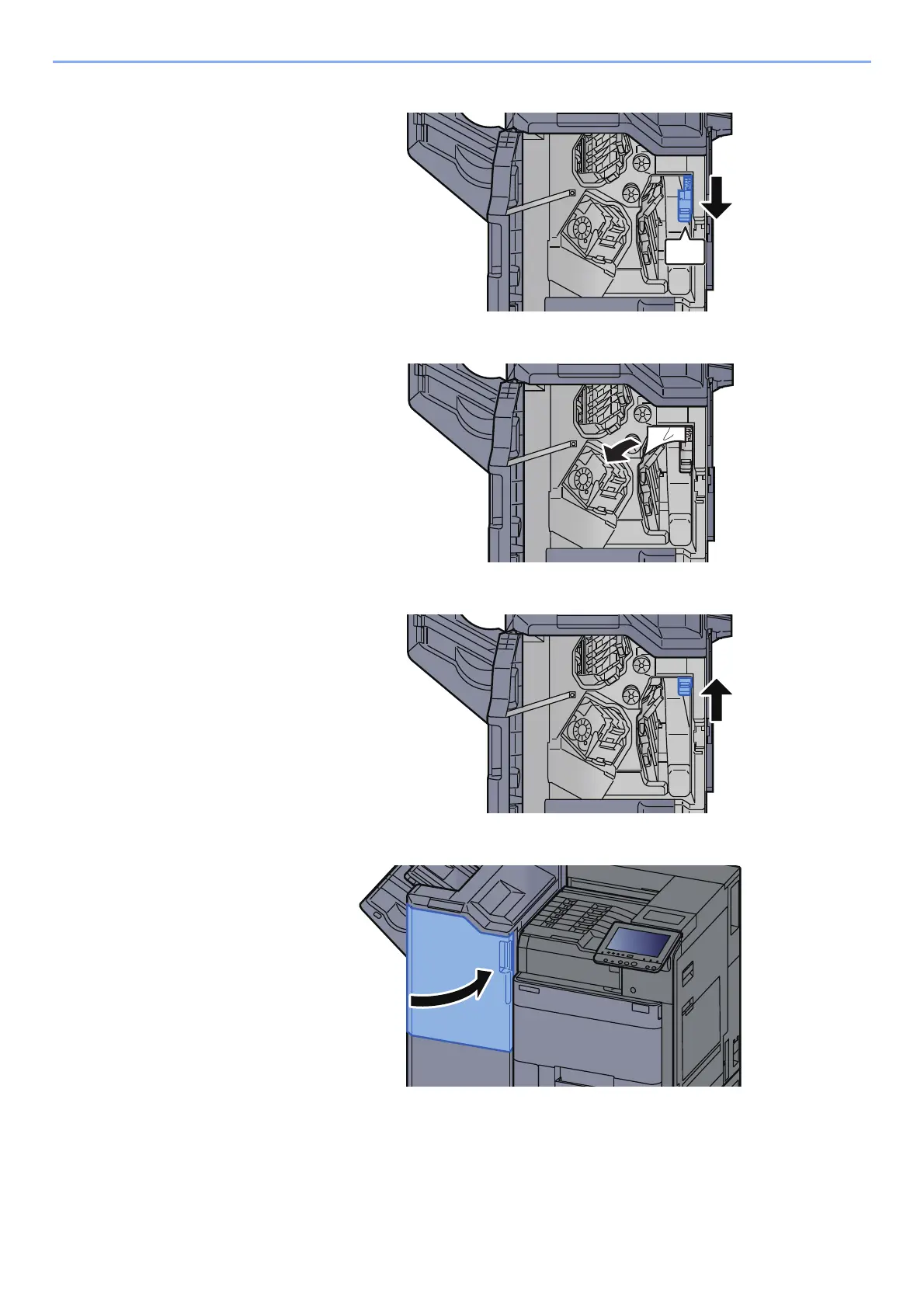

Open the conveyor guide (D1).

Remove any jammed paper.

Return the conveyor guide (D1) to the original position.

Return the cover to the original position.
