Troubleshooting > Clearing a Staple Jam

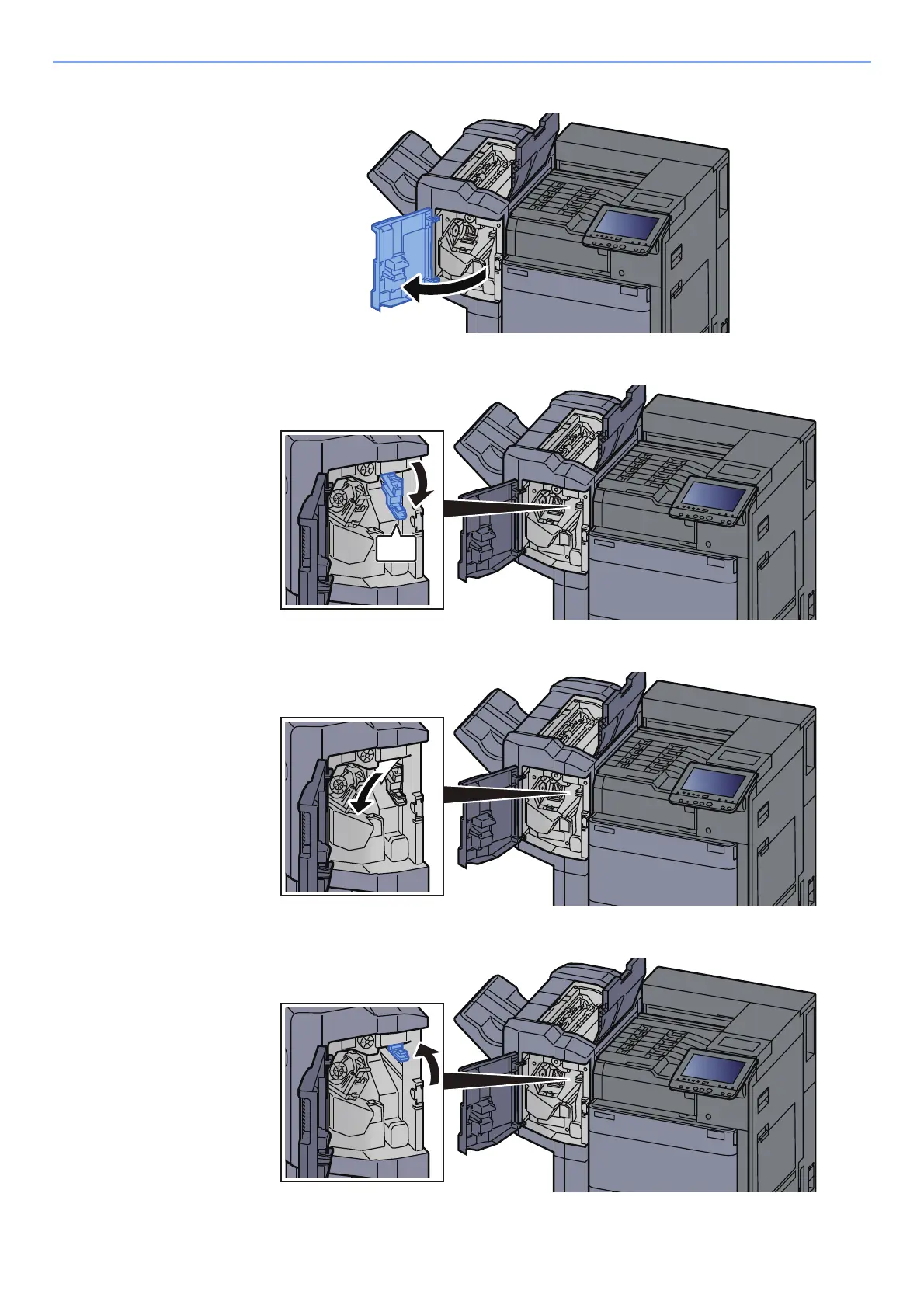

Open the finisher front cover.

Open the conveyor guide (D1).

Remove any jammed paper.

Return the conveyor guide (D1) to the original position.
