10-87

Troubleshooting > Clearing a Staple Jam

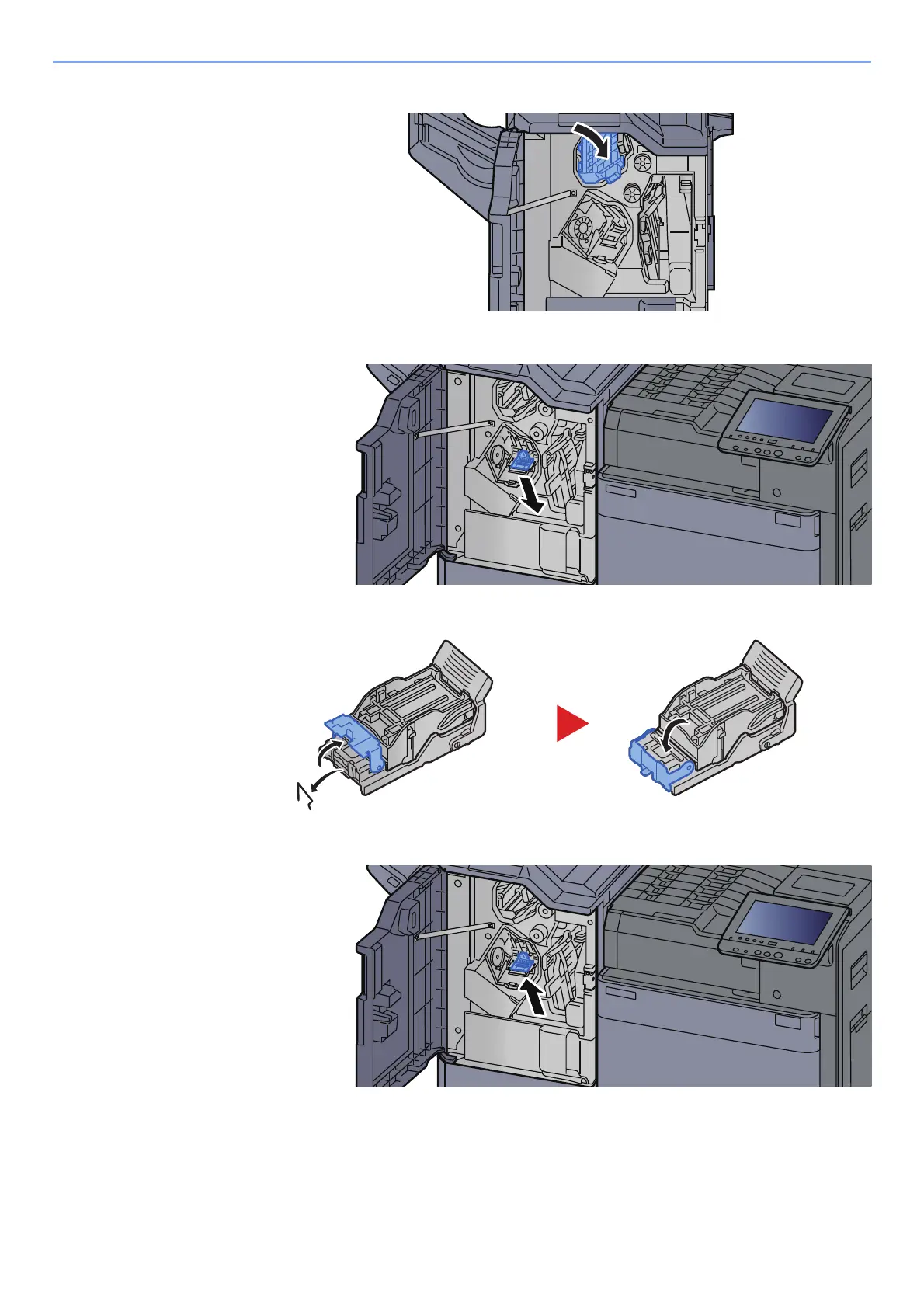

Return the conveyor guide (D4) to the original position.

Remove the Staple Cartridge Holder (A).

Remove the jammed staple.

Install the Staple Cartridge Holder (A).
