Troubleshooting > Clearing a Staple Jam

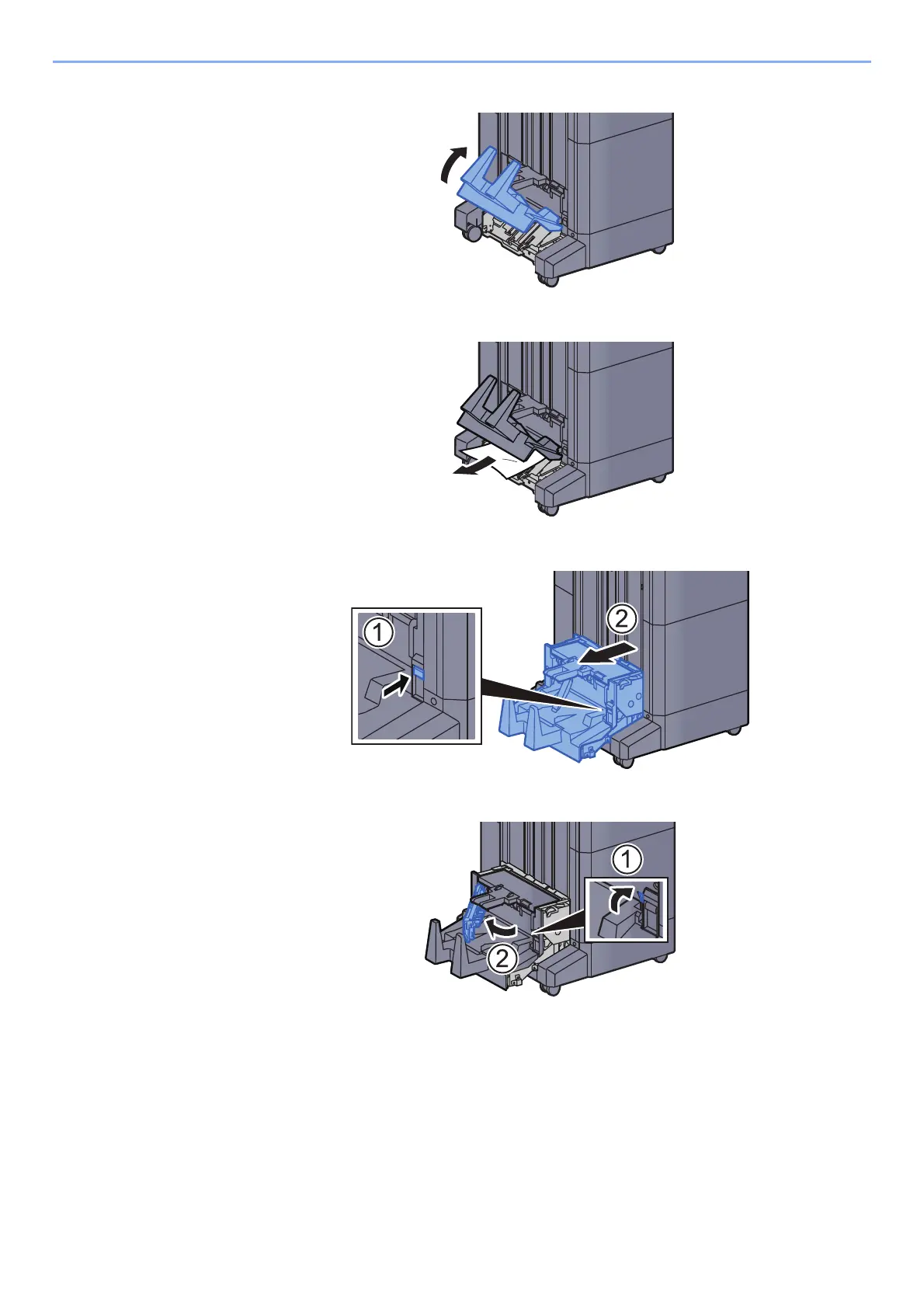

Lift the folding tray.

Remove any jammed paper.

Press the release lever to pull the folding unit out.

Open the folding unit left cover.
