Troubleshooting > Clearing a Staple Jam

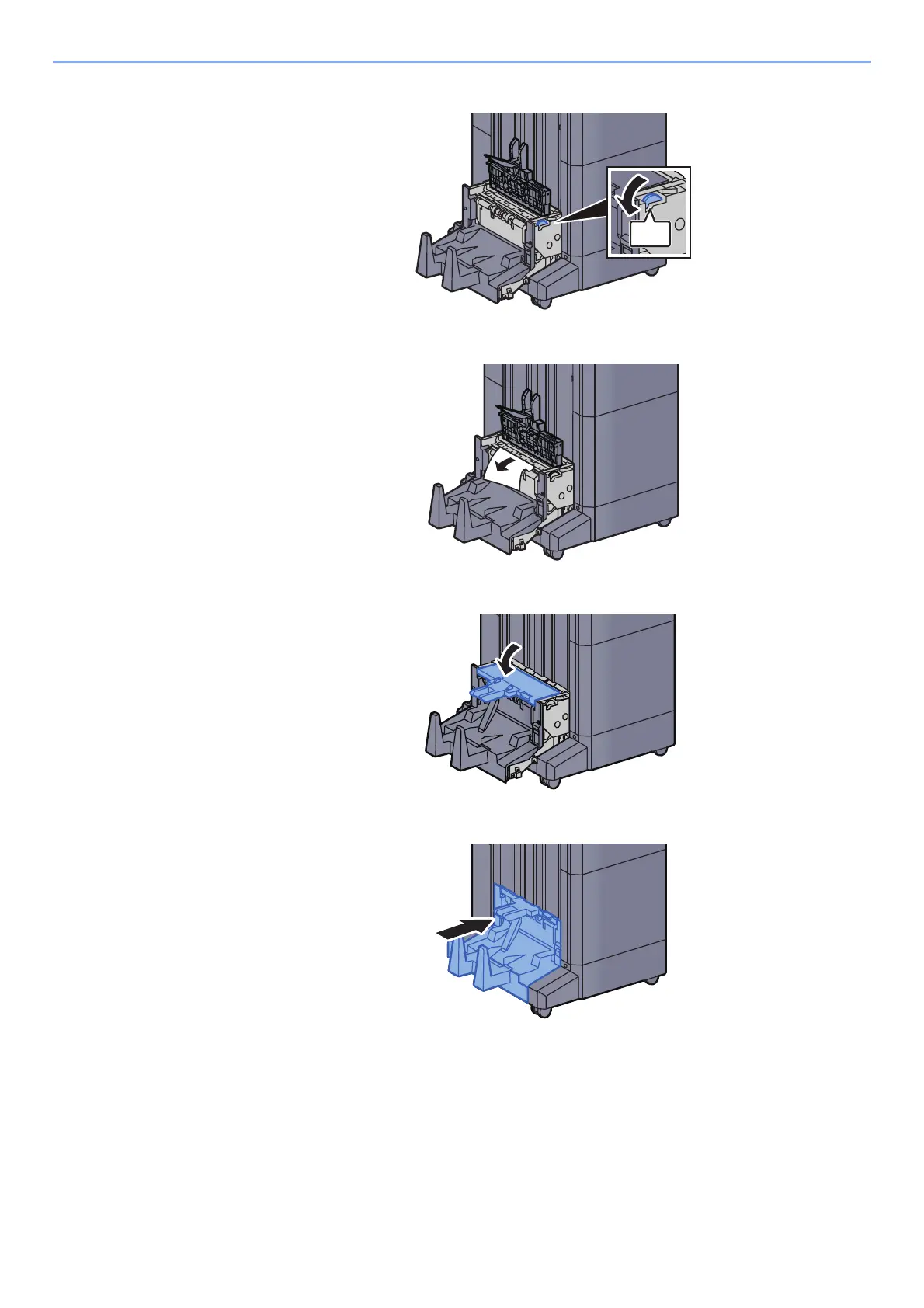

Turn dial (D9).

Remove any jammed paper.

Return the folding unit top cover to the original position.

Return the folding unit to the original position.
