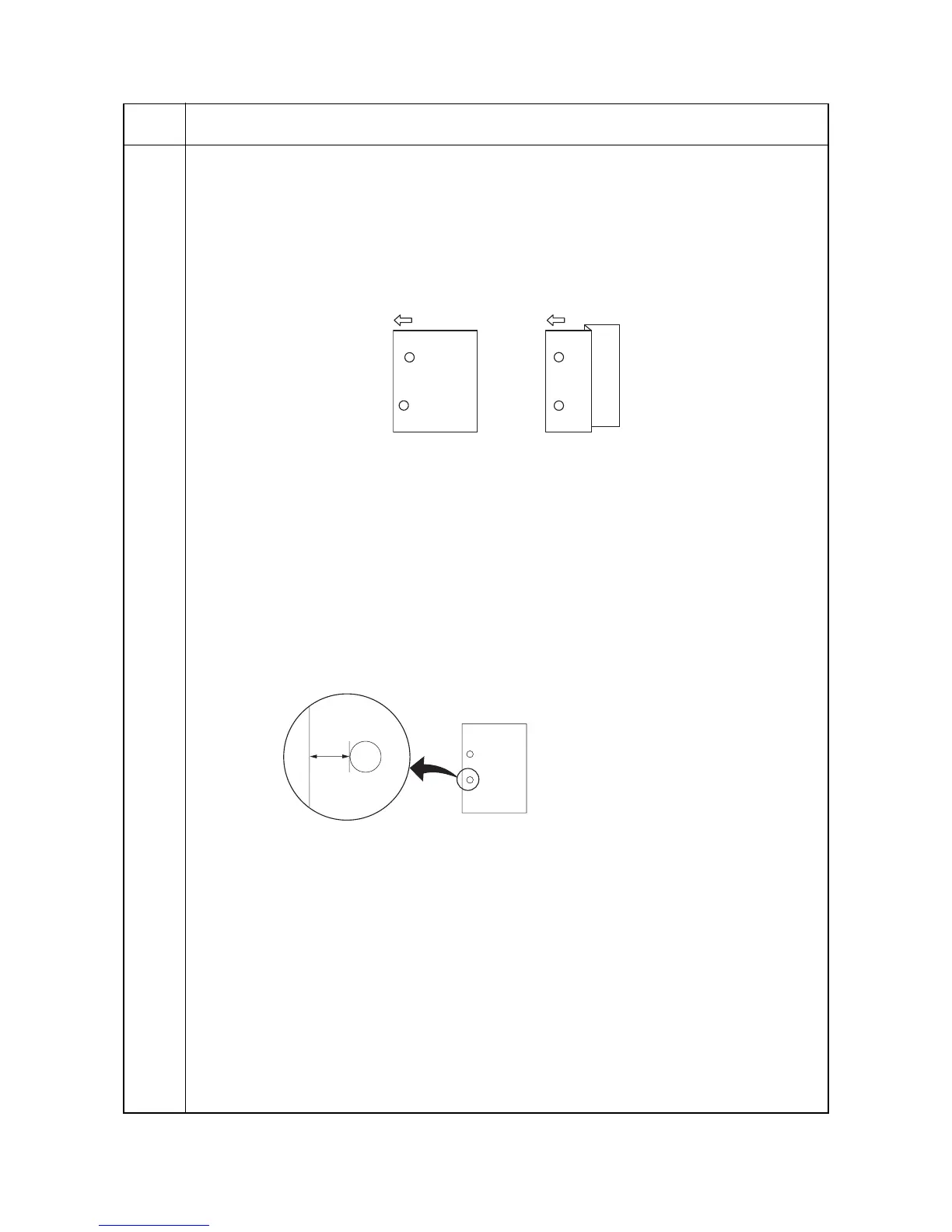

Setting: adjustment of registration stop timing
1. Select [>>Punch Reg].
2. Press the OK key. [ _ ] will blink.
3. Press the cursor right/left keys to move [ _ ] to the digit position at which the value is to be changed and
press the cursor up/down keys to change the preset value.
Setting range: -20 to 20
Initial setting: 0
Change in value per step: 1ms
If skewed paper conveying occurs (sample 1), increase the preset value. If the paper is Z-folded (sam-
ple 2), decrease the preset value.
Figure 1-3-1
4. Press the OK key. The value is set.
To keep the preset value, press the CANCEL key.
Setting: adjustment of the paper stop timing
1. Select [>>Punch Pos].
2. Press the OK key. [ _ ] will blink.
3. Press the cursor right/left keys to move [ _ ] to the digit position at which the value is to be changed and
press the cursor up/down keys to change the preset value.
Setting range: -10 to 10
Initial setting: 0
Change in value per step: 0.49mm
If the distance of the position of a punch hole is smaller than the specified value A, increase the preset
value. If the distance is larger than the value A, decrease the preset value.
Figure 1-3-2
4. Press the OK key. The value is set.
To keep the preset value, press the CANCEL key.
Maintenance
item No.
Description
Sample 1 Sample 2
A
Preset value A: 5.5
+
-
2 mm (inch)
9.5
+
-
2 mm (metric)
