Setting: adjustment of upper/lower side registration home position
1. Select [>>Width U HP] or [>>Width L HP].
2. Press the OK key. [ _ ] will blink.
3. Press the cursor right/left keys to move [ _ ] to the digit position at which the value is to be changed and
press the cursor up/down keys to change the preset value.
Adjustment of upper side registration home position
Setting range: -20 to 20
Initial setting: 0
Change in value per step: 0.1 mm
Adjustment of lower side registration home position
Setting range: -46 to 46
Initial setting: 0
Change in value per step: 0.1 mm
4. Press the OK key. The value is set.
To keep the preset value, press the CANCEL key.
Setting: adjustment of booklet stapling position
Make sure that the center folding position is correct after adjustment. If the position is not correct, execute the
adjustment of center folding position.
1. Select [>>Staple Pos 1], [>>Staple Pos 2] or [>>Staple Pos 3].
2. Press the OK key. [ _ ] will blink.
3. Press the cursor right/left keys to move [ _ ] to the digit position at which the value is to be changed and
press the cursor up/down keys to change the preset value.
Setting range: -10 to 10
Initial setting: 0
Change in value per step: 0.55 mm
When staples are placed too far right (sample 1), decrease the preset value. When staples are placed
too far left (sample 2), increase the preset value.
Reference value: within
± 2 mm

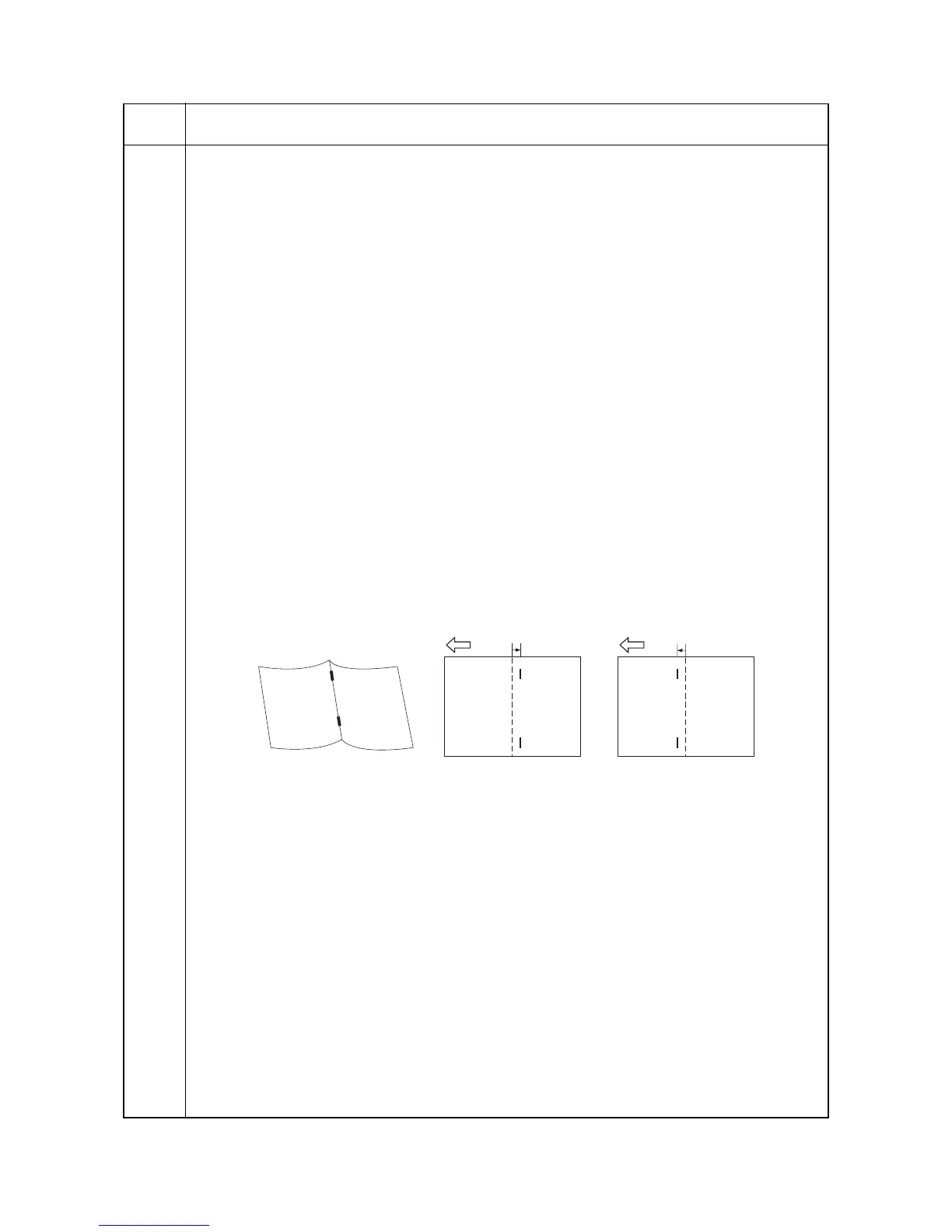

Figure 1-3-5
4. Press the OK key. The value is set.
To keep the preset value, press the CANCEL key.
Maintenance
item No.
Description
Sample 2
Sample 1
2 mm2 mm
