Setting: adjustment of center folding position
Check the booklet stapling position is correct before adjusting the center folding position.
1. Select [>>Booklet Pos 1], [>>Booklet Pos 2] or [>>Booklet Pos 3].
2. Press the OK key. [ _ ] will blink.
3. Press the cursor right/left keys to move [ _ ] to the digit position at which the value is to be changed and
press the cursor up/down keys to change the preset value.
Setting range: -10 to 10
Initial setting: 0
Change in value per step: 0.55 mm

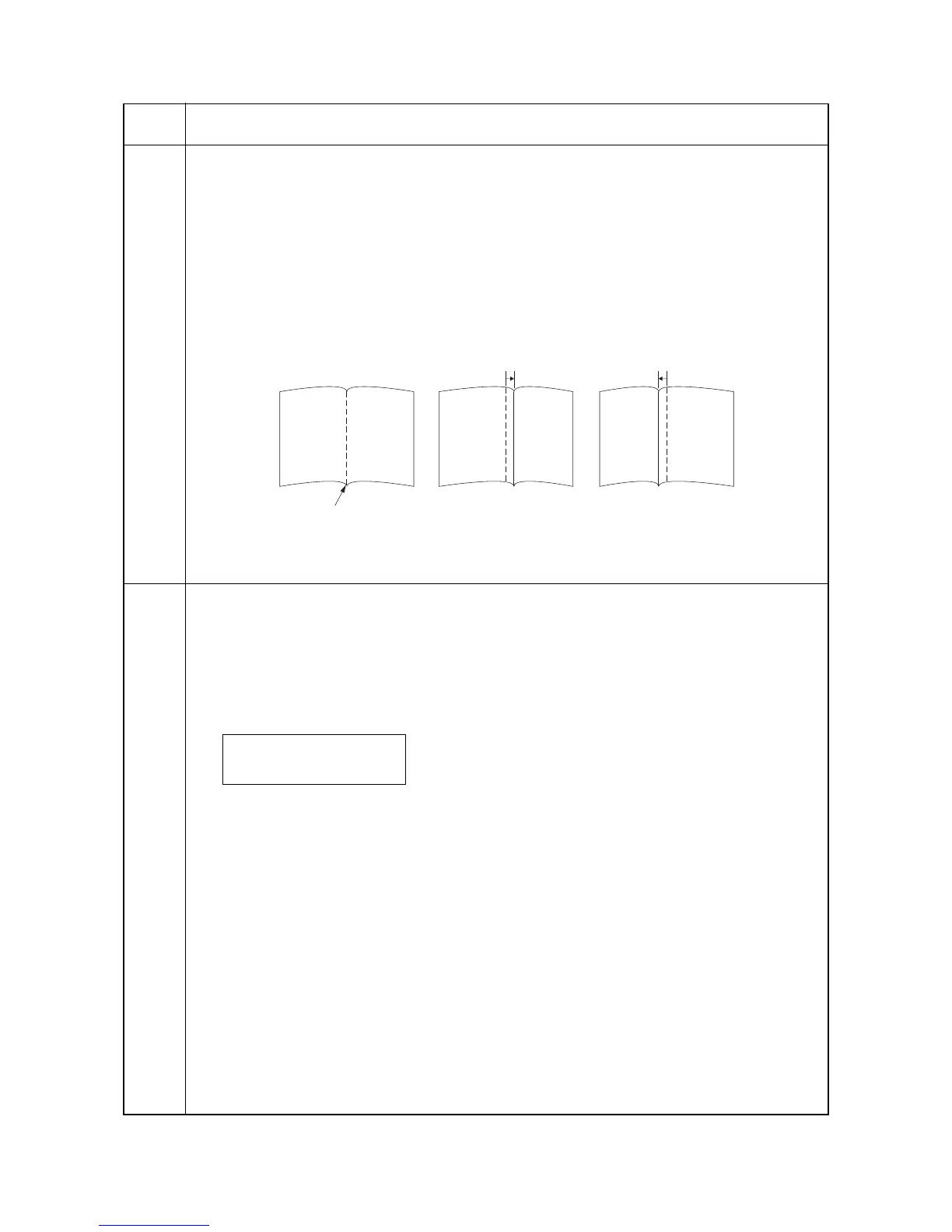

When the centerfold position too far right (sample 1), increase the preset value. When the centerfold
position too far left (sample 2), decrease the setting value.
Reference value: within
± 3 mm
Figure 1-3-6
4. Press the OK key. The value is set.
To keep the preset value, press the CANCEL key.
U391
Setting the face-up unit
Description
Sets whether or not to perform face-up output through the optional face-up unit.
Purpose
To set this mode for special users who install only the face-up unit to perform face-up output. For users who
use both the finisher and the face-up unit, do not set this mode.
Method
1. Enter the maintenance mode and press the cursor up/down keys to display [U391].
2. Press the OK key. [ ? ] will be displayed.
3. Press the cursor up/down keys to select the item.
Initial setting: Off
4. Press the OK key. The value is set.
To keep the preset value, press the CANCEL key.
Maintenance
item No.
Description
Sample 2
Sample 1
3 mm
3 mm
Center line
>Face-Up Option
[U391] ? Off
To Next Page
