2KW/2KX
1-5-11
(4) Detaching and refitting the inner cover
Procedure
1. Remove the rear upper cover, right
upper cover, left upper cover and front
cover (see page 1-5-3).
2. Remove the right rear cover, right cover
and right lower cover (see page 1-5-6).
3. Remove the left rear cover, left cover
and left lower cover (see page 1-5-9).
4. Release four hooks and then remove
the inner cover.

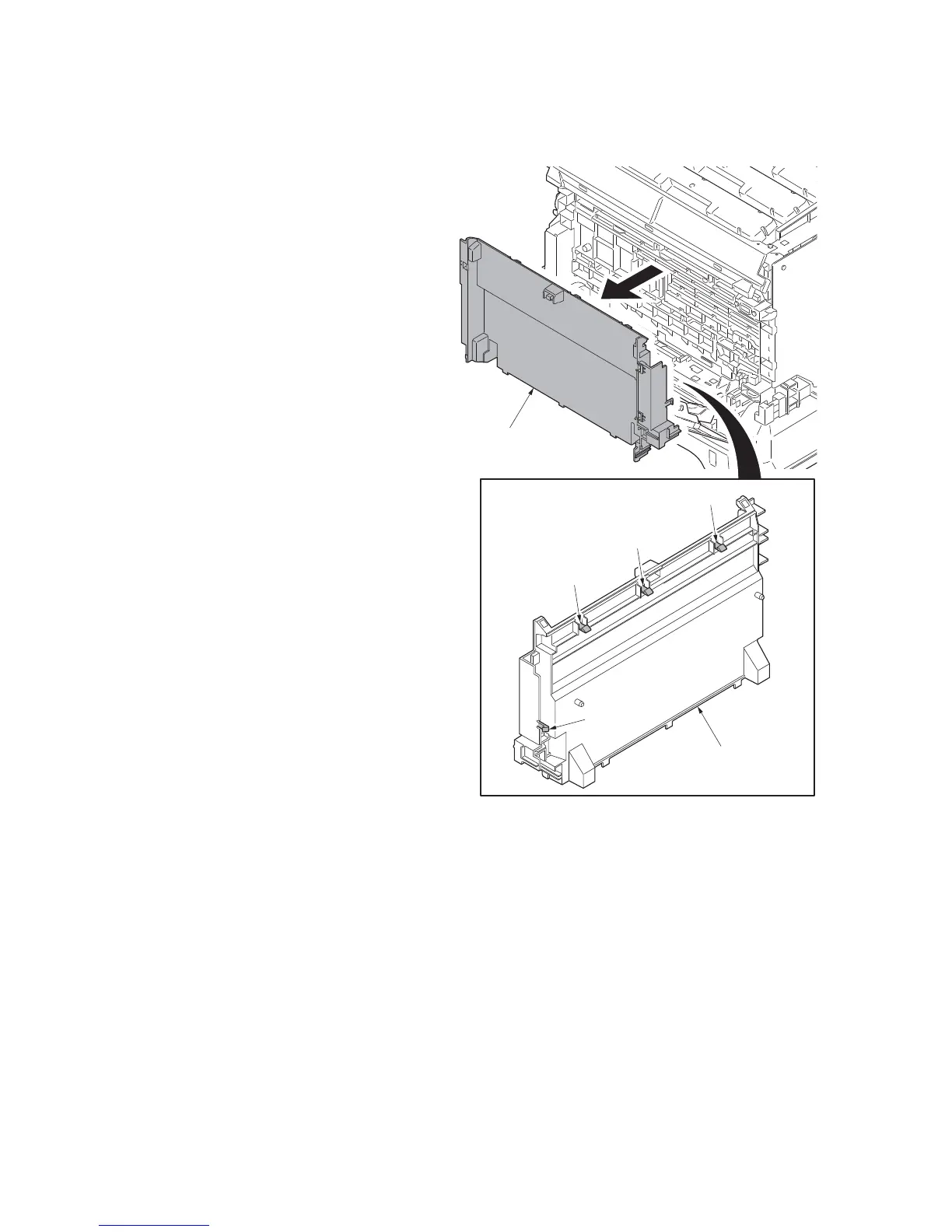

Figure 1-5-16
Inner cover
Inner cover
Hook
Hook
Hook
Hook
