Kyocera FS-C2026MFP Service Manual

2KW/2KX
2-1-1
2-1 Mechanical Construction
2-1-1 Paper feed/conveying section
Paper feed/conveying section consists of the paper feed unit that feeds paper from the cassette and the MP
tray paper feed unit that feeds paper from the MP tray, and the paper conveying section that conveys the fed
paper to the transfer/separation section.
(1) Cassette paper feed section
The cassette can contain 250 sheets. The sheet from the cassette is pulled out by rotation of the pickup roller
and sent to the paper conveying section by rotation of the paper feed roller. Also the retard roller prevents mul-
tiple feeding of paper.

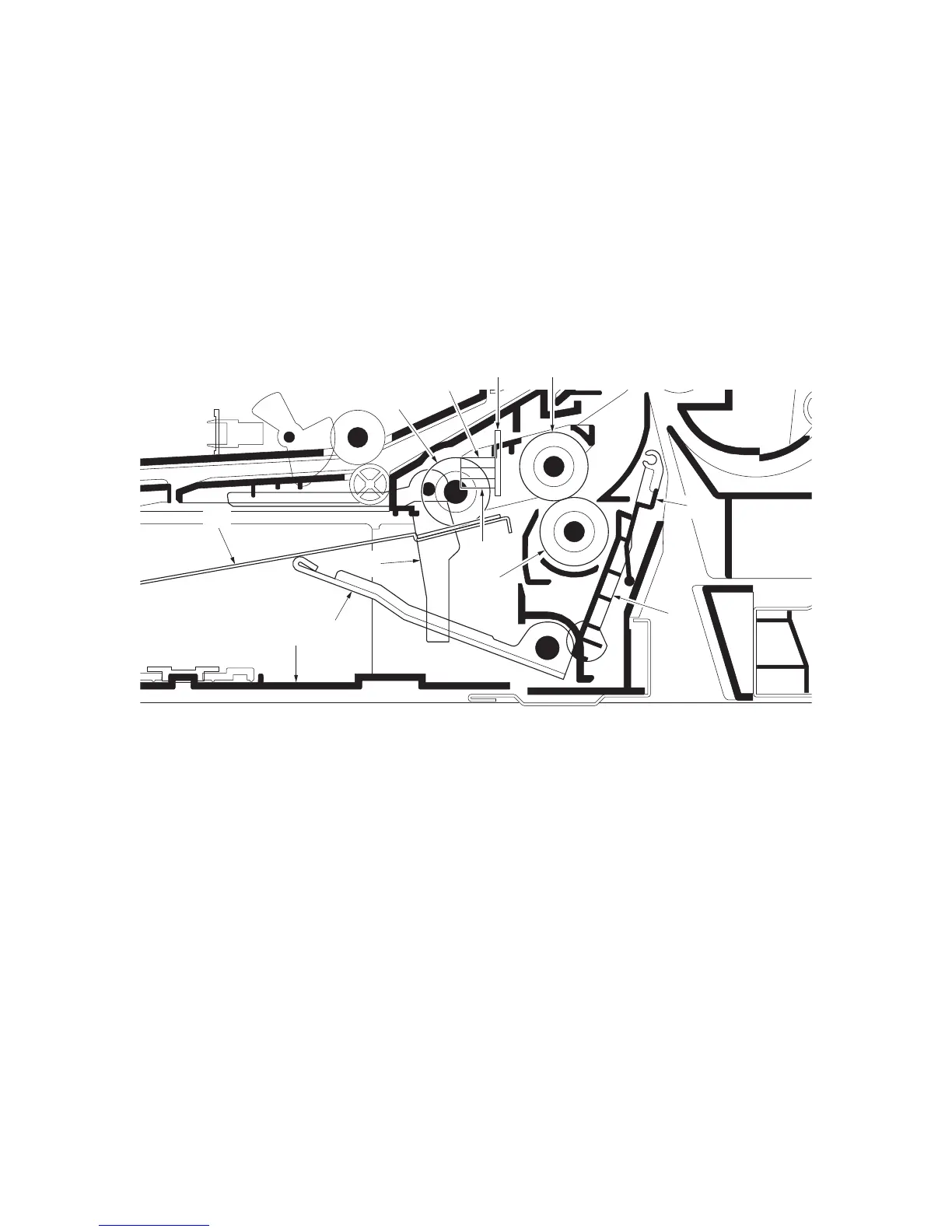

Figure 2-1-1 Cassette paper feed section
1
10
7
11
3
5
4
9
12
2
8
6
1. Pickup roller
2. Paper feed roller
3. Retard roller
4. Retard cover
5. Paper hook
6. Cassette base
7. Bottom plate
8. Lift work plate
9. Paper sensor (PS)
10. Actuator (paper sensor)
11. Lift sensor (LS)
12. Cassette PWB (CPWB)

Kyocera FS-C2026MFP Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	9600 x 600 DPI
Time to first page (black, normal)	9 s
Time to first page (color, normal)	10 s
Print speed (black, normal quality, A4/US Letter)	26 ppm
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	999 copies
Total output capacity	- sheets
Maximum input capacity	50 sheets
Internal memory	768 MB
Processor family	PowerPC
Card reader integrated	No
Sound power level (standby)	30 dB
Sound pressure level (printing)	50 dB
Dimensions (WxDxH)	514 x 550 x 580 mm
Power requirements	AC 220 - 240 V, 50/60 Hz
Networking features	Fast Ethernet
All-in-one functions	Copy, Scan
Maximum internal memory	1.75 GB
Color all-in-one functions	copy, print
Compatible operating systems	Windows, Mac OS X 10.2 +, Unix, Linux
Maximum print size	216 x 356 mm
Paper tray media types	Envelopes, Plain paper
Non-ISO print media sizes	Folio
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Power consumption (standby)	79 W
Power consumption (average operating)	466 W
Certification	TÜV/GS, CE
Maximum duty cycle	65000 pages per month
Grayscale levels	256
Image formats supported	JPG, TIF
Sustainability certificates	ENERGY STAR
Market positioning	Business
