Kyocera FS-C2026MFP

2KW/2KX
2-1-21
2-1-7 Eject/Feedshift section
The paper eject/feedshift section consists of the conveying path which sends the paper that has passed the
fuser section to the top tray or the duplex conveying section.

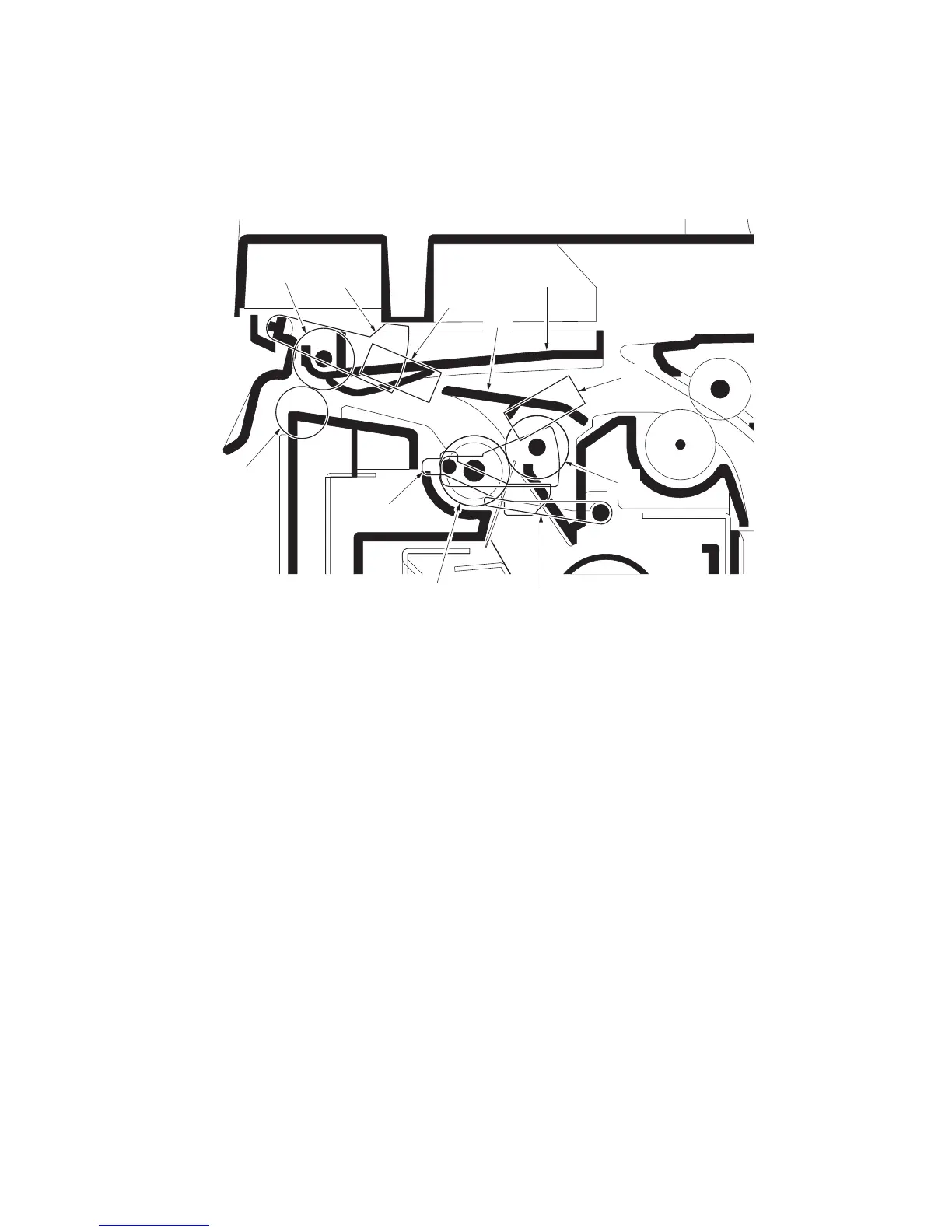

Figure 2-1-22 Eject/Feed shift section
2
1
7
11
8
3
4
6
10
5
9
1. Eject roller
2. Eject pulley
3. Eject roller
4. Eject pulley
5. Upper eject guide
6. Change guide
7. Eject sensor (ES)
8. Actuator (eject sensor)
9. Actuator (eject sensor)
10. Paper full sensor
11. Actuator (paper full sensor)
