Kyocera FS-C2026MFP

2KW/2KX
1-5-51
1-5-11 Document processor
(1) Detaching and refitting the document processor
Procedure
1. Remove the rear upper cover, right
upper cover, left upper cover and front
cover (see page 1-5-3).
2. Remove left and right pins and then
close the top tray.

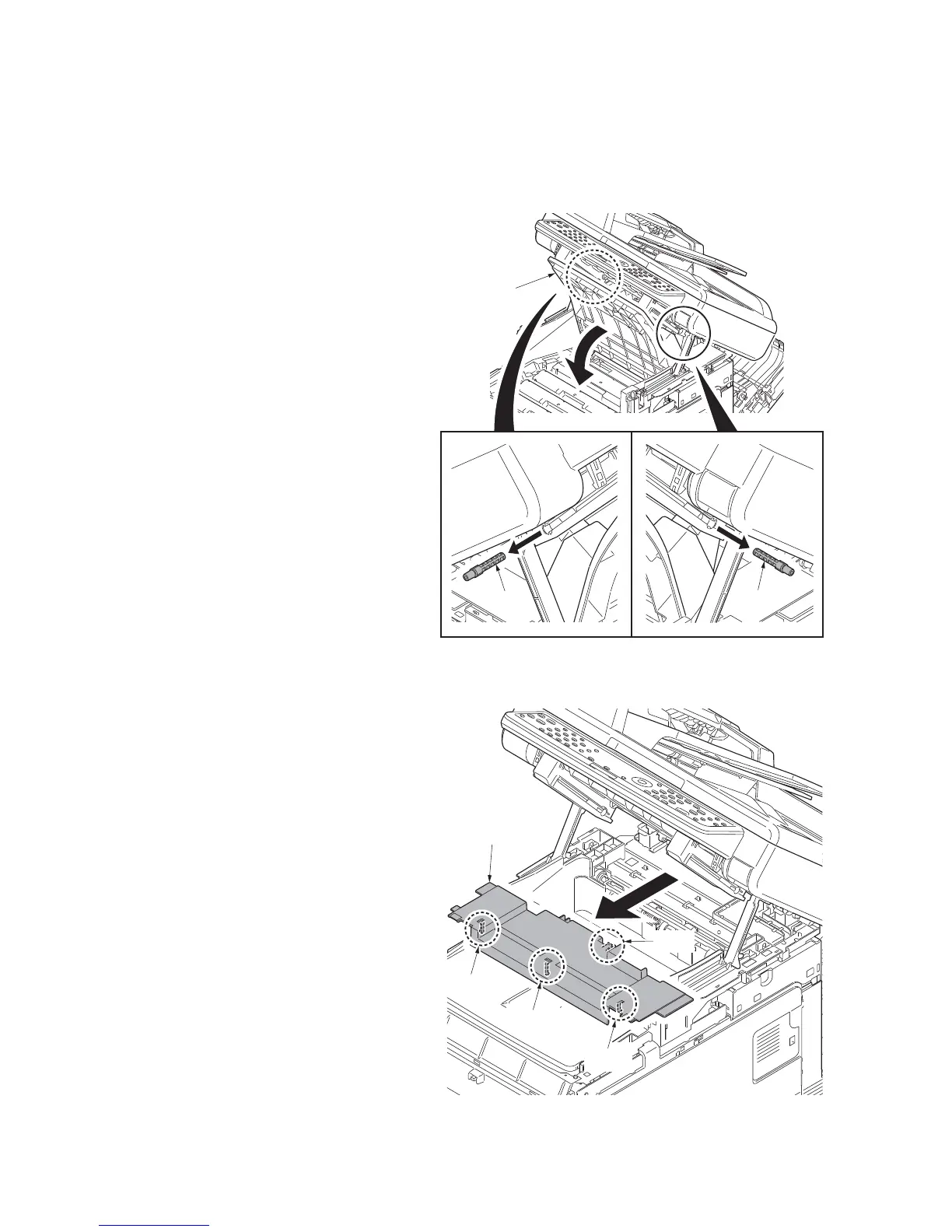

Figure 1-5-77
3. Release four hooks and then remove
the upper middle cover.
Figure 1-5-78
Pin
Top tray
Pin
Upper middle
cover
Hook
Hook
Hook
Hook
