Kyocera FS-C2026MFP

2KW/2KX
1-5-14
(2) Detaching and refitting the paper feed roller unit
Procedure
1. Remove the retard roller unit (see page
1-5-12).
2. Turn forward the lever of the feed pin to
release the lock.
3. Slide the feed pin.

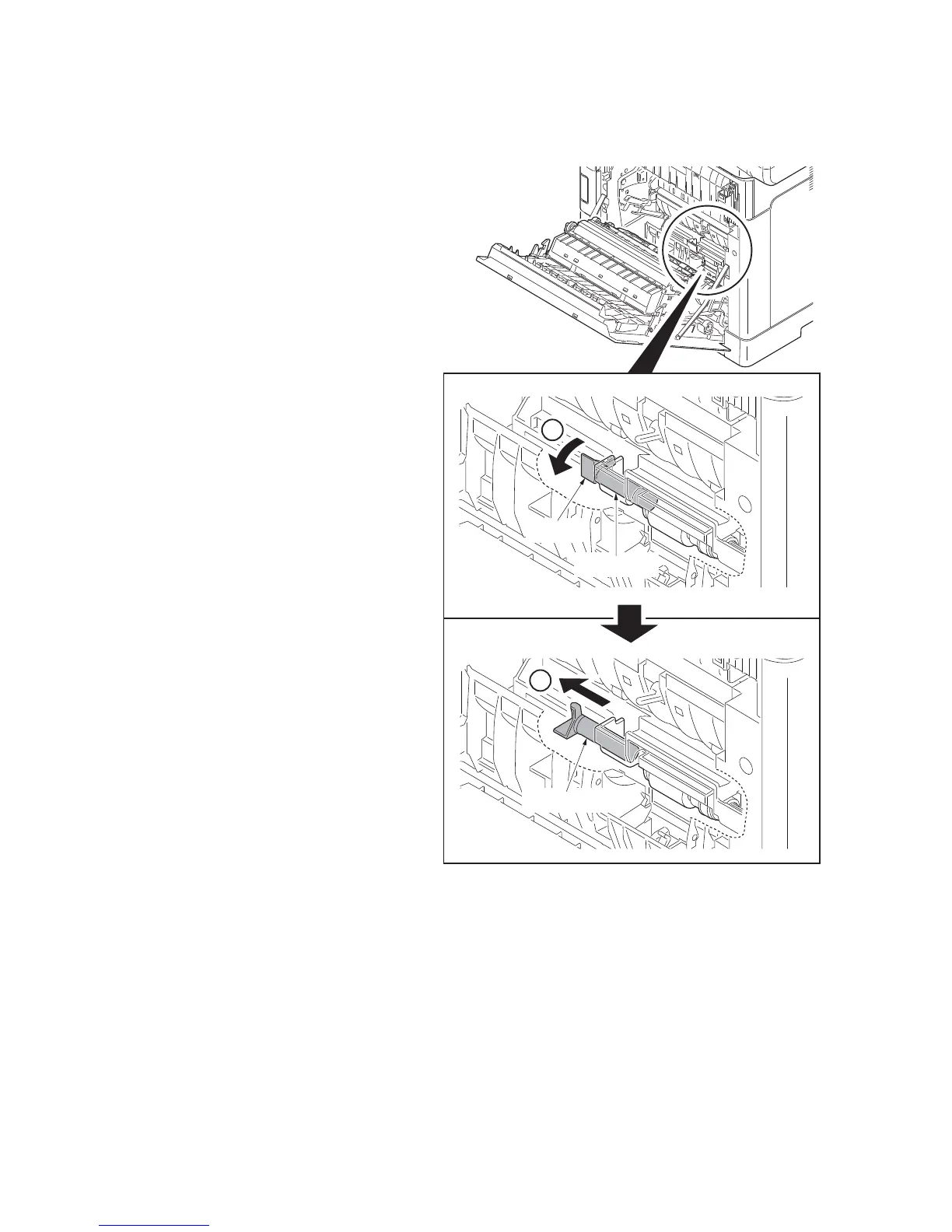

Figure 1-5-20
Feed pin
Feed pin
Lever
1
2
