Kyocera FS-C2026MFP

2KW/2KX
1-5-60
(4) Detaching and refitting the DP drive PWB
Procedure
1. Remove the DP rear cover (see page 1-
5-55).
2. Remove all connectors from DP drive
PWB.
3. Remove the screw and then remove the
DP drive PWB.
4. Check or replace the DP drive PWB
and refit all the removed parts.

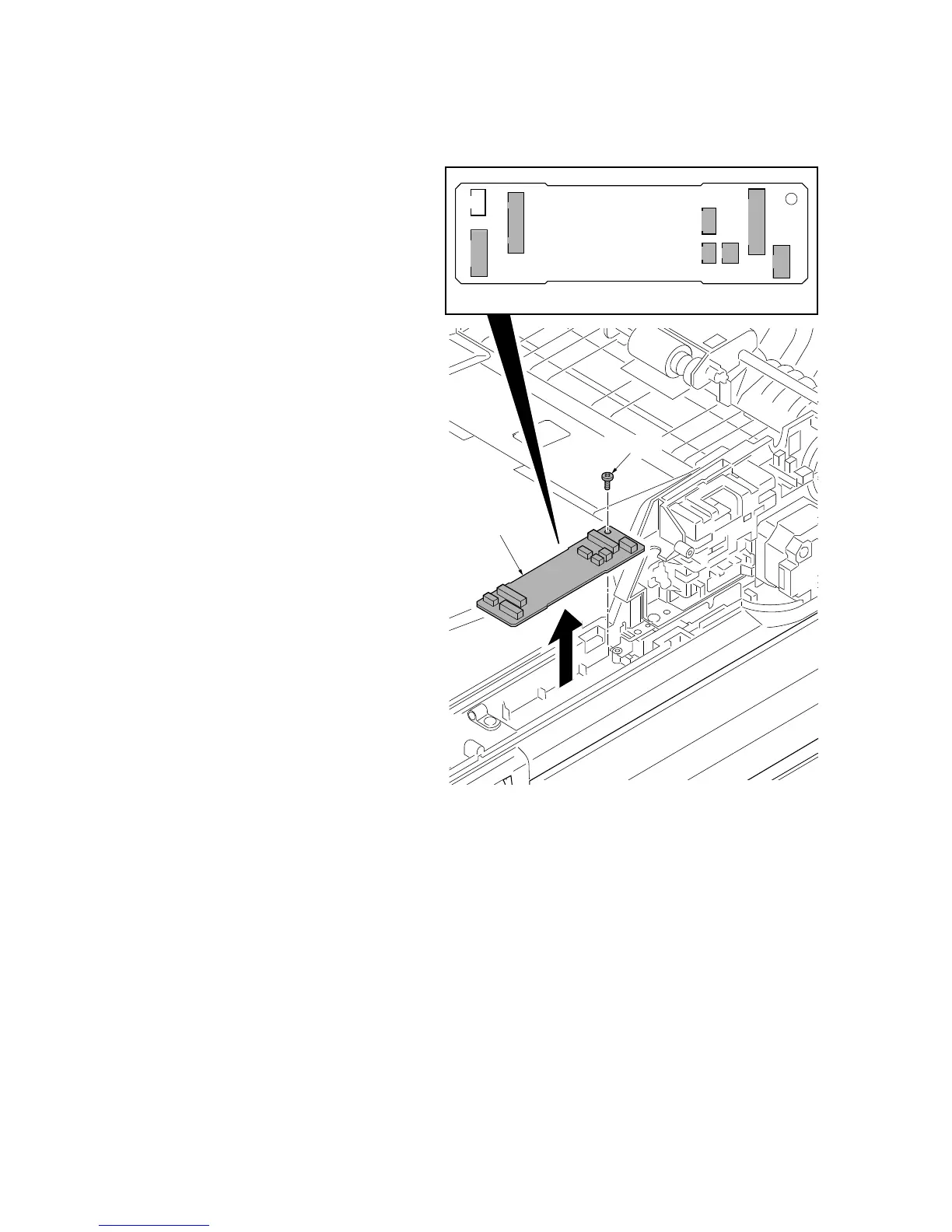

Figure 1-5-92
Screw
YC1
YC8
YC6 YC4
YC2
YC3
YC5
DP drive PWB
DP drive
PWB
