(3) Detaching and refitting the main PWB
Procedure
1. Remove the FAX control PWB, if
installed (see page 1-5-35).
2. Remove the right rear cover, right cover
and right lower cover (see page 1-5-6).
3. Remove three screws and then remove
the power source shield.
Screws A and B are unidentical, there-
fore, do not mix up.

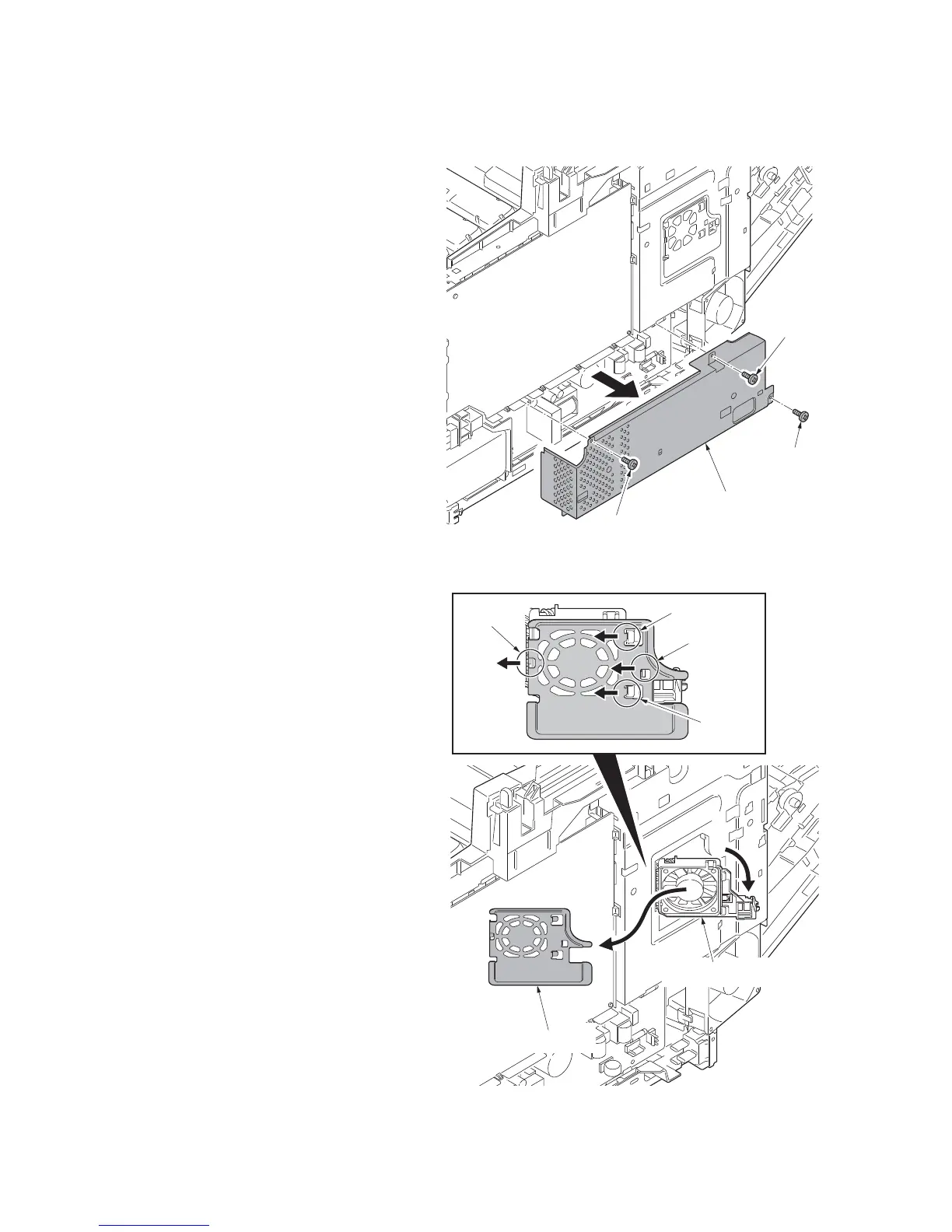

Figure 1-5-41
4. Open the fan bracket.
5. Slide the fan plate. Release four hooks
and then remove the fan plate.
Figure 1-5-42
Power source shield
Screw B
Screw A
Screw A
Fan plate
Fan bracket
Hook
Hook
Hook
Hook
