2KW/2KX
1-5-42
(5) Detaching and refitting the middle transfer drive unit
Procedure
1. Remove the intermediate transfer unit
(see page 1-5-21).
2. Remove the rear upper cover, right
upper cover, left upper cover and front
cover (see page 1-5-3).
3. Remove the left rear cover and left
cover (see page 1-5-9).
4. Remove the fuser pressure drive unit
(see page 1-5-40).

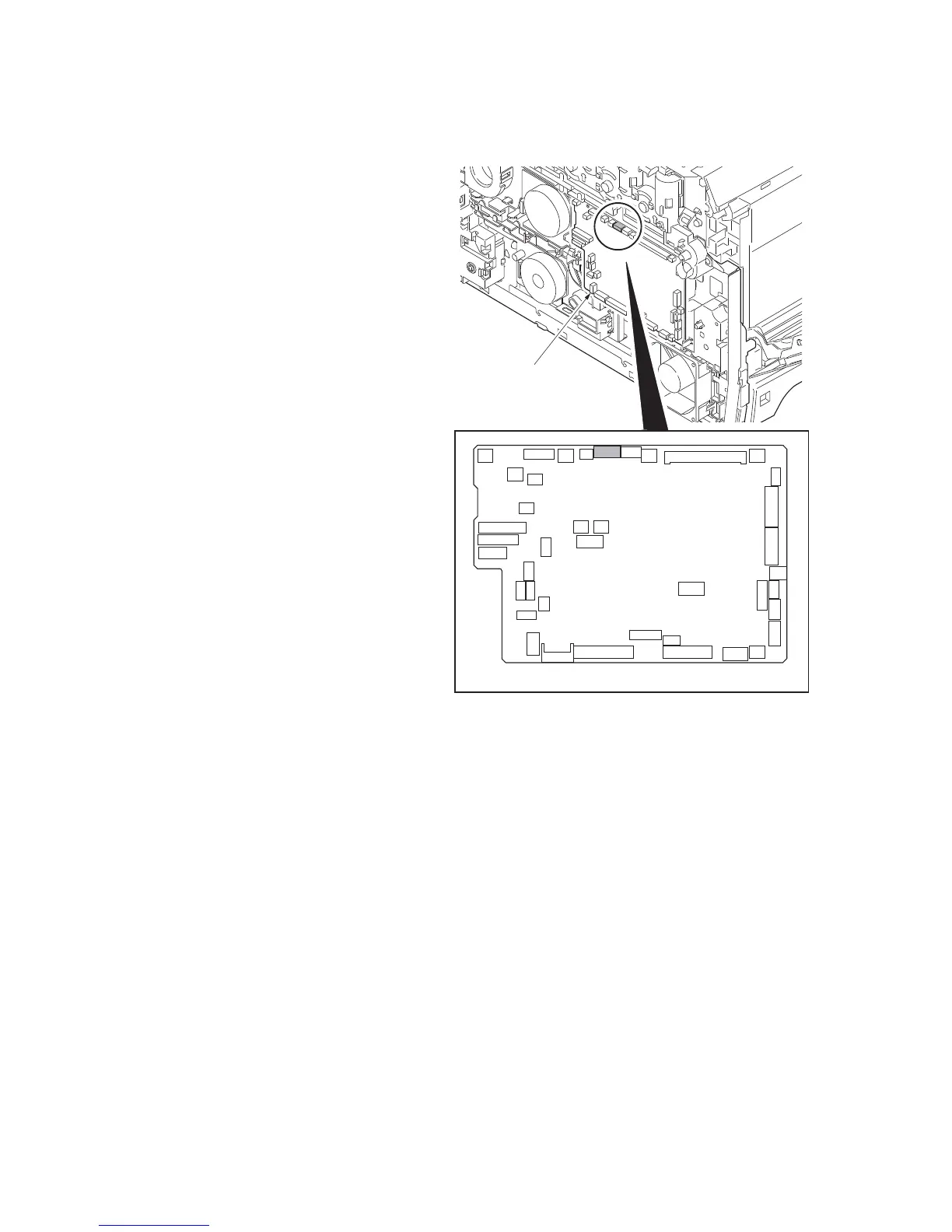

5. Remove connector (YC15) from engine
PWB.
Figure 1-5-62
YC15
Engine PWB
Engine PWB
To Next Page
