5. Remove the developing fan unit (see
page 1-5-37).
6. Remove three screws.
7. Release two hooks remove the fuser
pressure drive unit.
8. Check or replace the fuser pressure
drive unit and refit all the removed
parts.

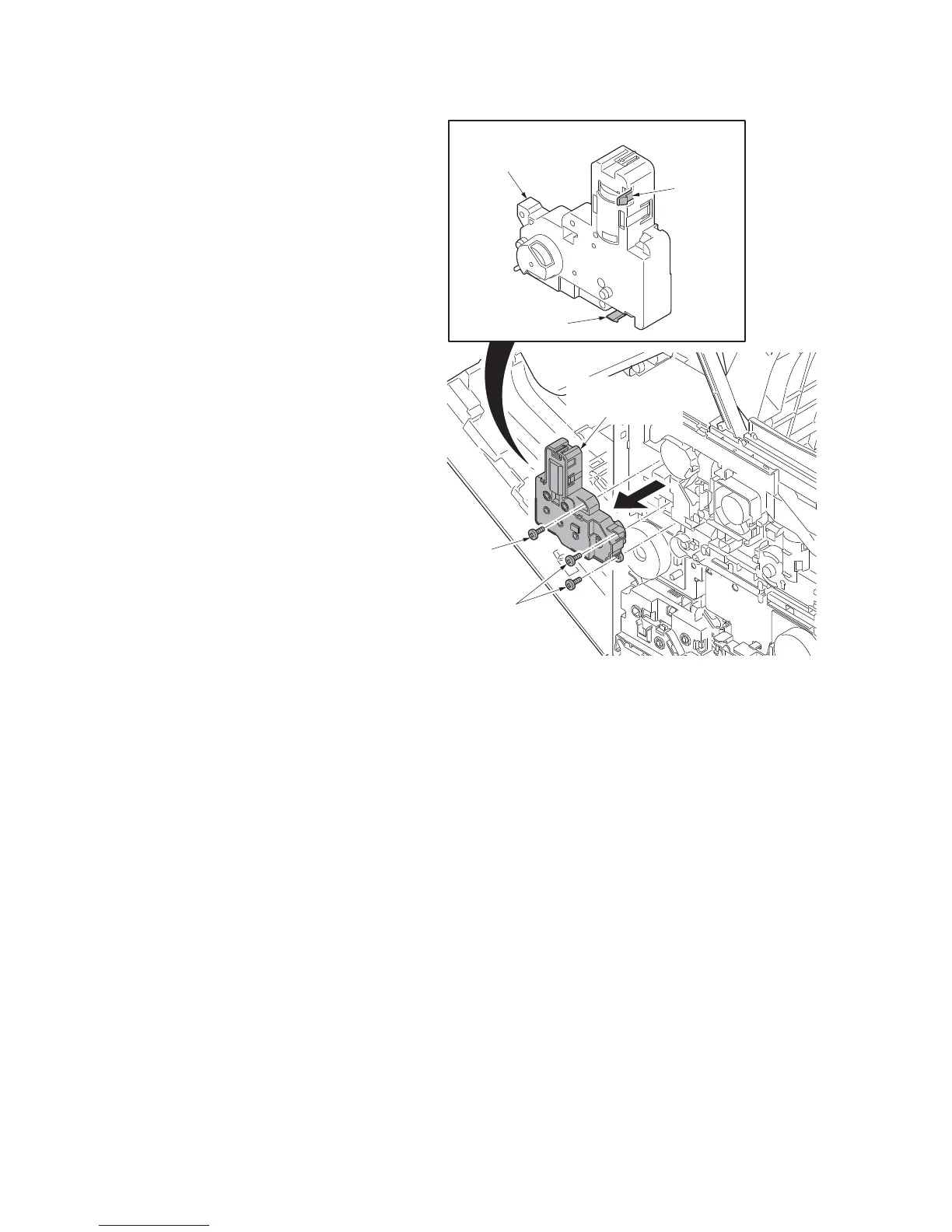

Figure 1-5-61
Screws
Screw
Hook
Hook
Fuser pressure
drive unit
Fuser pressure
drive unit
