Kyocera FS-C2026MFP

2KW/2KX
2-2-8
(4) Others

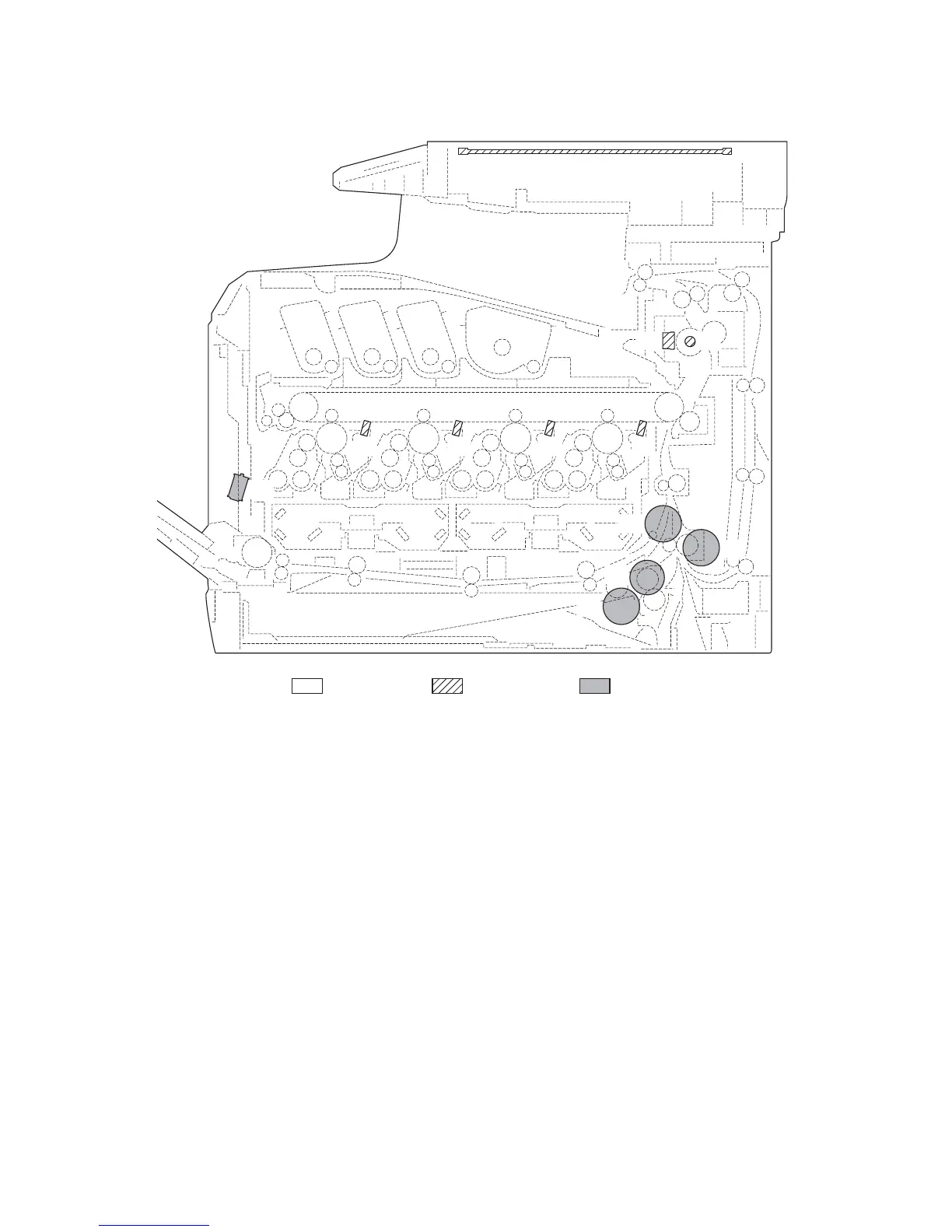

Figure 2-2-4 Others
1. Paper feed clutch (PFCL) ..................... Primary paper feed from cassette.
2. MP feed clutch (MPFCL)....................... Controls the drive of MP conveying section.
3. Registration clutch (RCL)...................... Controls the secondary paper feed.
4. Middle clutch (MCL) .............................. Controls the drive of conveying section.
5. MP solenoid (MPSOL) .......................... Controls the MP bottom plate.
6. Cleaning lamp K (CL-K) ........................ Eliminates the residual electrostatic charge on the drum (black).
7. Cleaning lamp M (CL-M)....................... Eliminates the residual electrostatic charge on the drum
(magenta).
8. Cleaning lamp C (CL-C)........................ Eliminates the residual electrostatic charge on the drum (cyan).
9. Cleaning lamp Y (CL-Y) ........................ Eliminates the residual electrostatic charge on the drum (yellow).
10. Fuser heater (FH) ................................. Heats the heat roller.
11. Fuser thermal cutout ............................. Prevents overheating of the heat roller.
12. Exposure lamp (EL) .............................. Exposes originals.
1
2
3
4
9 8 7
12
11 10
6
5
Machine insideMachine right Machine left
