(5) Document processor

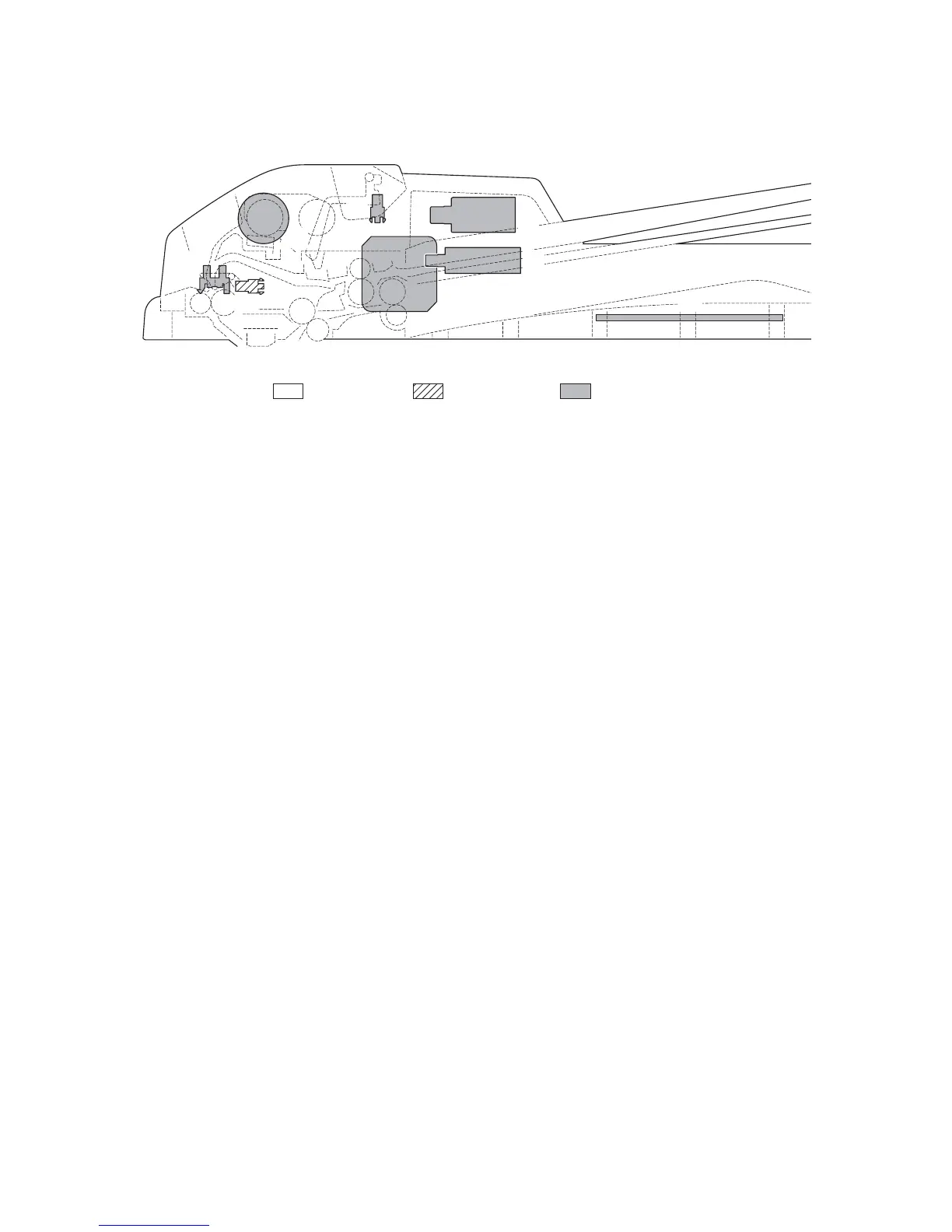

Figure 2-2-5 Document processor
1. DP drive PWB (DPDPWB ..................... Consists the solenoids and clutch driver circuit and wiring relay
circuit.
2. DP original sensor (DPOS) ................... Detects the presence of an original.
3. DP timing sensor (DPTS)...................... Detects the original scanning timing.
4. DP open/close sensor (DPOCS)........... Detects the opening/closing of the DP.
5. DP paper feed motor (DPPFM)............. Drives the original feed section.
6. DP paper feed clutch (DPPFCL)........... Controls the drive of the DP forwarding pulley and DP feed pulley.
7. DP switchback solenoid (DPSBSOL).... Operates the switchback guide.
8. DP pressure solenoid (DPPRSOL) ....... Operates the switchback pulley.
1
5
7
2
6
3
4
8
Machine insideMachine right Machine left
