Kyocera FS-C2026MFP - Detaching and Refitting the DP Separation Pad

2KW/2KX
1-5-59
(3) Detaching and refitting the DP separation pad
Procedure
1. Remove the DP paper feed pulley unit
(see page 1-5-55).
2. Remove the DP separation pad.
3. Check or replace the DP separation
pad and refit all the removed parts.

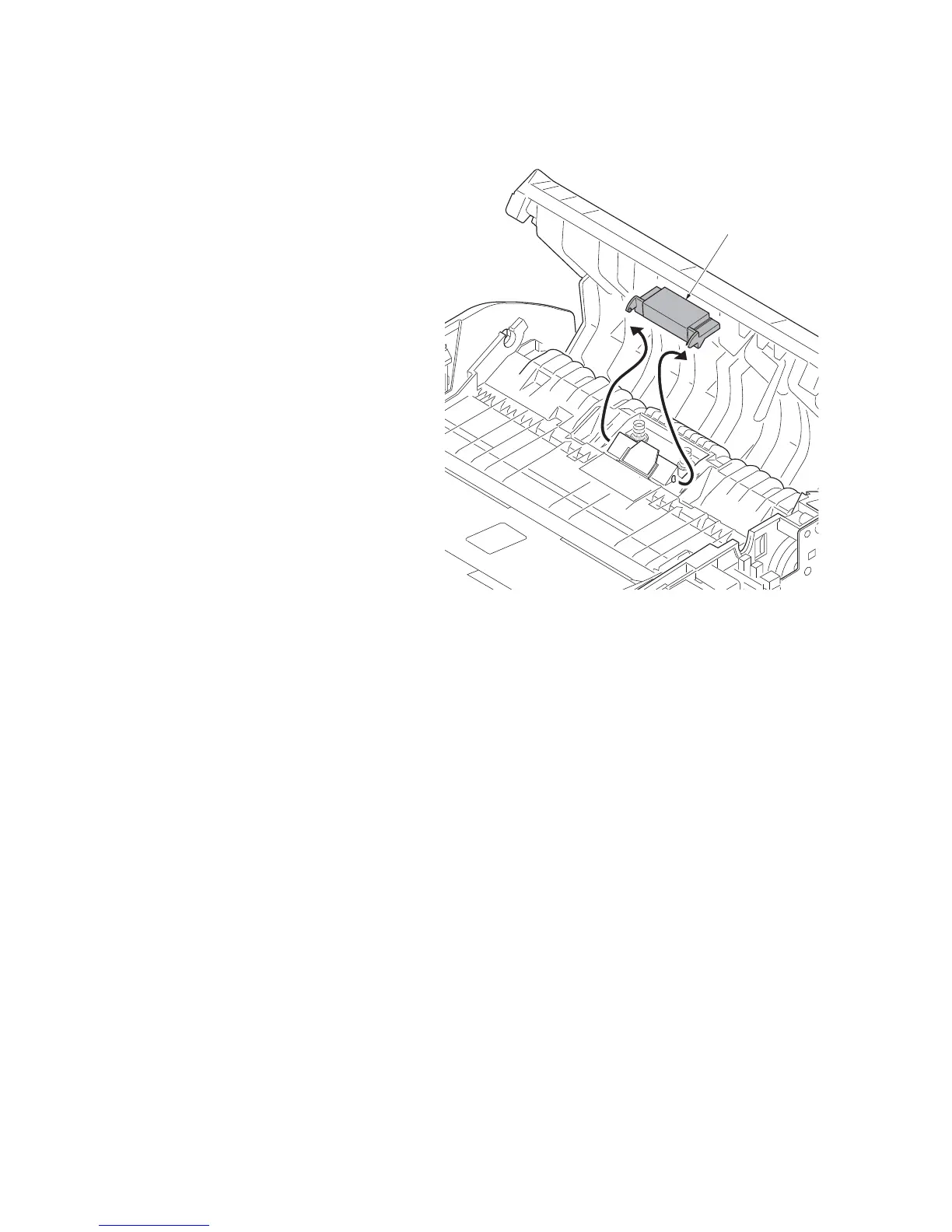

Figure 1-5-91
DP separation pad
