Kyocera FS-C2026MFP

2KW/2KX
1-1-10

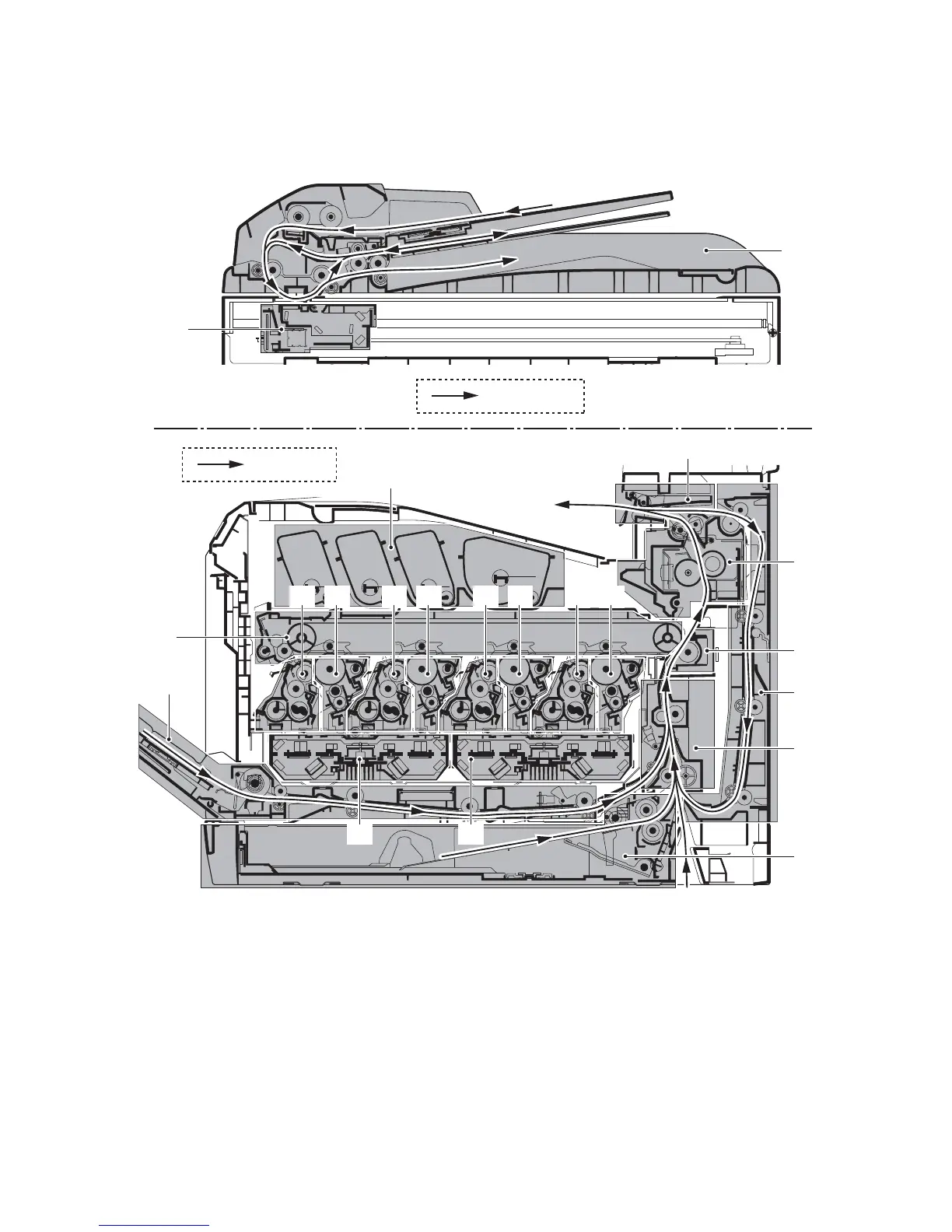

1-1-3 Machine cross section
Figure 1-1-5
13
15
20
9
5
14
2
18
17
21
19
3
1
16
12
4
8 11 7 10 6
Paper path
Original path
1. Cassette paper feed section
2. MP tray paper feed section
3. Paper conveying section
4. Laser scanner unit KM
5. Laser scanner unit CY
6. Drum unit K
7. Drum unit M
8. Drum unit C
9. Drum unit Y
10. Developing unit K
11. Developing unit M
12. Developing unit C
13. Developing unit Y
14. Toner container section
15. Primary transfer section
16. Secondary transfer/Separa-
tion sections
17. Fuser section
18. Eject/Feed shift sections
19. Duplex section
20. Image scanner unit
21. Document processor
