2KW/2KX
1-5-45
7. Remove the right rear cover, right cover
and right lower cover (see page 1-5-6).
8. Remove the controller shield (see page
1-5-29).
9. Remove two connectors (YC38, YC40)
from main PWB.

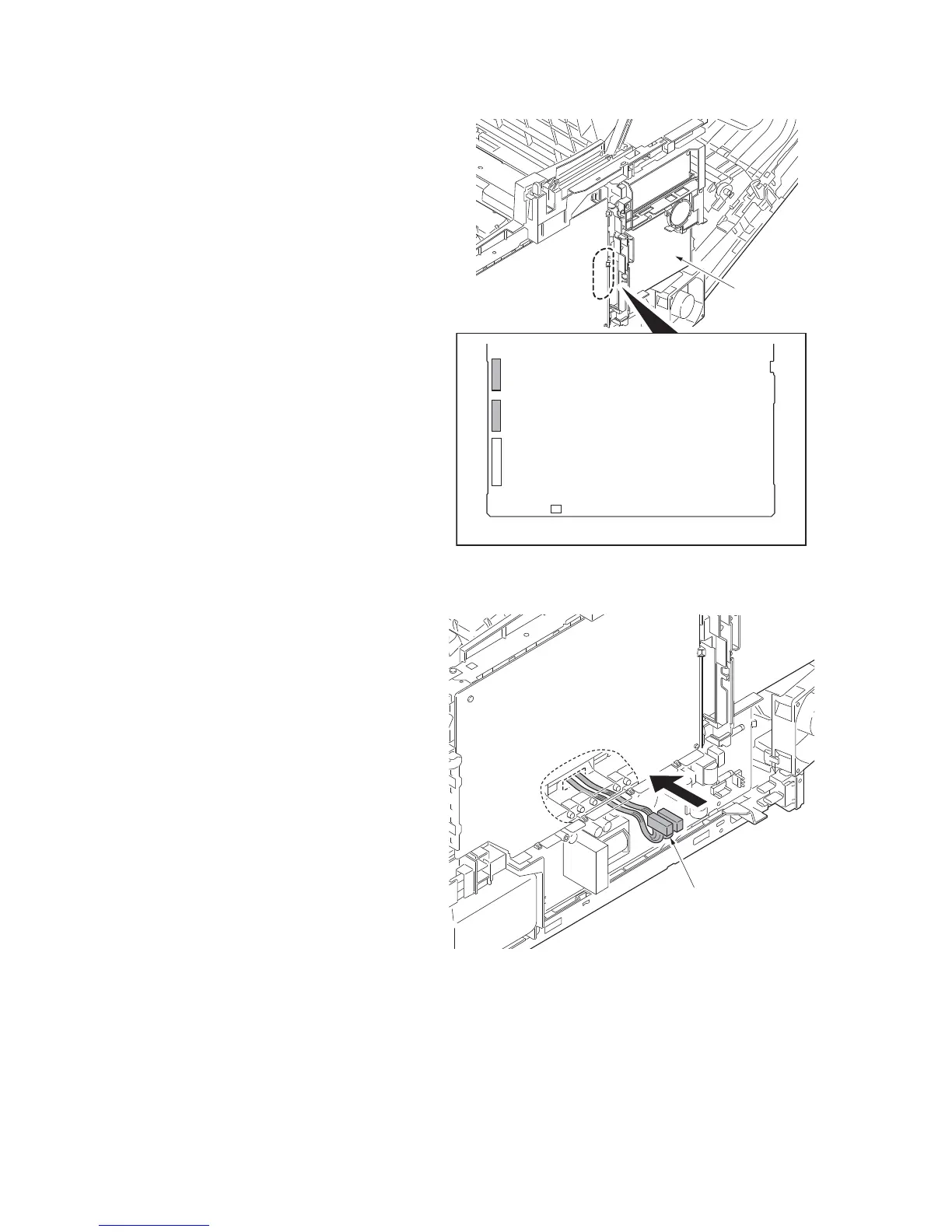

Figure 1-5-67
10. Draw two connectors (YC38, YC40)
into the machine inside.
Figure 1-5-68
YC40
YC38
Main PWB
Main PWB
Connectors
(YC38,YC40)
To Next Page
