5. Remove the stop ring and bush.

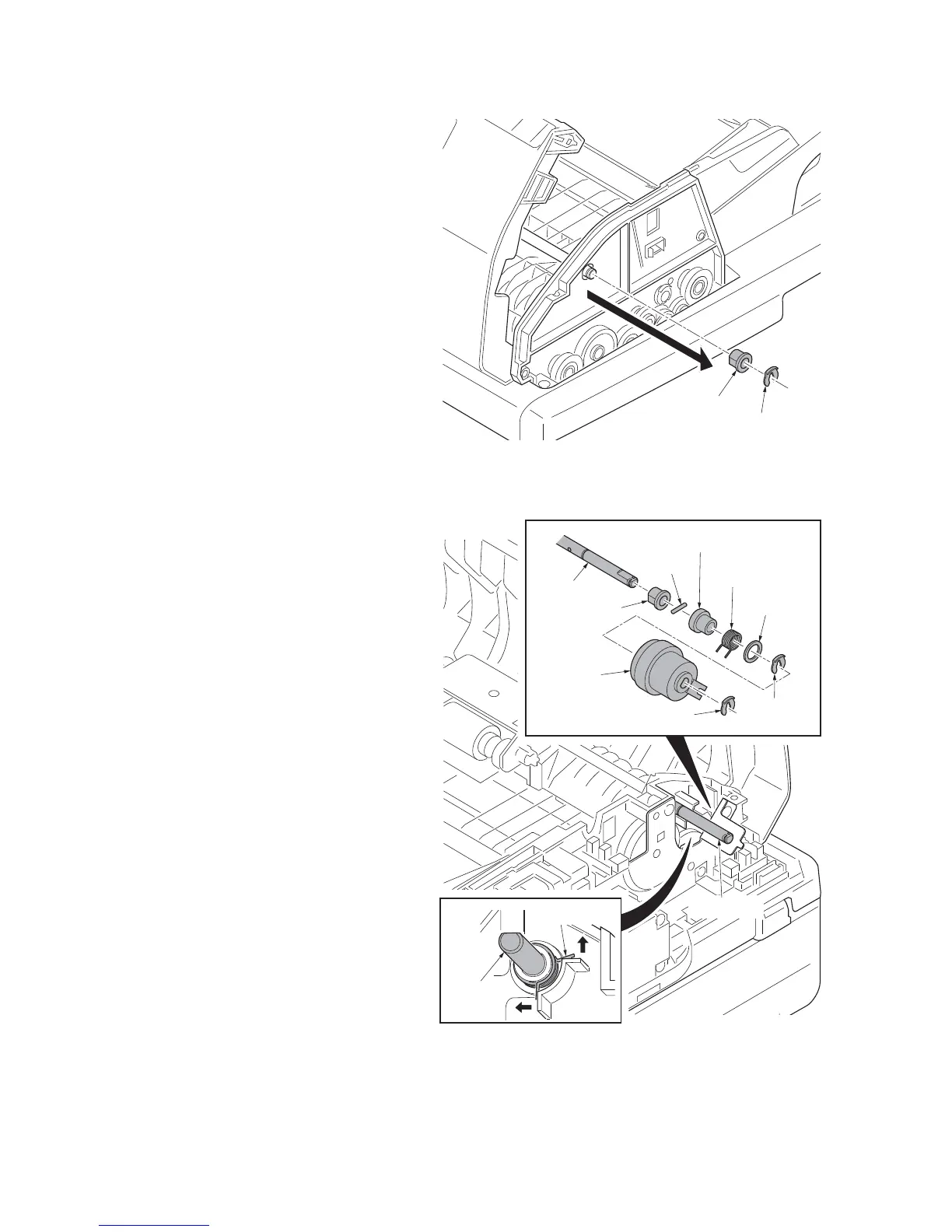

Figure 1-5-86
6. Remove the stop ring A and then
remove the DP paper feed clutch from
the PF shaft.
7. Remove the stop ring B and then
remove the PF collar, spring, spring col-
lar, pin and bush from the PF shaft.
Figure 1-5-87
Bush
Stop ring
Bush
DP paper
feed clutch
PF shaft
Pin
Spring collar
Spring
PF collar
Stop ring B
Stop ring A
PF shaft
PF shaft
Spring
