Kyocera FS-C2026MFP - Page 236

2KW/2KX
2-1-12

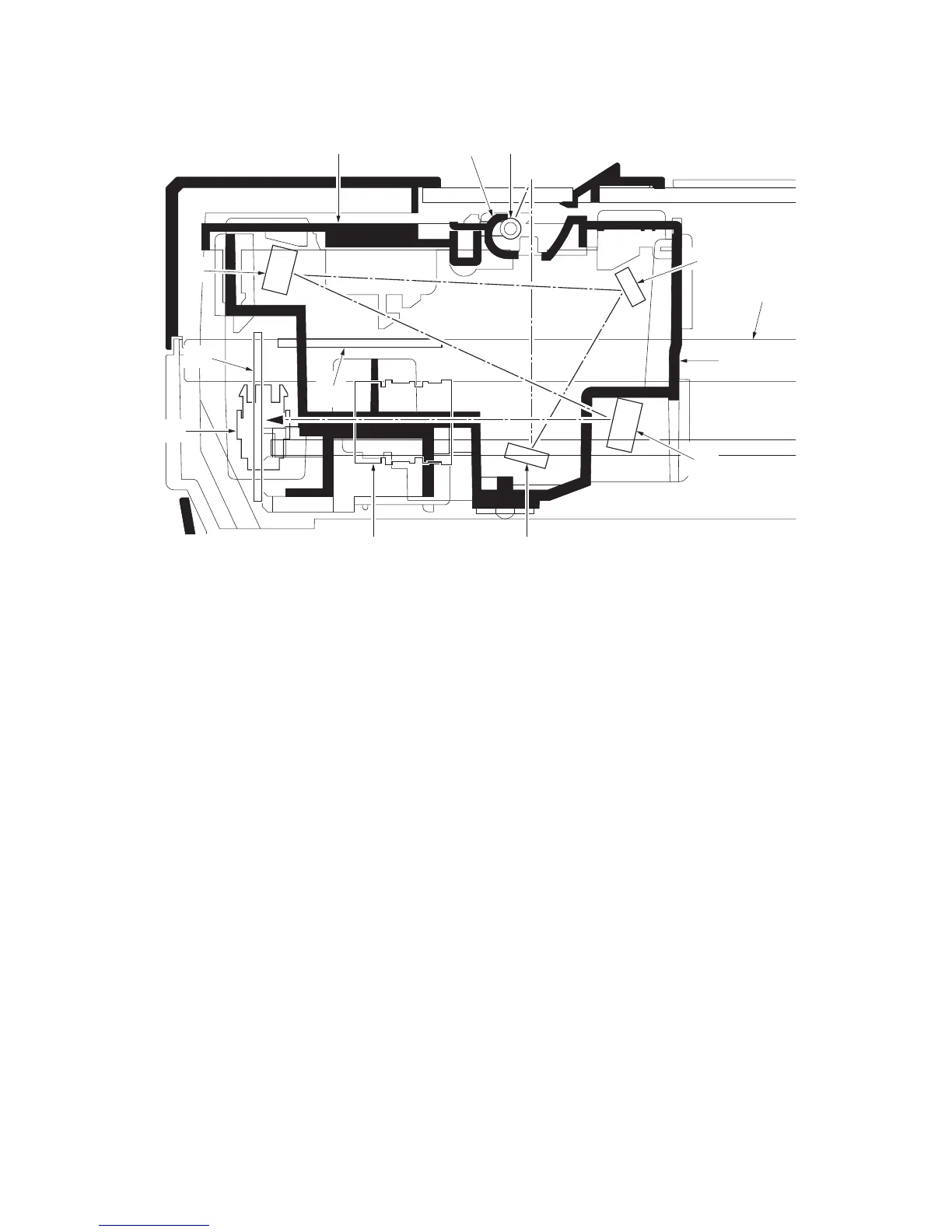

Figure 2-1-12 Image scanner unit (ISU)
14
3
2
13
95
10
11
12
6
7
8
1. Lamp mount
2. ISU housing
3. ISU reflector
4. Exposure lamp (EL)
5. Mirror A
6. Mirror B
7. Mirror C
8. Mirror D
9. ISU lens
10. CCD PWB (CCDPWB)
11. Inverter PWB (INPWB)
12. Home position sensor (HPS)
13. ISU shaft
