The switchback eject switch (SBESW) does not turn on within 1421 ms (2797 ms) of the feedshift switch (FSSW) turning on.
1421(2797) ms
FSSW
SBESW
OFF
ON
OFF
ON
The value in the parentheses indicates
the value in switchback operation.

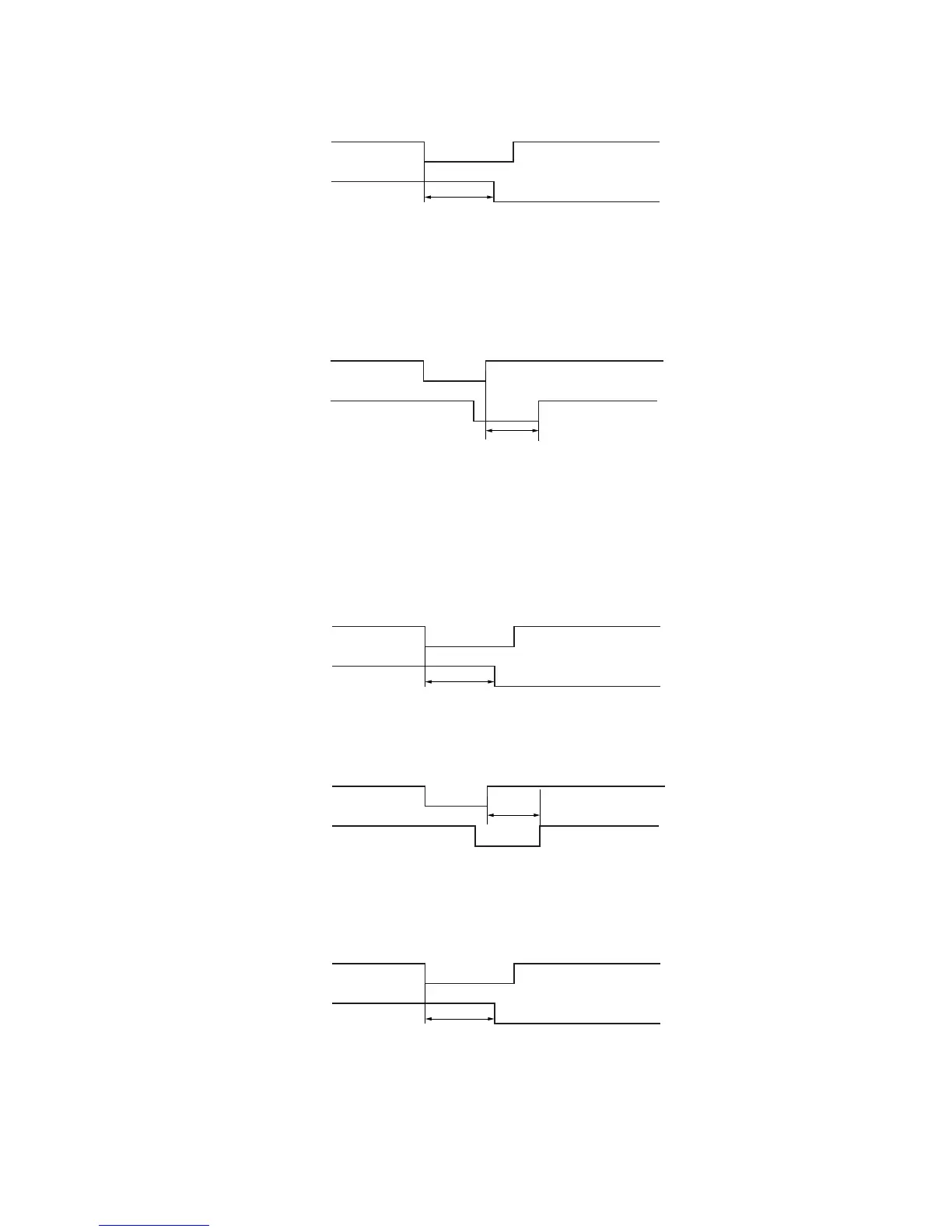

Timing chart 1-5-43
The switchback eject switch (SBESW) does not turn off within 1421 ms (2797 ms) of the feedshift switch (FSSW) turning off.
1421(2797) ms
FSSW
SBESW
OFF
ON
OFF
ON
The value in the parentheses indicates
the value in switchback operation.
Timing chart 1-5-44
7. Duplex section*
• Duplex paper conveying section 1 (jam code 60)
The duplex paper conveying switch (DUPPCSW) does not turn on within 1285 ms of the feedshift switch (FSSW) turning on.
1285 ms
FSSW
DUPPCSW
OFF
ON
OFF
ON
Timing chart 1-5-45
The duplex paper conveying switch (DUPPCSW) does not turn off within 1285 ms of the feedshift switch (FSSW) turning off.
1285 ms
FSSW
DUPPCSW
OFF
ON
OFF
ON
Timing chart 1-5-46
• Duplex paper conveying section 2 (jam code 61)
Feed switch 1 (FSW1) does not turn on within 1126 ms of the duplex paper conveying switch (DUPPCSW) turning on.
1126 ms
DUPPCSW
FSW1
OFF
ON
OFF
ON
Timing chart 1-5-47
*Optional.
