5. Feedshift section

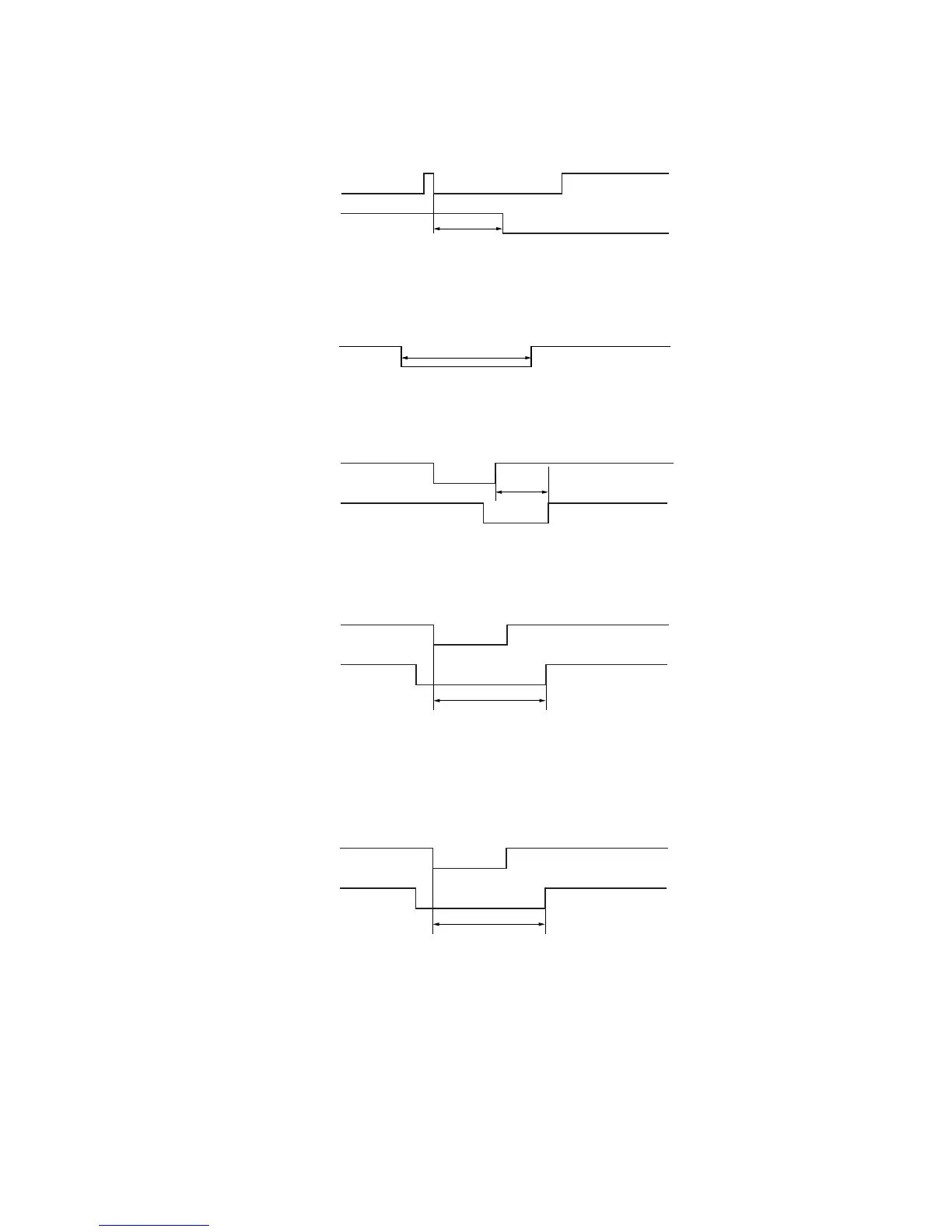

• Misfeed in feedshift section (jam code 52)
The feedshift switch (FSSW) does not turn on within 873 ms of the start of eject motor (EM) reverse rotation.
873 ms
Fwd. rotation Rev. rotation
EM
FSSW
OFF
ON
OFF
ON
Timing chart 1-5-38
During paper switchback operation, the feedshift switch (FSSW) does not turn off within the time required to convey the length
of the used paper size plus 317 ms of turning on.
OFF
ON
Paper size + 317 ms
FSSW
Timing chart 1-5-39
The feedshift switch (FSSW) does not turn off within 2898 ms of the registration switch (RSW) turning off.
2898 ms
RSW
FSSW
OFF
ON
OFF
ON
Timing chart 1-5-40
The feedshift switch (FSSW) does not turn off within 2898 ms of the registration clutch (RCL) turning on.
2898 ms
RCL
FSSW
OFF
ON
OFF
ON
Timing chart 1-5-41
6. Switchback unit*
• Misfeed in switchback section (jam code 53)
The switchback eject switch (SBESW) does not turn off within 1421 ms (2797 ms) of the feedshift switch (FSSW) turning on.
1421(2797) ms
FSSW
SBESW
OFF
ON
OFF
ON
The value in the parentheses indicates
the value in switchback operation.
Timing chart 1-5-42
*Optional.
