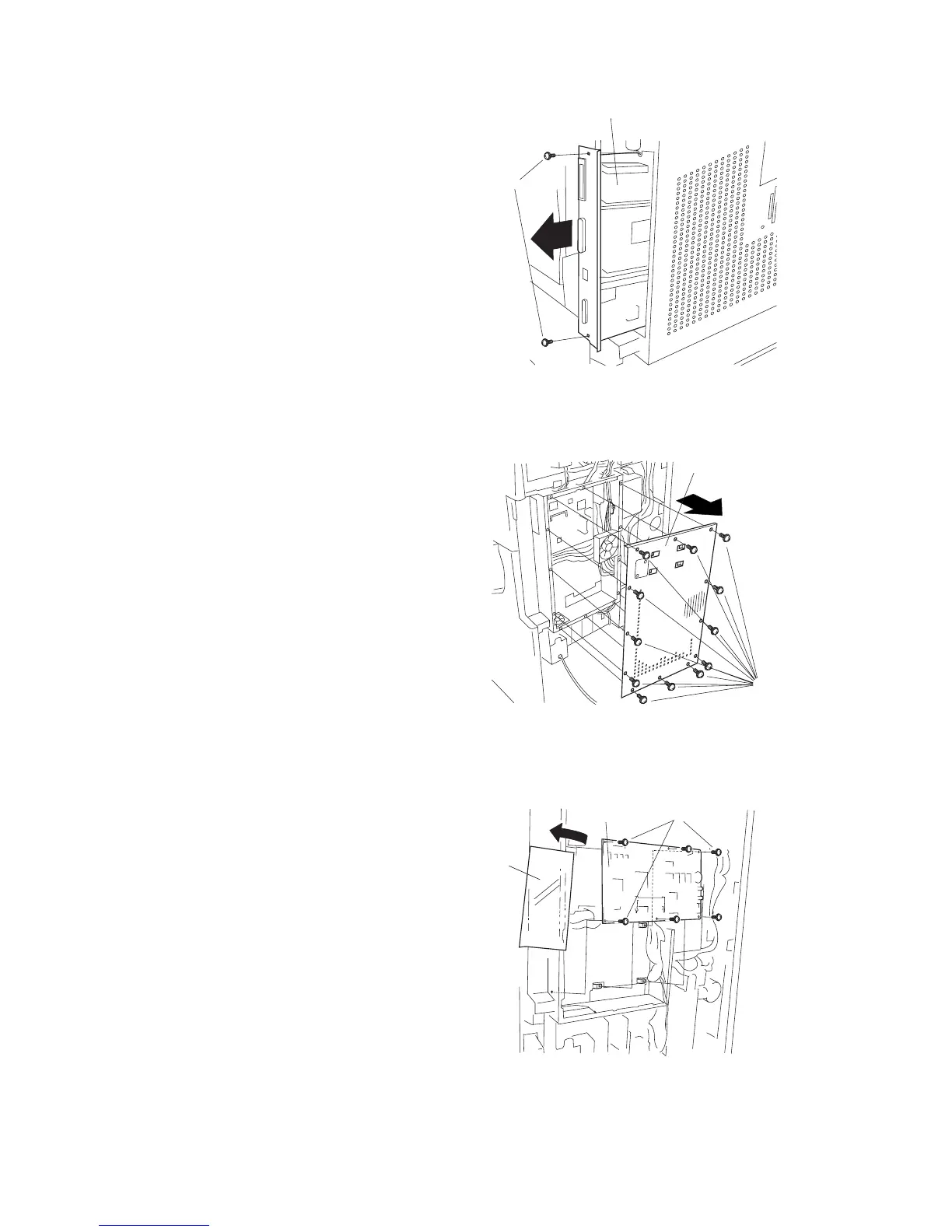

Figure 1-3-67
Figure 1-3-68
Screws
Printer system
Screws
Shield cover
• If the printing system is installed
9. Remove the 2 screws holding the printer
system in place, and pull the printing system
out of the shield cover.
10. Remove 13 screws and take off the shield
cover.
11. Move the film out of the way to the left, and
fasten the fax board into place using six M3 ×
06 chrome binding screws.
Figure 1-3-69
Film
M3 × 06 chrome
binding screws
Fax board
