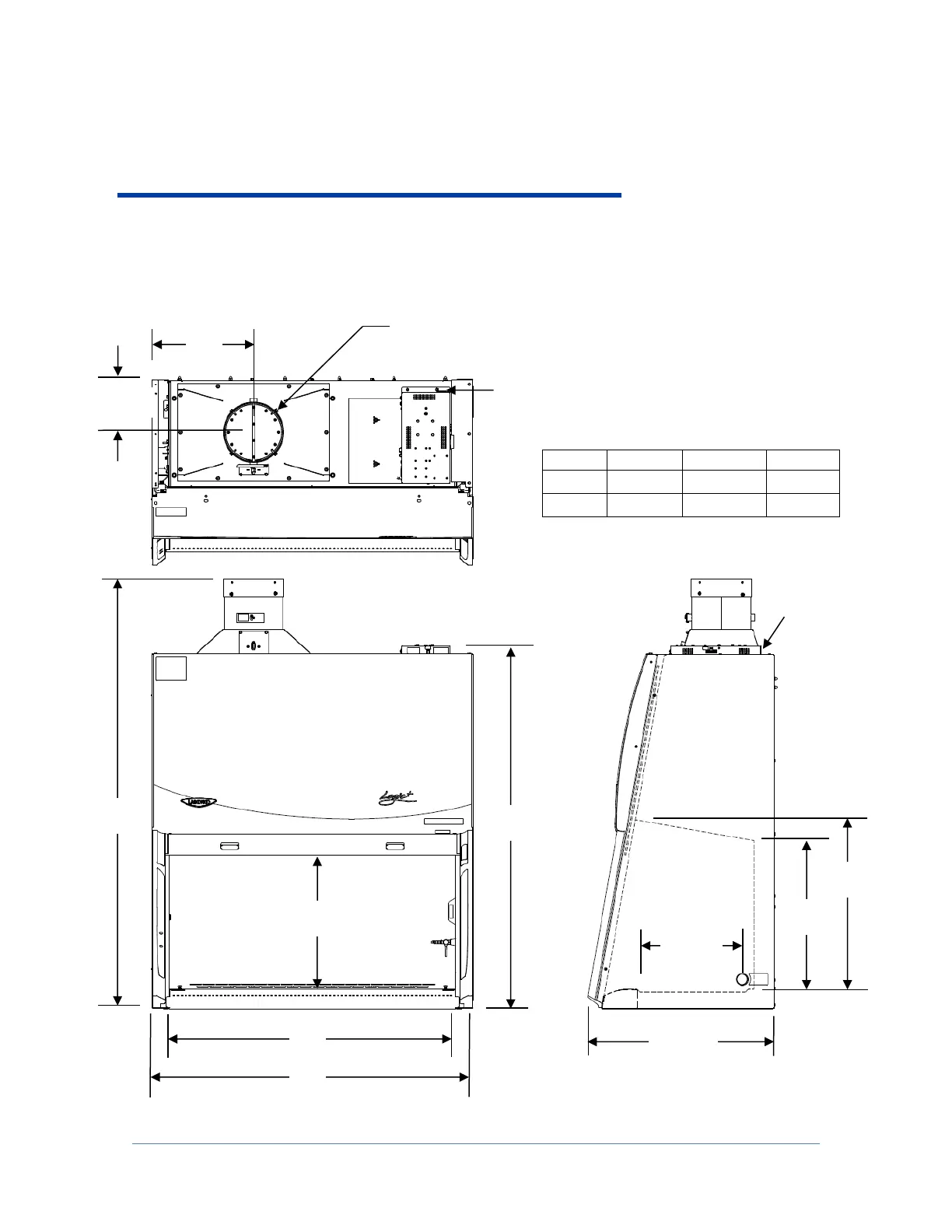

Appendix B: Dimensions
All dimensions are shown in inches.
B-1
Width
A
B
C
4'
54.3
48.5
17.2
6'
78.3
72.5
28.9
A
B
72.6
21.7 Max Loading
C
8.8
Exhaust duct stub sized
for 10 inch outside
diameter duct connection
Power Cord
Connection
Power Cord Connection
25.7
29.2
17.6
31.2
61.7
