6. Application Example
61
6.2.3 Organize Printed Report

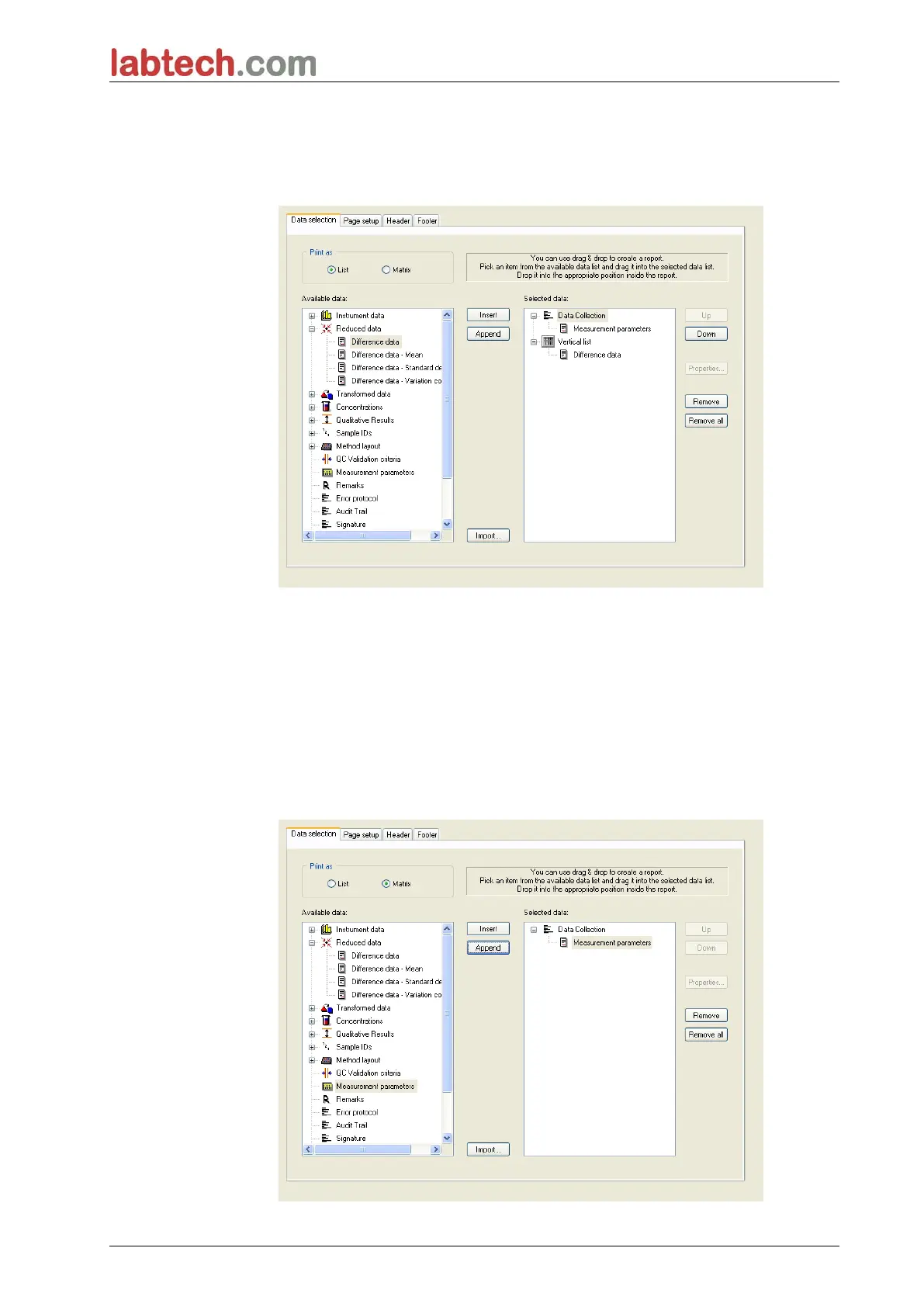

In the control bar, click Printed report from the Data handling item. The
following screen is displayed:
On the Data selection tab, all available report data is contained in the Available
data box. Using the Insert and Append buttons, data can be transferred into the
Selected data box. Data can also be transferred using drag-and-drop.
In the Print as box, choose between printing the data as a matrix or as a list with
a special orientation.
In this example a report containing the measurement parameters, plate layout,
blanked values, standard curve, IgM-concentrations, cutoff definition, qualitative
results of the samples and validations should be created.
Before creating the report, the default Vertical list/Difference data must be
removed from the Selected data box. Only Measurement parameters remain in
the Selected data box. Print as List must be changed to Print as Matrix.
