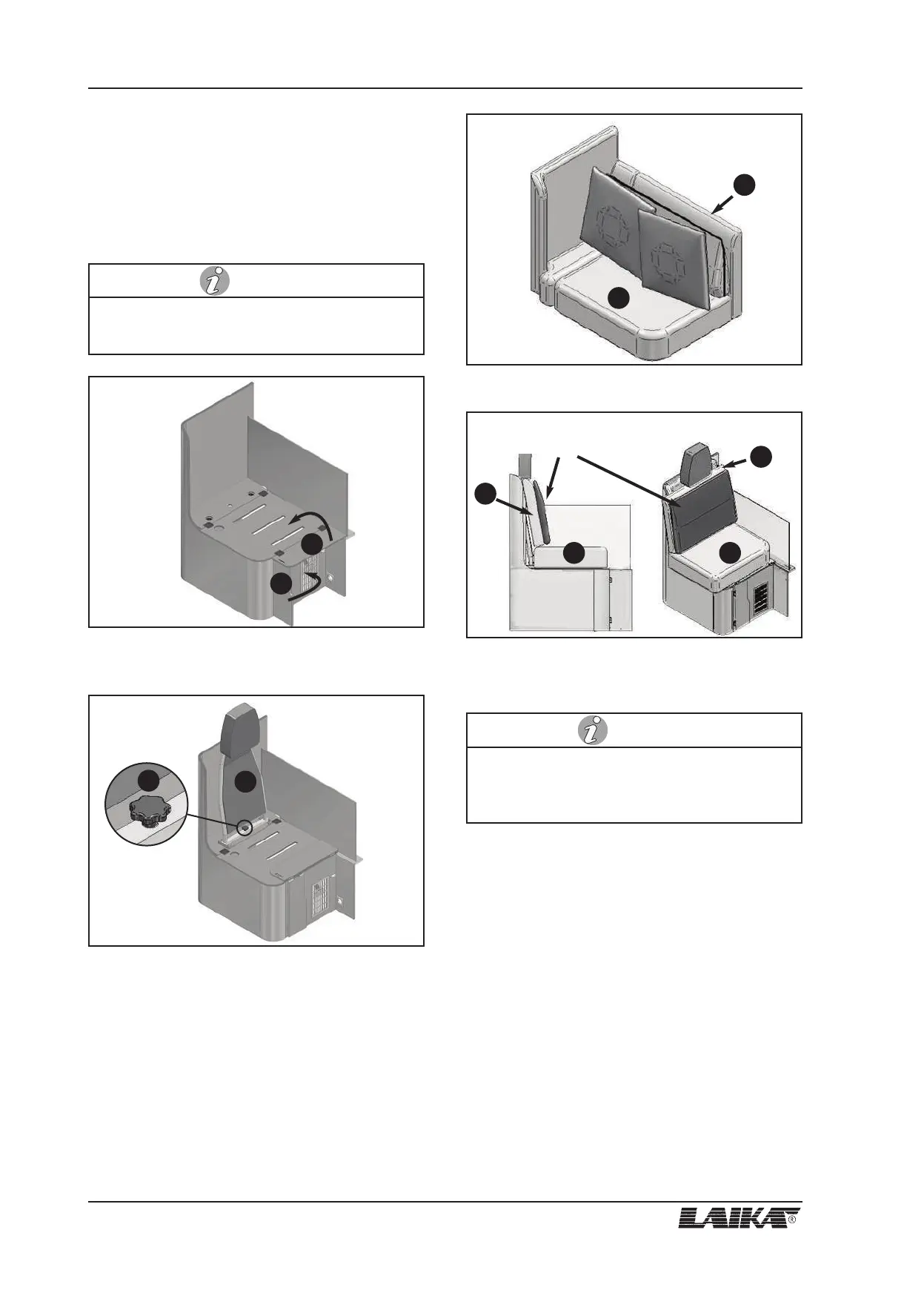

18.2 Lengthways settee (Ecovip DS
series)
On the vehicles with lengthways settee (Ecovip DS
series), it is necessary to perform the operation
described below to obtain an additional passenger
seat.
Turn the plane (a) and the plane (b).
Fit the backrest (c) and secure it with the stop (d).
Position the cushions as shown in picture 2.
18 - SETTEES
100
USER’S GUIDE
a
b
c
d
Left side of living area
Left side of living area
Left side of living area
e
f
Left side of living area
e
f
e
f
Additional cushion
Picture 1
Picture 2
The operation can be carried out both on the left
and the right settee.
NOTE
The additional cushion is not located between the
cushions in picture (1) but is supplied as an
additional piece to the vehicle upholstery.
