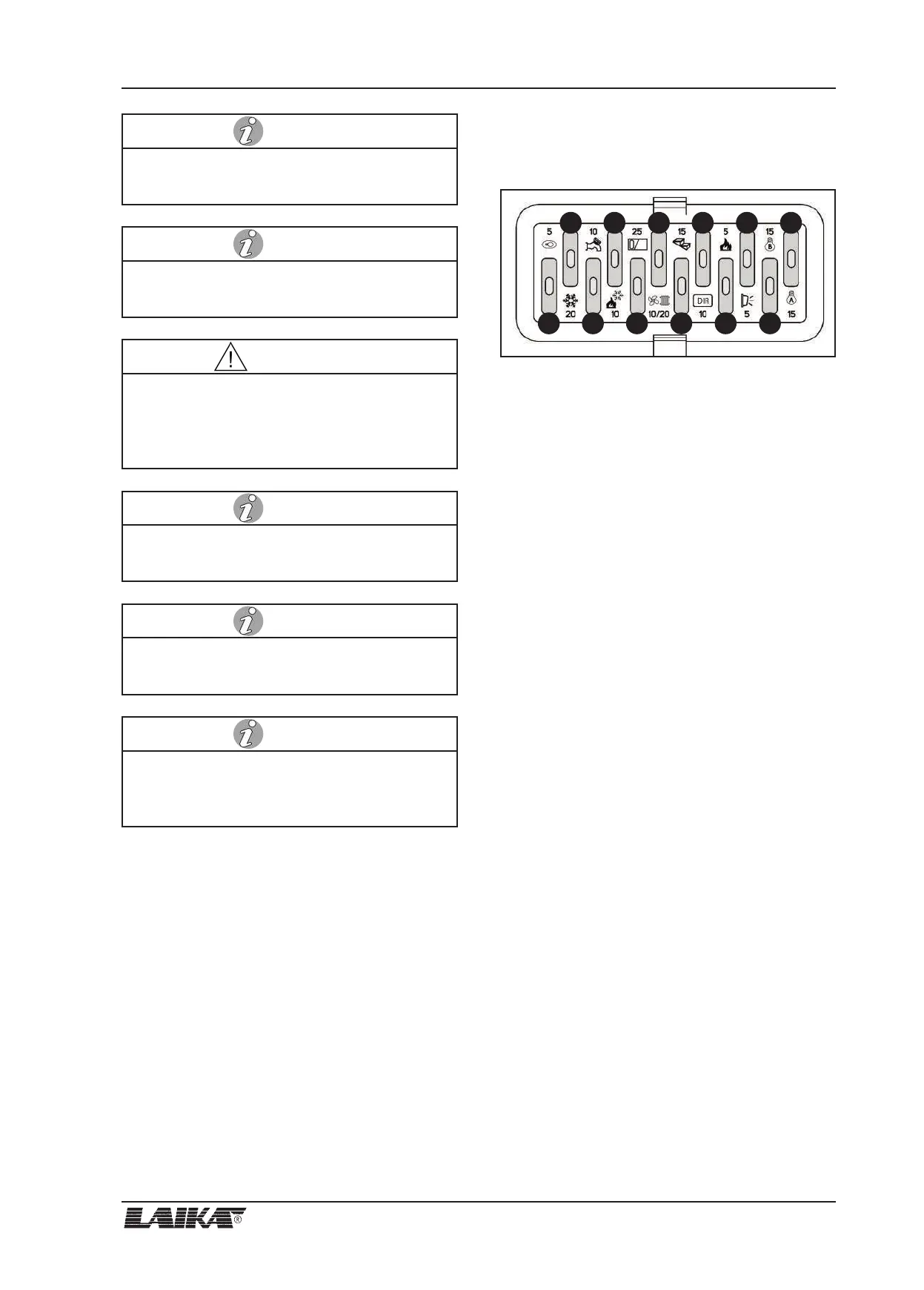

12 V distribution control unit - Fuses
1) Side-marker lights.
2) Fridge 12 V power supply.
3) Water pump.
4) Fridge control board.
5) Electric bed.
6) Heating.
7) Electric entrance step.
8) DIR output.
9) Gas hob ignition.
10) Awning light.
11) Lights group B.
12) Lights group A.
10 - CONTROL UNIT - FUSES
USER’S GUIDE
57
The control unit is located inside the settee behind
the right cabin seat (Ecovip and Kreos series).
NOTE
For information on the connections of the control
unit, refer to the manufacturer's manual.
NOTE
Quantify the loads with skilled personnel before
installing electric optional equipment other than
those of the standard outfit and carefully determine
the type of connection to be made.
WARNING
Some fuses are related to optional devices, or are
not available on some models.
NOTE
If the vehicle is equipped with a diesel fuelled
Truma heating (optional), its fuse will be 20 A
instead of 10 A.
NOTE
The control unit is located under the left cabin seat
(Kosmo series).
NOTE
4 6 8 10 12
1 3 5 7 9 11
2
