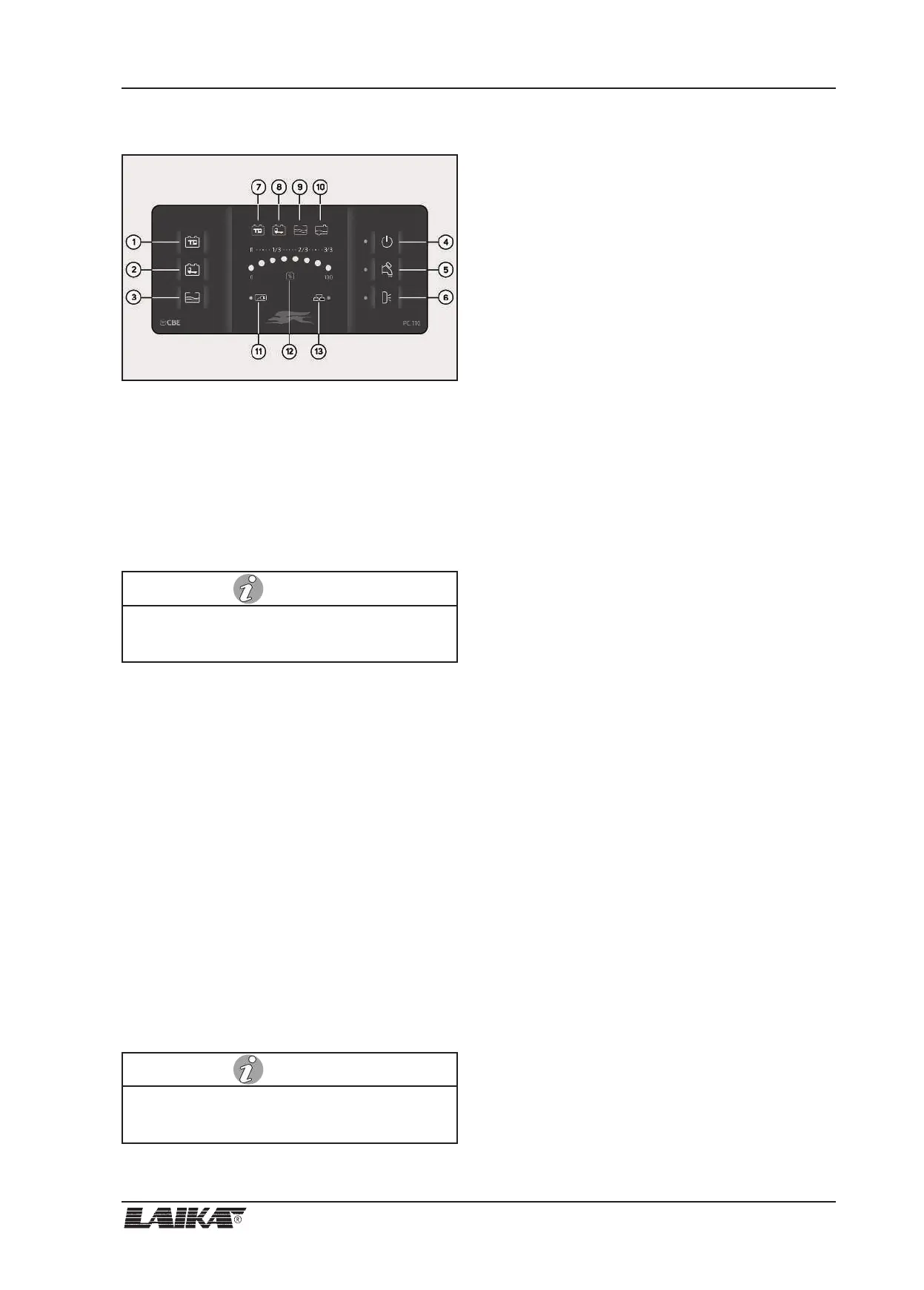

9.5 Kosmo Compact 5, Compact 9
1) Button to control auxiliary battery voltage (B2).
2) Button to control engine battery voltage (B1).
3) Button to control fresh water and waste water tank
level.
4) On/off main switch. The flashing LED indicates that
the auxiliary battery is run down and all the
appliances will soon be disconnected.
5) Button for pump on and off.
6) Awning light control button, switches automatically
off when you start up the engine.
7) The flashing of this LED indicates that the auxiliary
battery (B2) has run down.
8) The flashing of this LED indicates that the engine
battery (B1) has run down.
9) The flashing of this LED indicates that the fresh
water tank is empty.
10) The flashing of this LED indicates that the waste
water tank is full.
11) Indicates 230 V power source connection.
12) Battery voltage and tank level display.
13) Indicates the auxiliary battery charging by means of
the vehicle alternator.
9 - CONTROL PANEL
USER’S GUIDE
55
At startup the control panel checks the working of
all LEDs.
NOTE
Refer to the producer's handbook for further infor-
mation on the control panel.
