9.4 Kosmo series (except for Kosmo
Compact 5 and Compact 9)

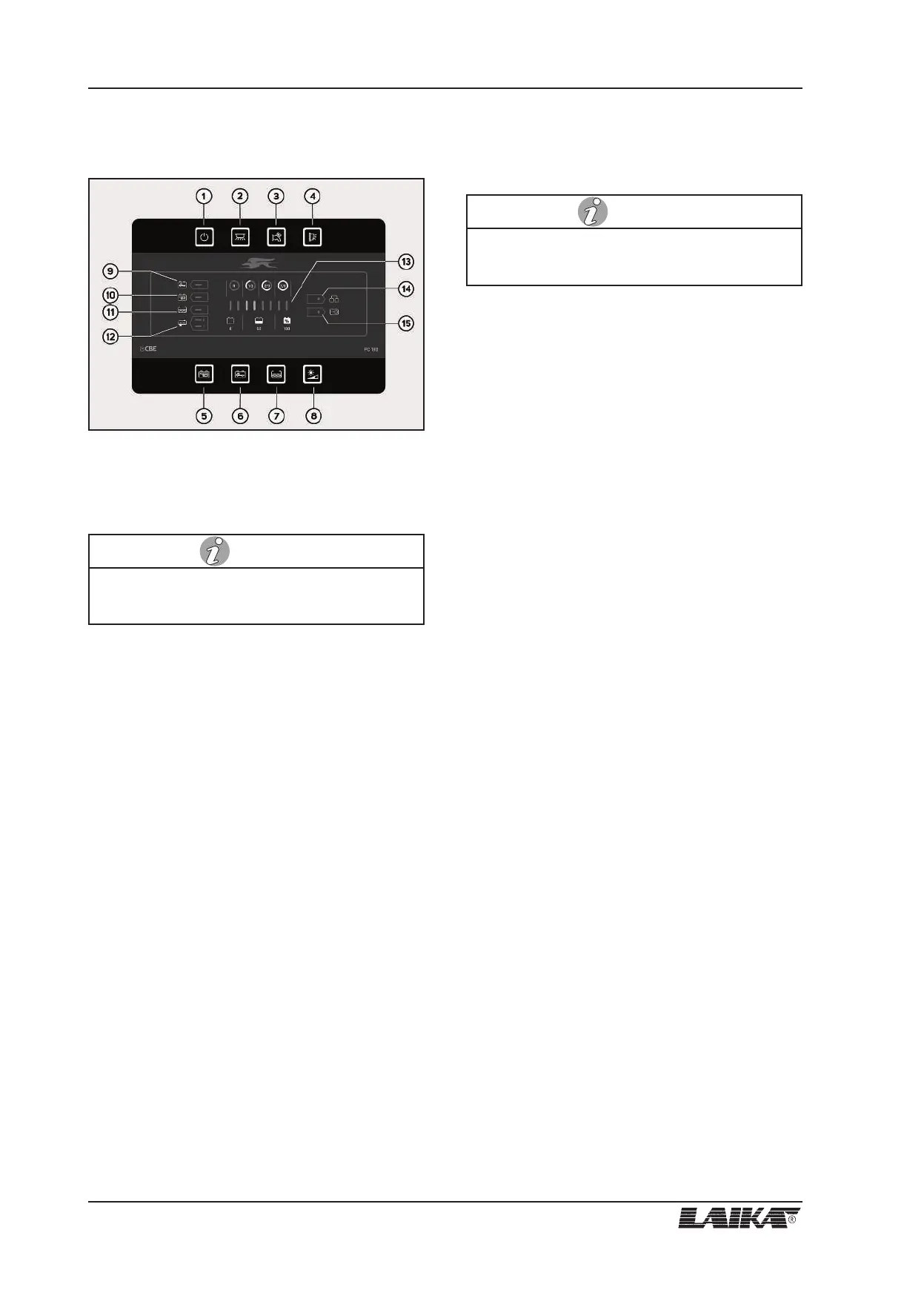

1) On/off main switch. The flashing LED indicates that
the auxiliary battery is run down and all the appli-
ances will soon be disconnected.
2) Inside lights button.
3) Button for pump on and off.
4) Awning light control button, switches automatically
off when you start up the engine.
5) Button to control auxiliary battery voltage (B2).
6) Button to control engine battery voltage (B1).
7) Button to control fresh water and waste water tank
level.
8) Button for adjusting panel night backlight. To set,
press for more than three seconds until the desired
level has been reached. When the ambient light
decreases, a dusk sensor located near the button
will automatically reduce the backlight intensity to
the set level.
9) The flashing of this LED indicates that the engine
battery (B1) has run down.
10) The flashing of this LED indicates that the auxiliary
battery (B2) has run down.
11) The flashing of this LED indicates that the fresh
water tank is empty.
12) The flashing of this LED indicates that the waste
water tank is full (tank 1).
13) Battery voltage and tank level display.
14) Indicates the auxiliary battery charging by means of
the vehicle alternator.
15) Indicates 230 V power source connection.
9 - CONTROL PANEL
54
USER’S GUIDE
At startup the control panel checks the working of
all LEDs, except LED 14 and 15.
NOTE
Refer to the producer's handbook for further infor-
mation on the control panel.
