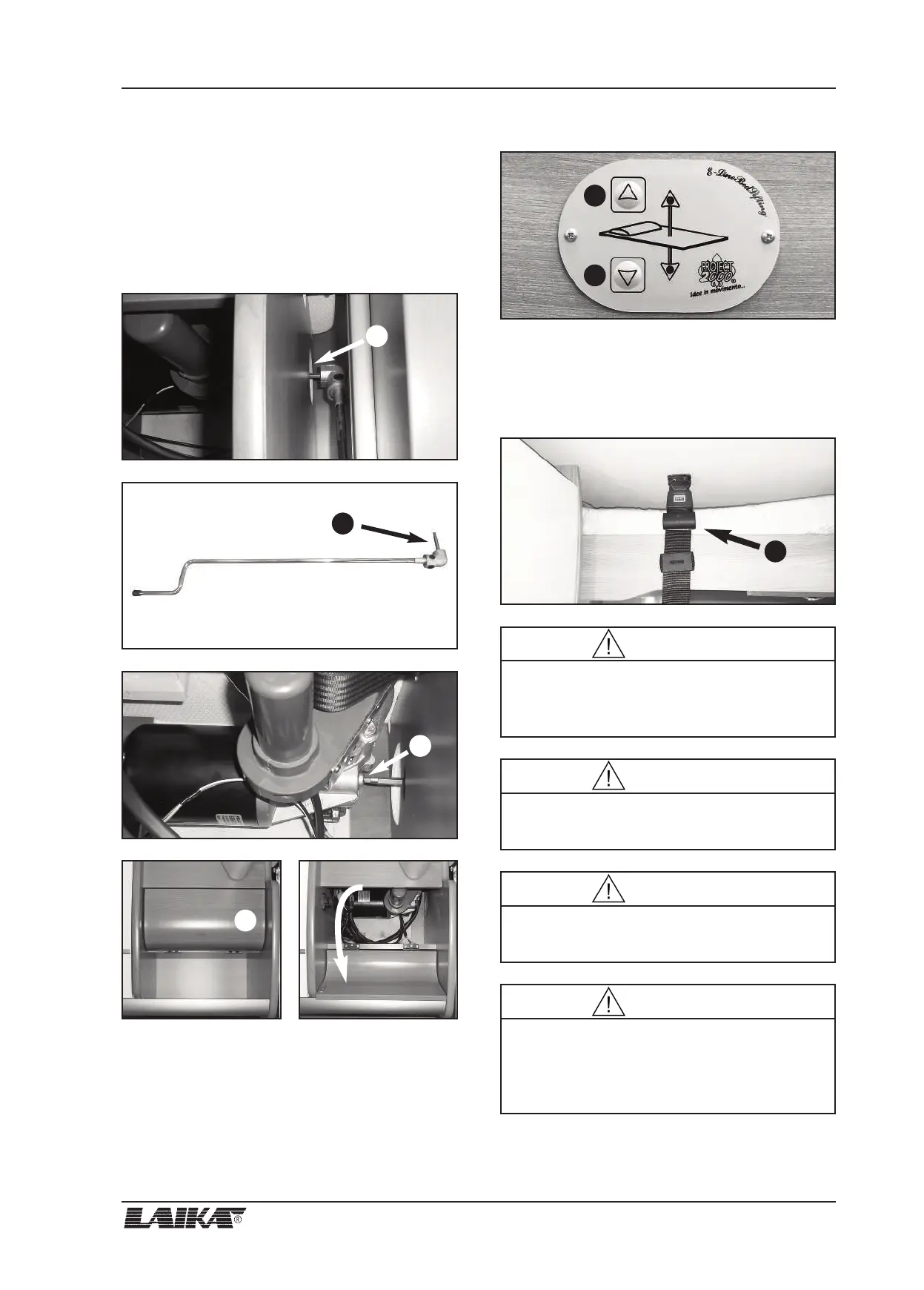

Manual handling of the bed
In case of malfunction or power failure, the bed can be
moved manually using the special handle supplied as
standard equipment. On the front left side of the bed,
there is an opening (c) that is used to insert the
hexagonal end (d) of the handle into the hole (e) pre-
drilled in the motor. You can see the motor by opening
the service hatch (f) (press to open).
17.6.3 Bed above the dinette (C type)
a) Bed up control.
b) Bed down control.
17 - INTERNAL COMPONENTS
USER’S GUIDE
93
d
c
f
e
a
b
Control panel
When the bed is lowered using the electric controls,
make sure to unhook the latch (c) first, otherwise
the mechanism could be seriously damaged.
WARNING
c
When the vehicle is parked for a long time under the
sun, the bed must not remain in fully raised
position: leave a space of at least 10 cm between
the roof-light and the bed mattress.
WARNING
Before lowering the bed, position the cab seats so
that they do not interfere with bed movement.
WARNING
Make sure that children do not activate the bed
down/up control by themselves.
WARNING
