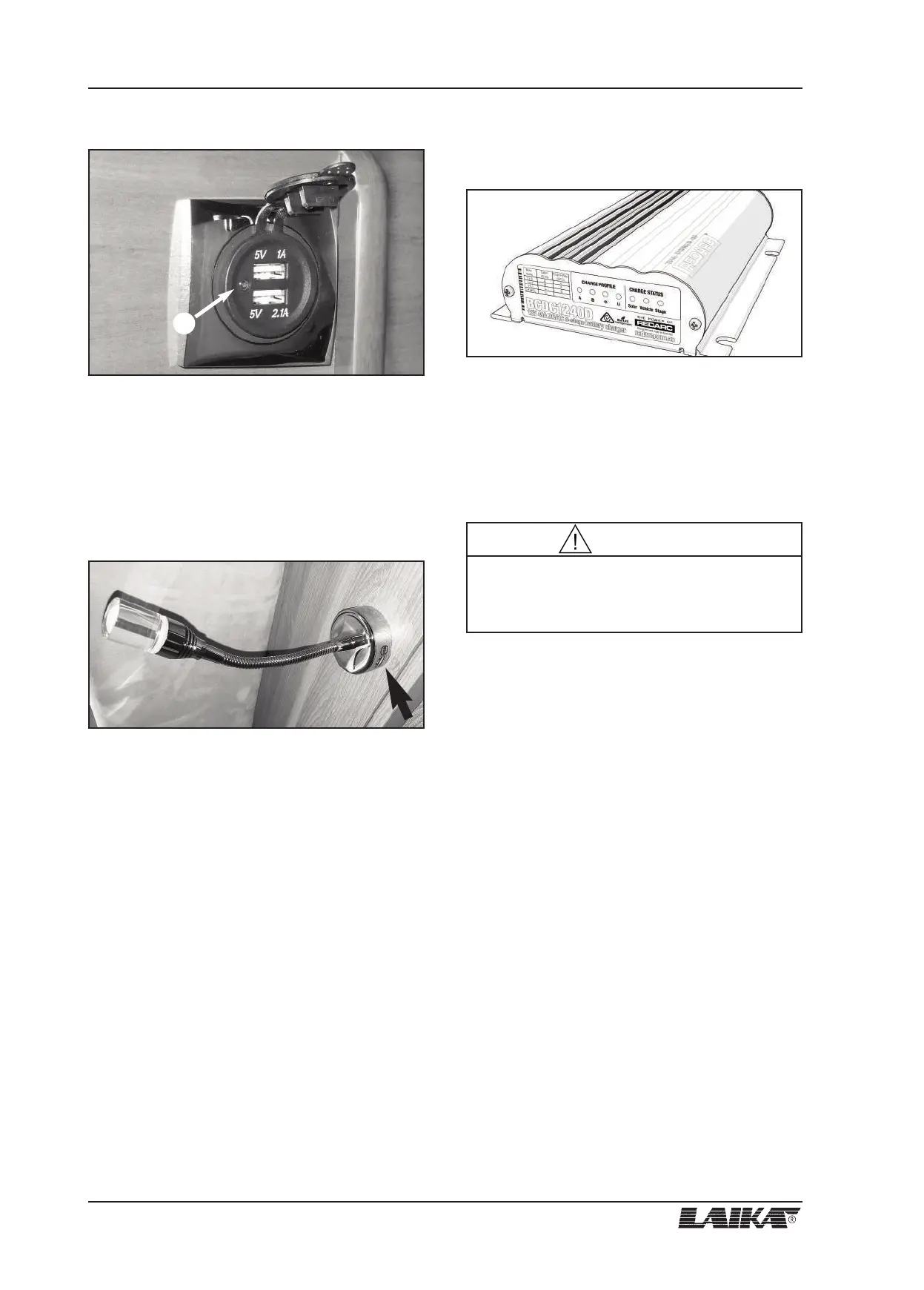

USB sockets
There are USB sockets in the living quarters that can be
used to charge devices such as smartphones. To supply
current to the USB sockets, activate the AUX output on
the control panel by means of the special pushbutton
(see chapter 9 - Control panel): when the USB sockets
are active, the relevant indicator lamp lights up (a).
USB sockets integrated into the reading lights
In the rear area there are USB sockets integrated into
the reading lights. To supply current to the USB sockets,
activate the 12 V/inside lights button on the control
panel.
Awning light
An awning light is fitted on the right-hand wall of the
vehicle. It can be turned on (only when the engine is off)
by means of the switch located on the control panel.
7.5 Vehicles with smart alternator
Booster
An additional component (booster) is fitted on vehicles
based on Fiat/Citroën chassis equipped with smart
alternator to optimise auxiliary battery charging while
driving. The booster is located near the 12 V distri-
bution control unit.
Charging profile
According to the type of auxiliary battery installed in the
vehicle, the booster must be set to the most suitable
charging profile. The charging profile is determined by
the type of connection of the orange cable:
• Leave the orange cable disconnected to select a
maximum voltage of 14.6 V (Profile A).
• Connect the orange cable with the General Earth to
select a maximum voltage of 15.0 V (Profile B).
• Connect the orange cable with the red cable (battery
positive) to select a maximum voltage of 15.3 V
(Profile C).
• Connect the orange cable with the green cable to
select Li profile (Lithium profile).
7 - ELECTRIC SYSTEM (ECOVIP - KREOS)
40
USER’S GUIDE
a
The actions described must be performed exclu-
sively by specialised personnel. Always contact an
authorised Laika workshop.
WARNING
