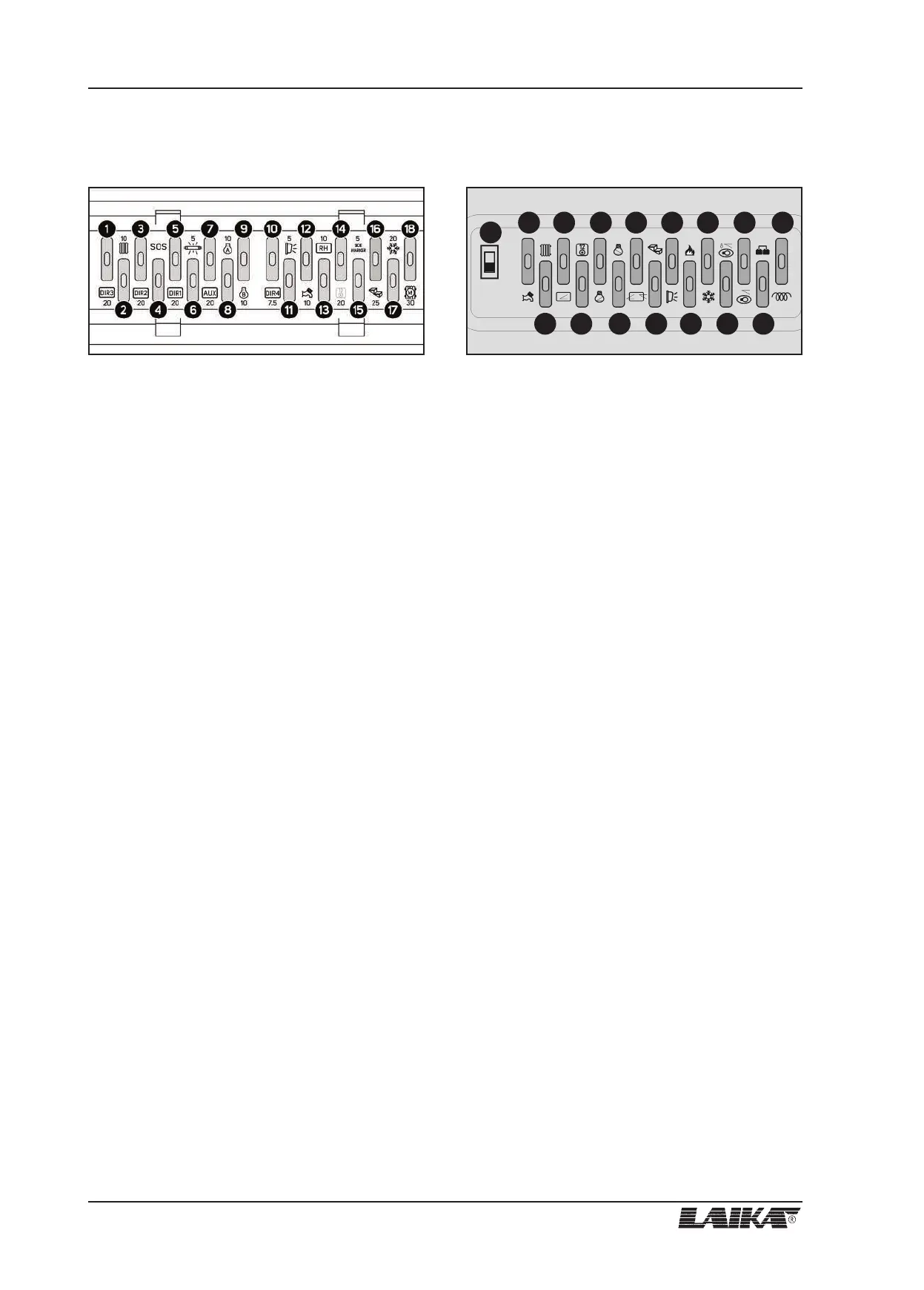

10.2 Ecovip series
12 V distribution control unit - Fuses
1) 20 A fuse - DIR3 - Rear electric bed.
2) 10 A fuse - Heating.
3) 20 A fuse - DIR2 - Front electric bed.
4) SOS - Insert a fuse to power the main appliances
directly from the auxiliary battery and disabling
the electronic controls. The yellow LED indicates
that the SOS function is activated.
5) 20 A fuse - DIR1 - Satellite antenna.
6) 5 A fuse - Night lights.
7) 20 A fuse - AUX output.
8) 10 A fuse - Lights group A.
9) 10 A fuse - Lights group B.
10) 7.5 A fuse - DIR4.
11) 5 A fuse - Awning light.
12) 10 A fuse - Water pump.
13) 10 A fuse - RH output.
14) 20 A fuse - 12 V sockets.
15) 5 A fuse - Side-marker lights.
16) 25 A fuse - Electric entrance step.
17) 20 A fuse - Fridge 12 V power supply, it turns off
automatically when engine is off.
18) 30 A fuse - Heating motor.
10.3 Kreos series
12 V distribution control unit - Fuses
1) 10 A fuse - Water pump
2) 10 A fuse - Heating.
3) 20 A fuse - Satellite antenna - Front electric bed.
4) 15 A fuse - 12 V sockets.
5) 7.5 A fuse - Lights group A.
6) 7.5 A fuse - Lights group B.
7) 15A fuse - AUX output - Rear electric bed.
8) 10A fuse - Electric entrance step (15 A on Kreos
8002, 8009, 8012 Models).
9) 7.5 A fuse - Awning light.
10) 3 A fuse - Gas electric ignition (fridge, cooker, etc.).
11) 20 A fuse - Fridge 12 V power supply, it turns off
automatically when engine is off.
12) 3 A fuse - Right side-marker lights.
13) 3 A fuse - Left side-marker lights.
14) 3 A fuse - D+ output.
15) 30 A fuse - Windscreen defroster.
16) Emergency switch, for powering the main appli-
ances directly from the auxiliary battery and
disabling the electronic controls. The red LED
indicates that the SOS function is activated
10 - CONTROL UNIT - FUSES
58
USER’S GUIDE
16
3 5 7 9 11
2 4 6 8 10 12
13 15
14
1
