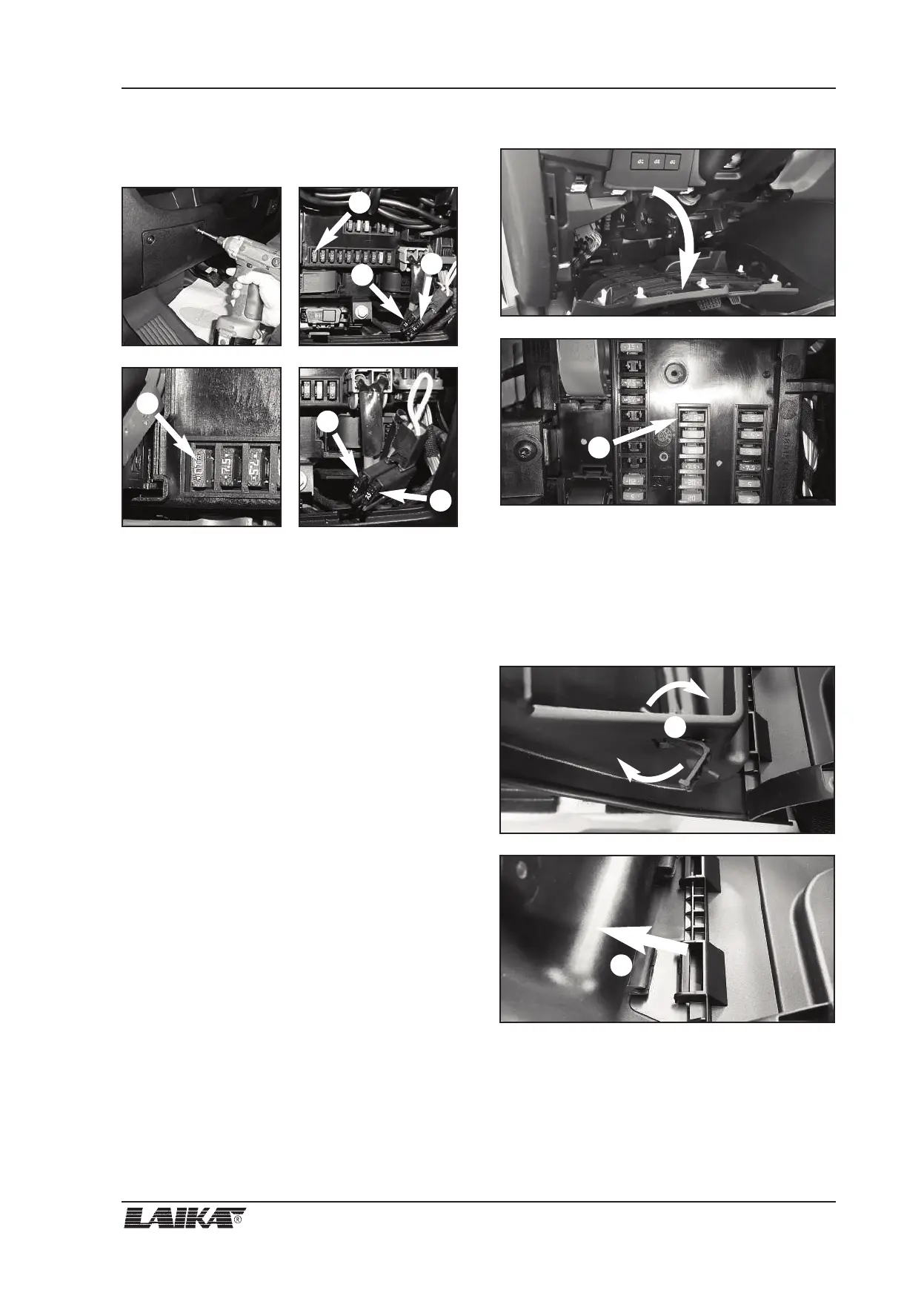

10.3.1 Kreos A-class: additional fuses
Kreos 7009, 7012
By opening the cover of the Fiat fuse holder, located to
the left of the steering wheel, you can access the fuse
(a) which protects the lines of daytime headlights and
door lights.
The fuse (b), connected to the blue cable, is dedicated
to the door lights, while the fuse (c), connected to the
white wire, is related to the daytime headlights.
Kreos 8002, 8009, 8012
By opening the cover of the Iveco fuse holder, located to
the left of the steering wheel, you can access the fuse
(a) which protects the lines of daytime headlights and
door lights.
The compartment behind the glove box on passenger
side houses the fuses dedicated to the individual lines.
To remove the glove box unlock the two clips on the
sides of the glove box (b), then unlock the glove box at
the bottom (c).
10 - CONTROL UNIT - FUSES
USER’S GUIDE
59
a
b
a
c
b
c
a
b
c
