45
HighLow: Having focused this radio button, DI0/DI1 will only report the
status when the external devices voltage changes from high to low.
Both: Having focused this radio button, DI0/DI1 will report both the status
when the external devices voltage changes from high to low or low to high.
Event description: Please fill in the description for the event.

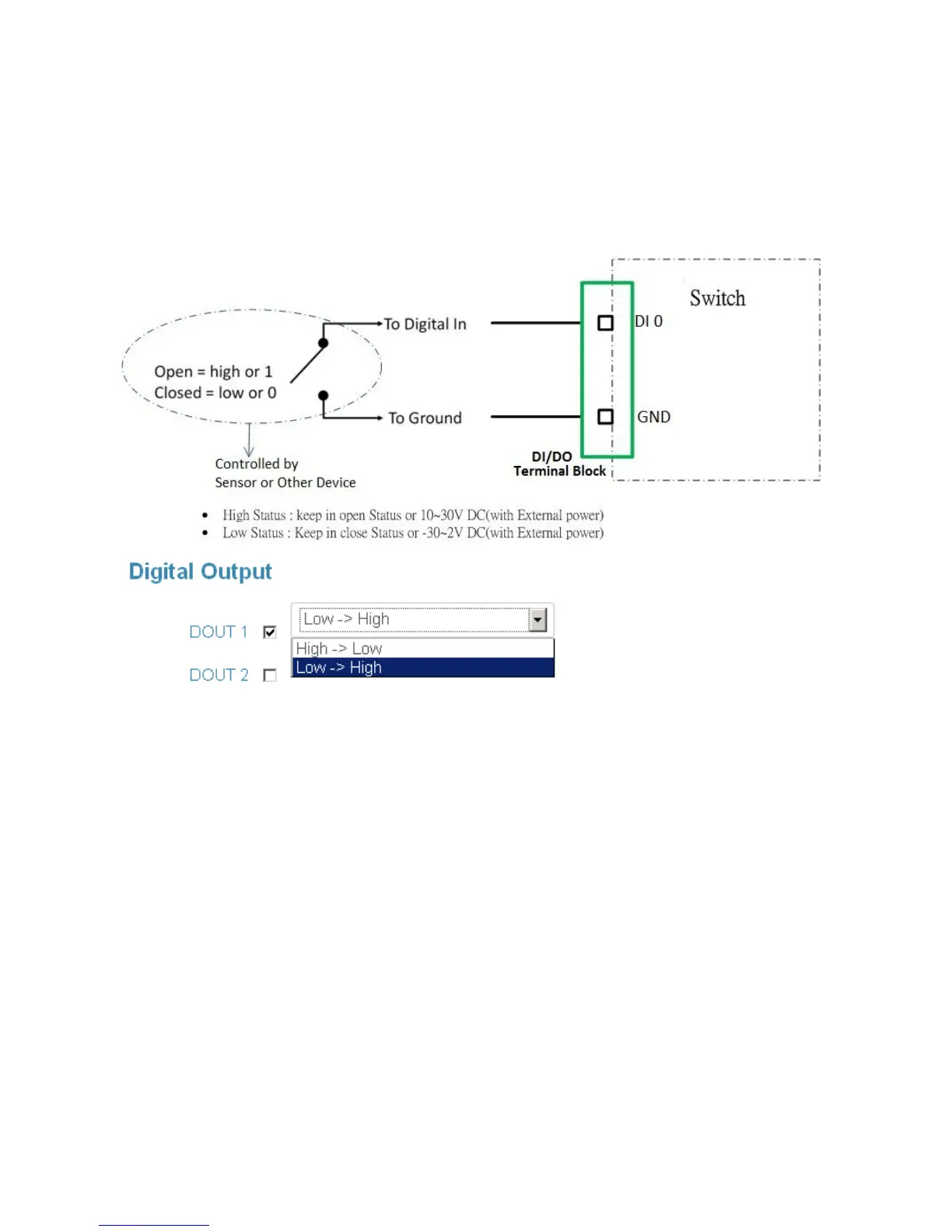

Digital Output Setting
When DO0/DO1function is enabled; first Digital Output (DO0) and second Digital
Output (DO1) will then be available respectively.
Condition: Tick the check boxes to decide whether or not to send the events via
digital output with the event about port fail or power fail or both.
Action: Choose the transition type of DO0/DO1.
LowHigh: When switch receive the event about port fail or power fail,
DO0/DO1 will switch the output voltage from low to high.
HighLow: When switch receive the event about port fail or power fail,
DO0/DO1 will switch the output voltage from high to low.
