6.15 MSTP
The section describes that how to configure the Spanning Tree Bridge and STP
System settings. It allows you to configure STP System settings are used by all STP
Bridge instance in the Switch.

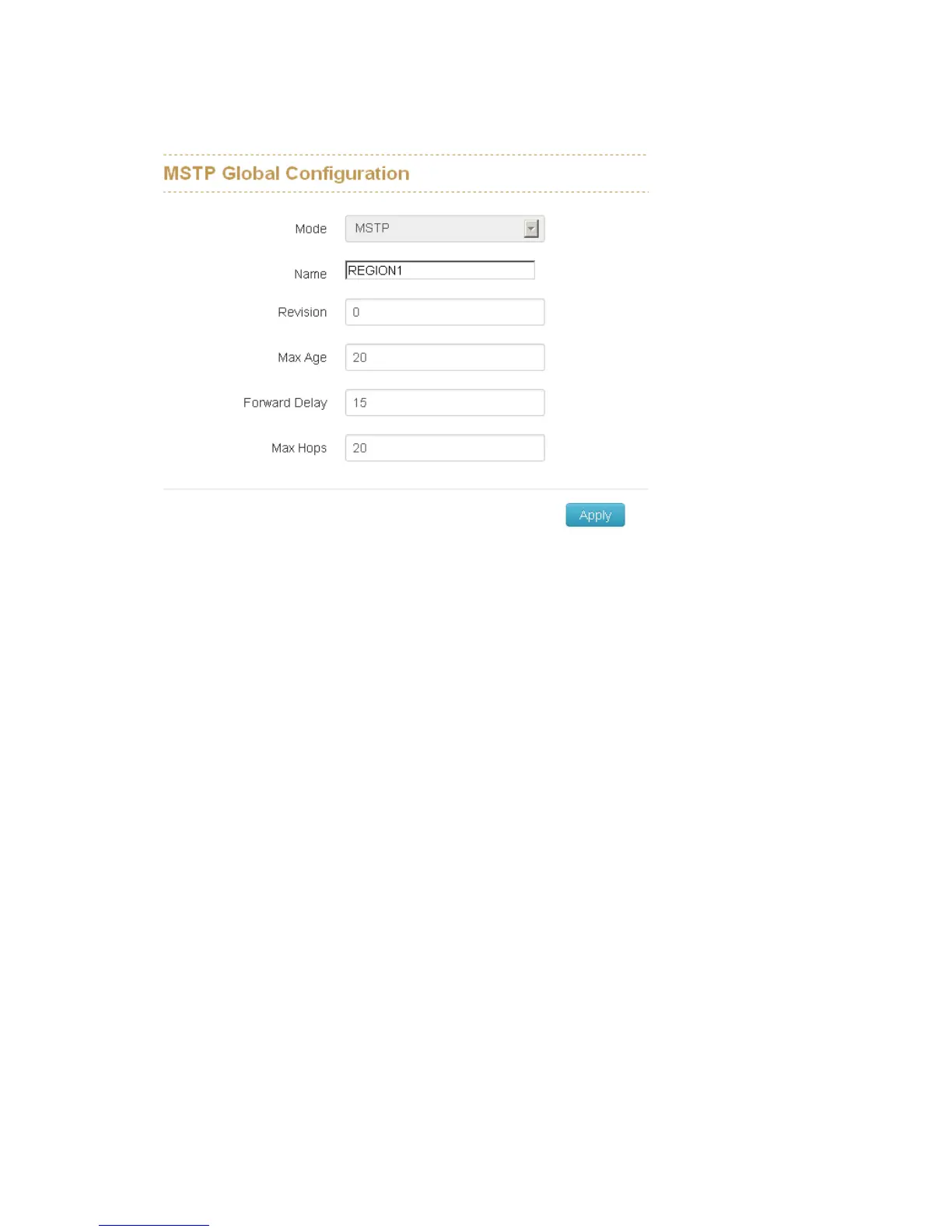

6.15.1. MSTP Global Configuration
Mode
Show the STP protocol version setting. Valid values are STP, RSTP and MSTP.
Name
The name identifying the VLAN to MSTI mapping. Bridges must share the name and
revision (see below), as well as the VLAN-to-MSTI mapping configuration in order to
share spanning trees for MSTI's (Intra-region). The name is at most 32 characters.
Revision
The revision of the MSTI configuration named above. This must be an integer
between 0 and 65535.
Forward Delay
