6.11 VLAN
A Virtual LAN (VLAN) is a logical network grouping that limits the broadcast domain,
which would allow you to isolate network traffic, so only the members of the same
VLAN will receive traffic from the ones of the same VLAN. Basically, creating a VLAN
on a switch is logically equivalent of reconnecting a group of network devices to
another Layer 2 switch. However, all the network devices are still plugged into the
same switch physically.

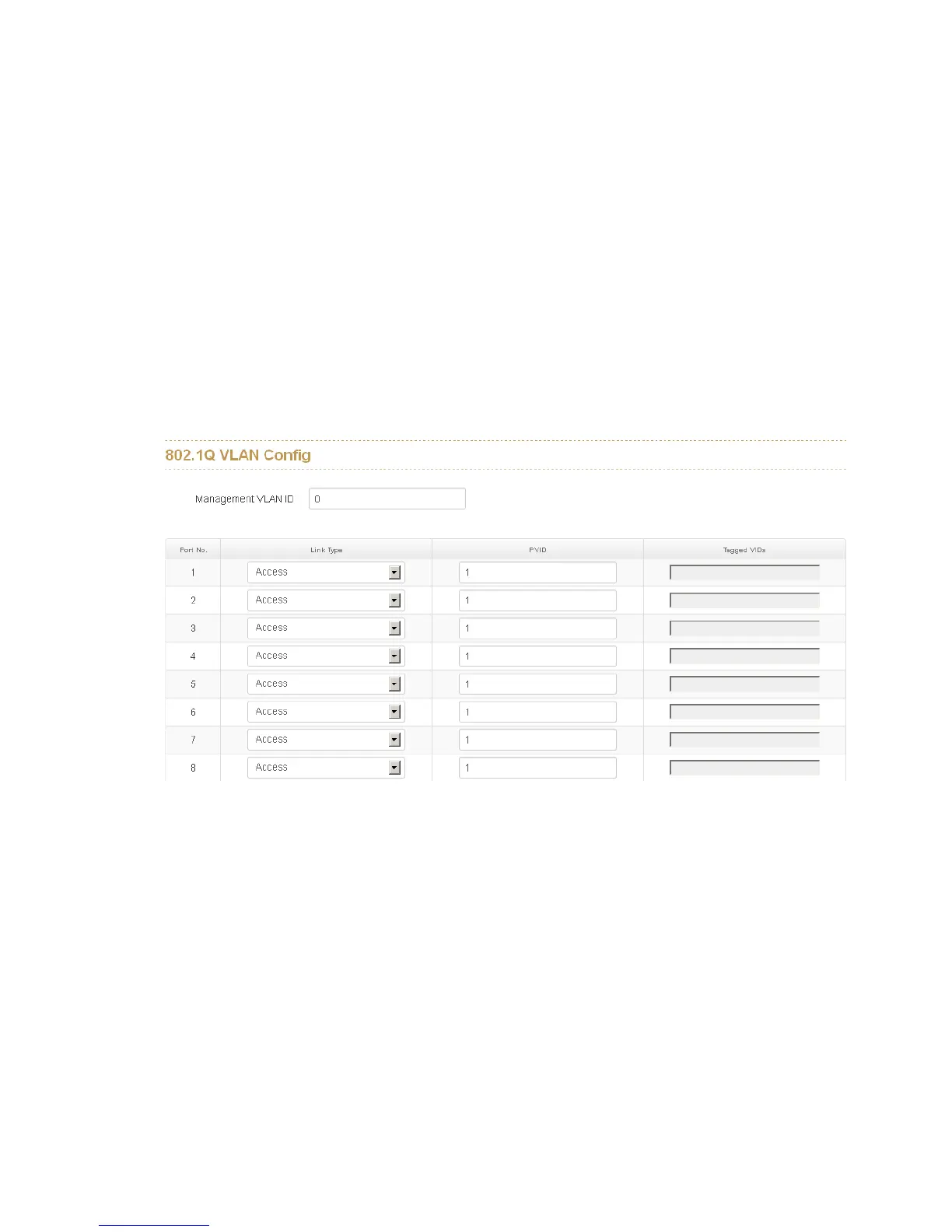

6.11.1 802.1Q VLAN Config
Management VLAN ID:
This will set which VLAN group can access the switch, the default “0” means all
VLAN group, this limitation will not support port based VLAN.
Link Type:
There are 3 types of link type.
1. Access Link: A segment which provides the link path for one or more stations to
the VLAN-aware device. An Access Port (untagged port), connected to the access
