90
The delay used by STP Bridges to transit Root and Designated Ports to Forwarding
(used in STP compatible mode). Valid values are in the range 4 to 30 seconds.
Max Age
The maximum age of the information transmitted by the Bridge when it is the Root
Bridge. Valid values are in the range 6 to 40 seconds, and MaxAge must be <=
(FwdDelay-1)*2.
Maximum Hop Count
This defines the initial value of remaining Hops for MSTI information generated at the
boundary of an MSTI region. It defines how many bridges a root bridge can distribute
its BPDU information to. Valid values are in the range 6 to 40 hops.
6.15.2 How to enable MSTP

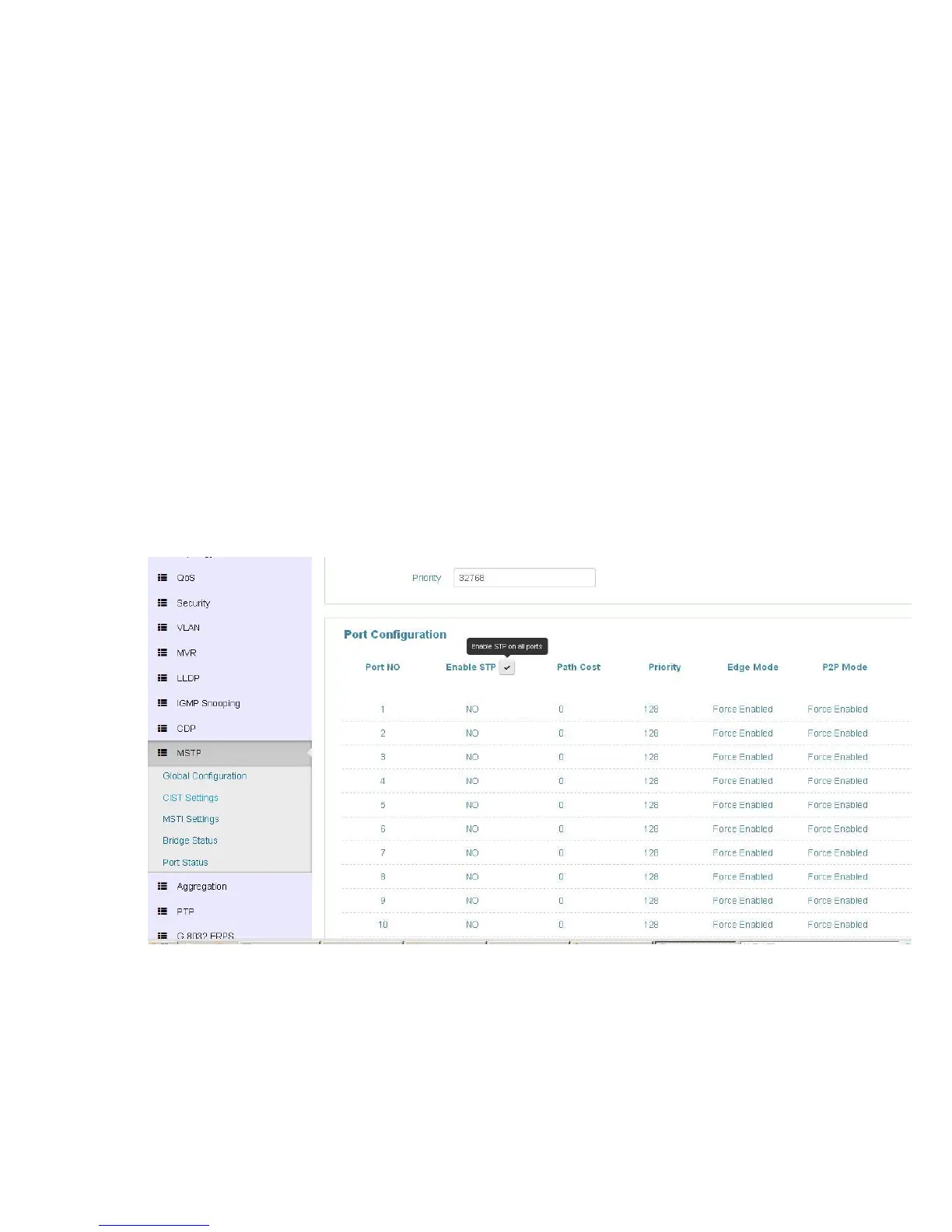

6.15.2.1 Enter MSTP CIST Settings , press icon to enable MSTP
PS: (The default was disable with all ports)
6.15.2.2 Check the status of STP, all ports should display “Yes”
