78
The switch periodically transmits LLDP frames to its neighbours for having the
network discovery information up-to-date. The interval between each LLDP frame is
determined by the Tx Interval value. Valid values are restricted to 5 - 32768 seconds.
The LLDP port settings relate to the currently selected stack unit, as reflected by the
page header.
Port No
The switch port number of the logical LLDP port.
Port Id
Enter characters to be id name for the logical LLDP port.
Mode
Select LLDP mode.
Rx only The switch will not send out LLDP information, but LLDP information from
neighbor units is analyzed.
Tx only The switch will drop LLDP information received from neighbors, but will send
out LLDP information.
Disabled The switch will not send out LLDP information, and will drop LLDP
information received from neighbors.
Both The switch will send out LLDP information, and will analyze LLDP information
received from neighbors.

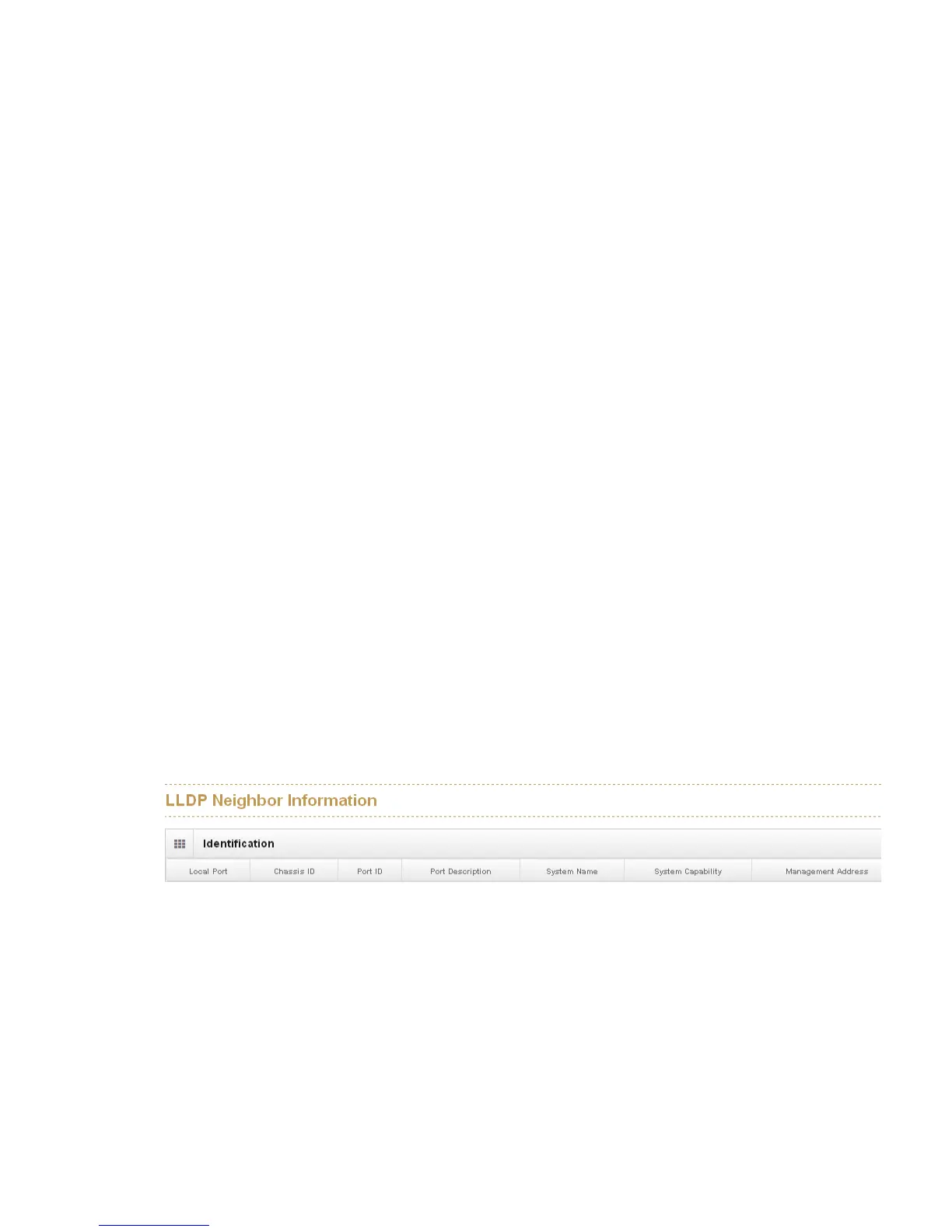

6.12.2 LLDP Neighbor
This page provides a status overview for all LLDP neighbors. The displayed table
contains a row for each port on which an LLDP neighbor is detected. The columns
hold the following information:
Local Port
