55
6.6 Ports
6.6.1 Configuration

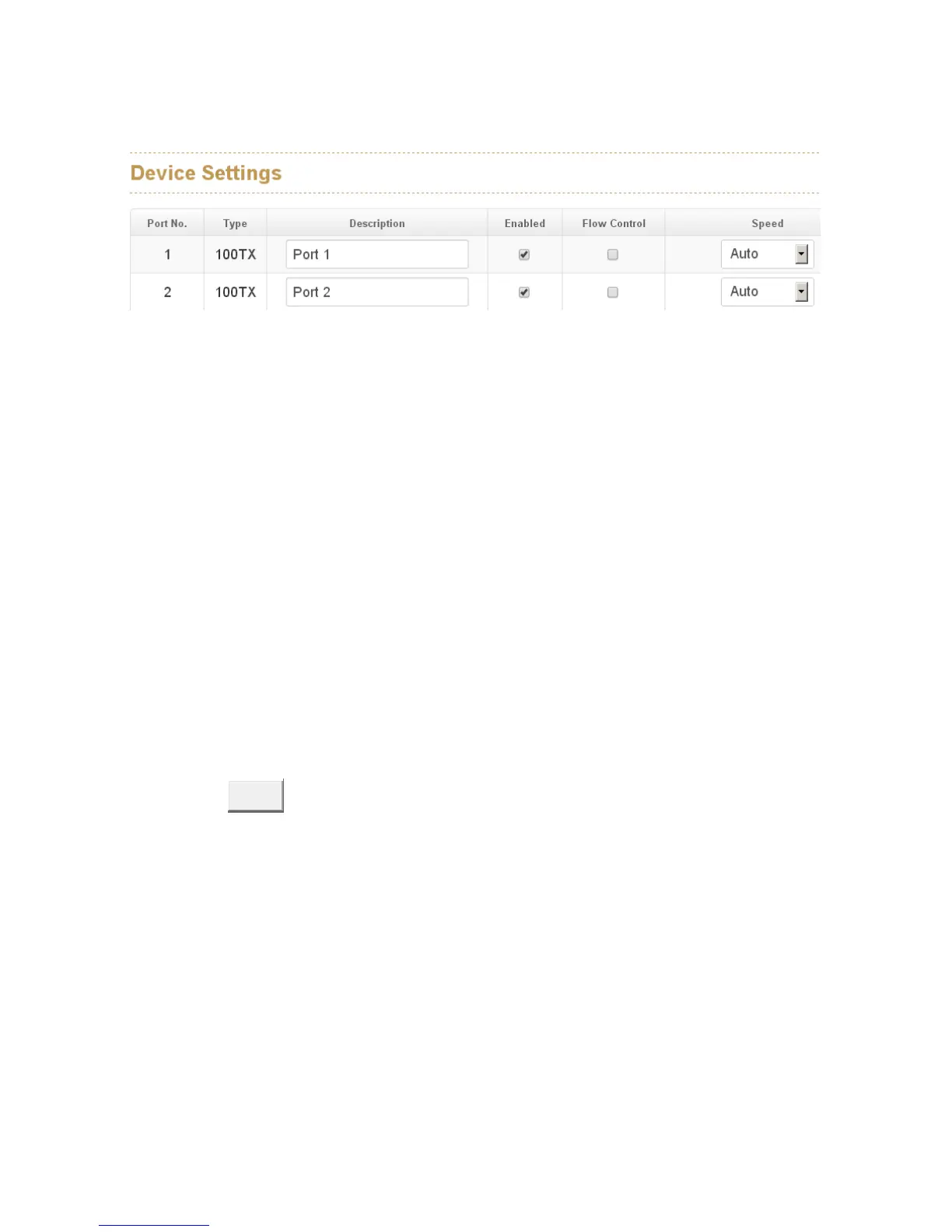

In Port control you can configurethe settings of each port to control the connection
parameters, and the status of each port is listed beneath.
Port No.: The port number which you want to be configured.
Type: Current port state.
Description: Port description.
Enables: enable/disable the switch port.
Flow Control: Whether or not the receiving node sends feedback to the sending
node is determined by this item. When enabled, once thedevice exceeds the
input data rate of another device, the receiving device will send a PAUSE frame
which halts the transmission of the sender for a specified period of time. When
disabled, the receiving device will drop the packet if too much to process.
Speed:Itcan be set as auto or set speed and negotiated way manually.
Click
Apply
to have the configuration take effect.
