Rx Bad Packet: The counts of receiving good packets (including undersize [less
than 64 octets], oversize, CRC error, fragments and jabbers) via this port.
Tx Abort Packet: The aborted packet while transmitting.
Packet Collision: The counts of collision packet.
Packet Dropped: The counts of dropped packet.
Rx Bcast Packet: The counts of broadcast packet received.
Rx Mcast Packet: The counts of multicast packet received.
Tx Mcast Packet: The counts of multicast packet transmitted
Click
button to clean all counts.
6.6.4 IEC Packet Statistics
This function will count the industrial control packet(Like Goose、Modbus、
PTP…etc) with switch.
6.6.5 Mirroring

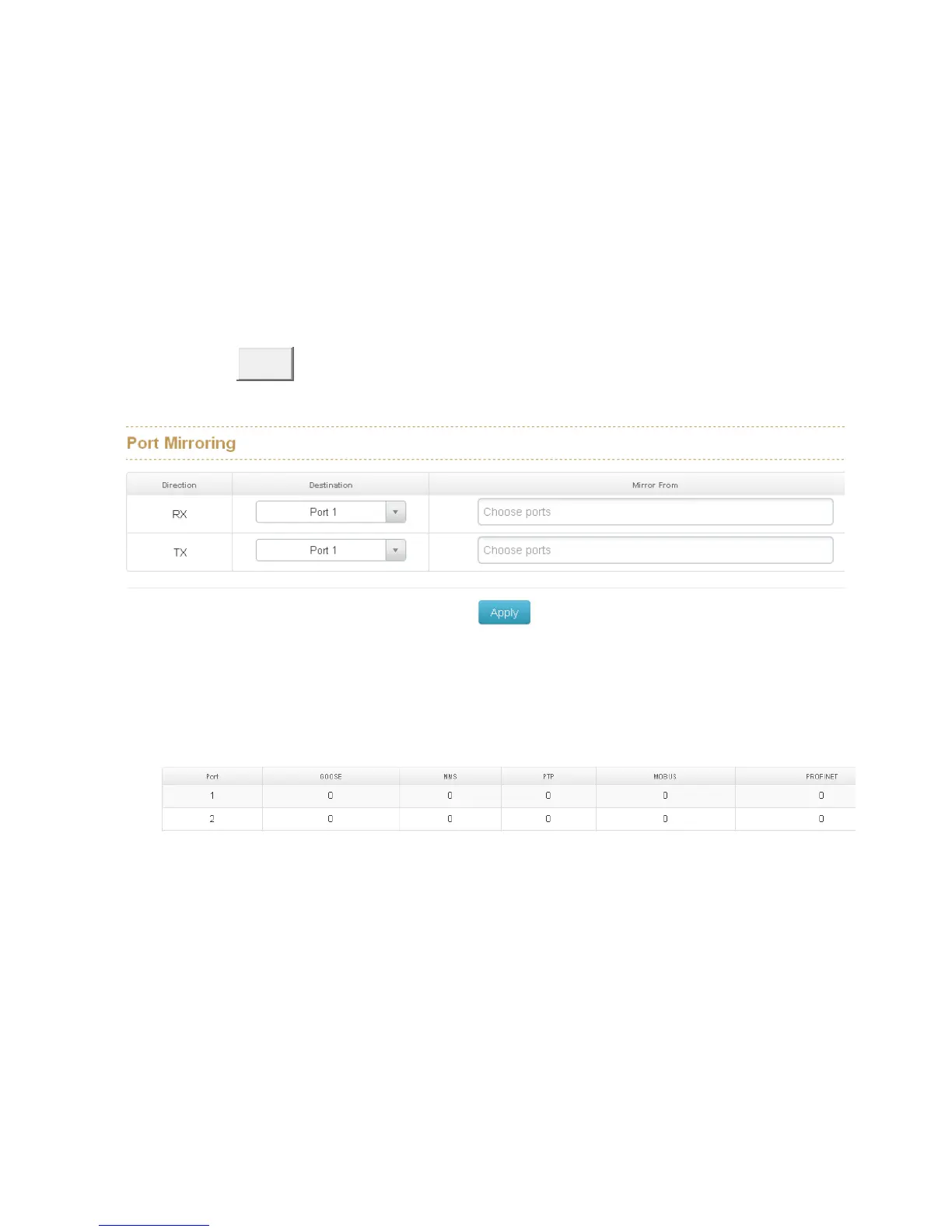

The Port mirroring is a method for monitor traffic in switched networks. Traffic through
ports can be monitored by one specific port, which means traffic goes in or out
monitored (source) ports will be duplicated into mirror (destination) port.
Destination :You can set which switch port will be responsible for collecting the
data which was duplicated from the source port.
