6.5.3 DDM event

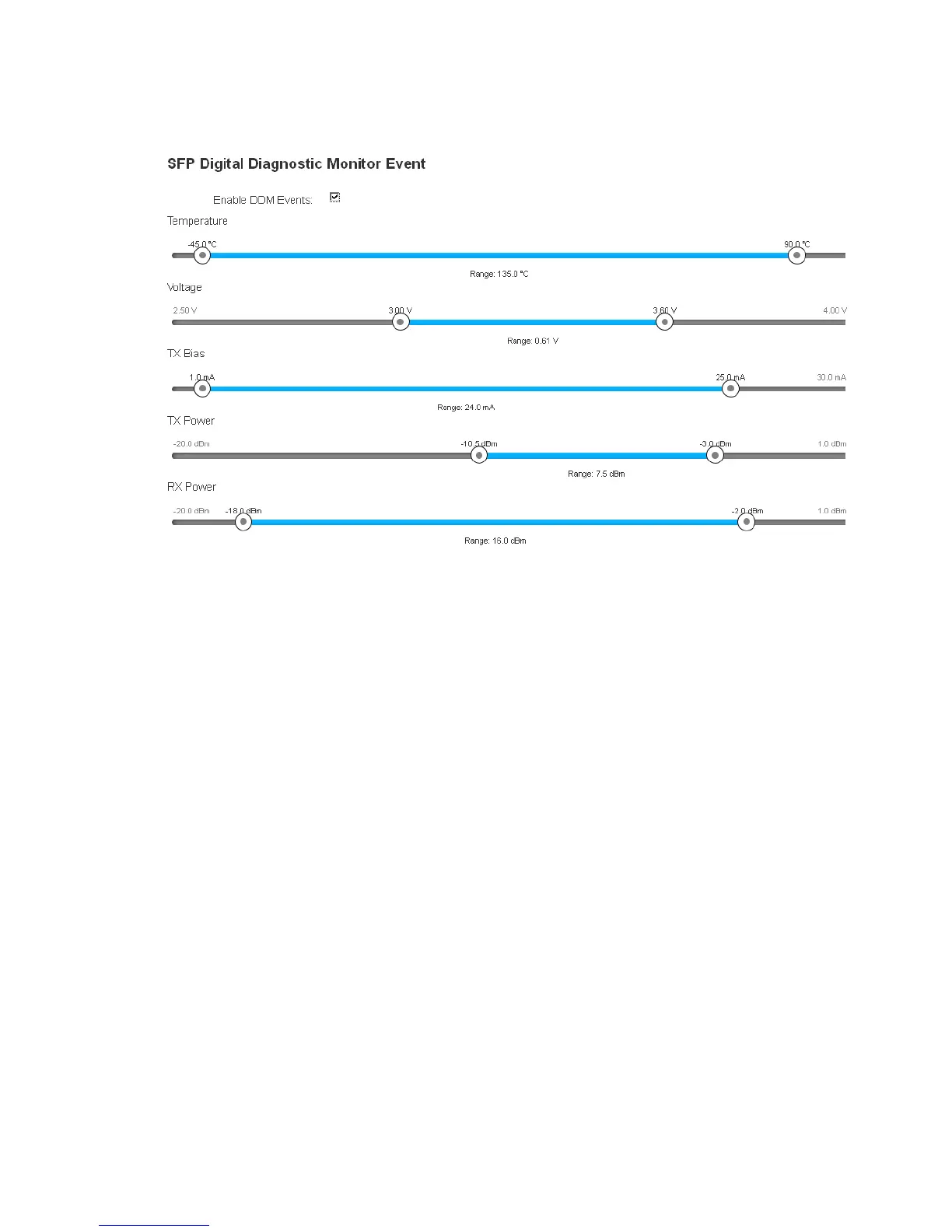

The switch supports DMI where can read all the parameters info from DDM SFP
when plugged into SFP slots, the shown information is as above including SFP
temperature, input voltage, TX bias, TX dBm and RX dBM.
You can set the trigger range of each event here, for example, when you set the
blue bar in the range from -45∘C to 90∘C, if the working Temp. of SFP module is over
90∘C or lower than the -45∘C, it will trigger the event system.
Note: This function will be displayed when DDM SFP is inserted.
