Assign a number in the range between 1 and 4094.

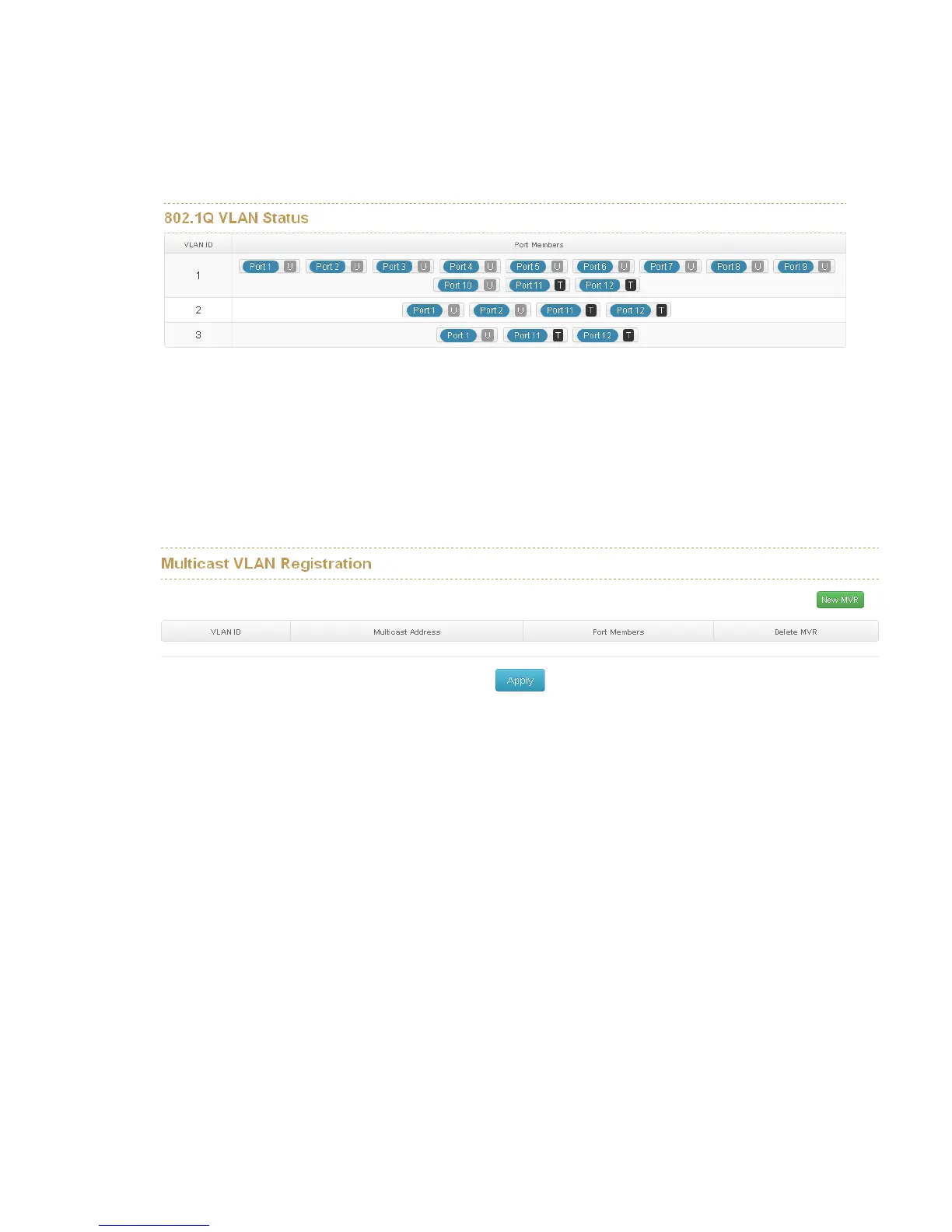

6.11.2 Status
You can see the status of each VLAN group in here.
6.12 MVR
The MVR feature enables multicast traffic forwarding on the Multicast VLAN. In a
multicast television application, a PC or a television with a set-top box can receive
the multicast stream. Multiple set-top boxes or PCs can be connected to one
subscriber port, which is a switch port configured as an MVR receiver port. When a
subscriber selects a channel, the set-top box or PC sends an IGMP join message to
Switch A in order to join the appropriate multicast. Uplink ports that send and receive
multicast data to and from the multicast VLAN are called MVR source ports.
VLAN ID
Specify the Multicast VLAN ID.
Multicast Addresses
Multicast Addresses of the group displayed.
Port Members
Ports under this group.
