6.10.2 Access Control List
The switch access control list (ACL) is probably the most commonly used object in
the OSI layer 2 and 3. It is used for access filtering. The ACLs are divided into MAC
and IP filtering.

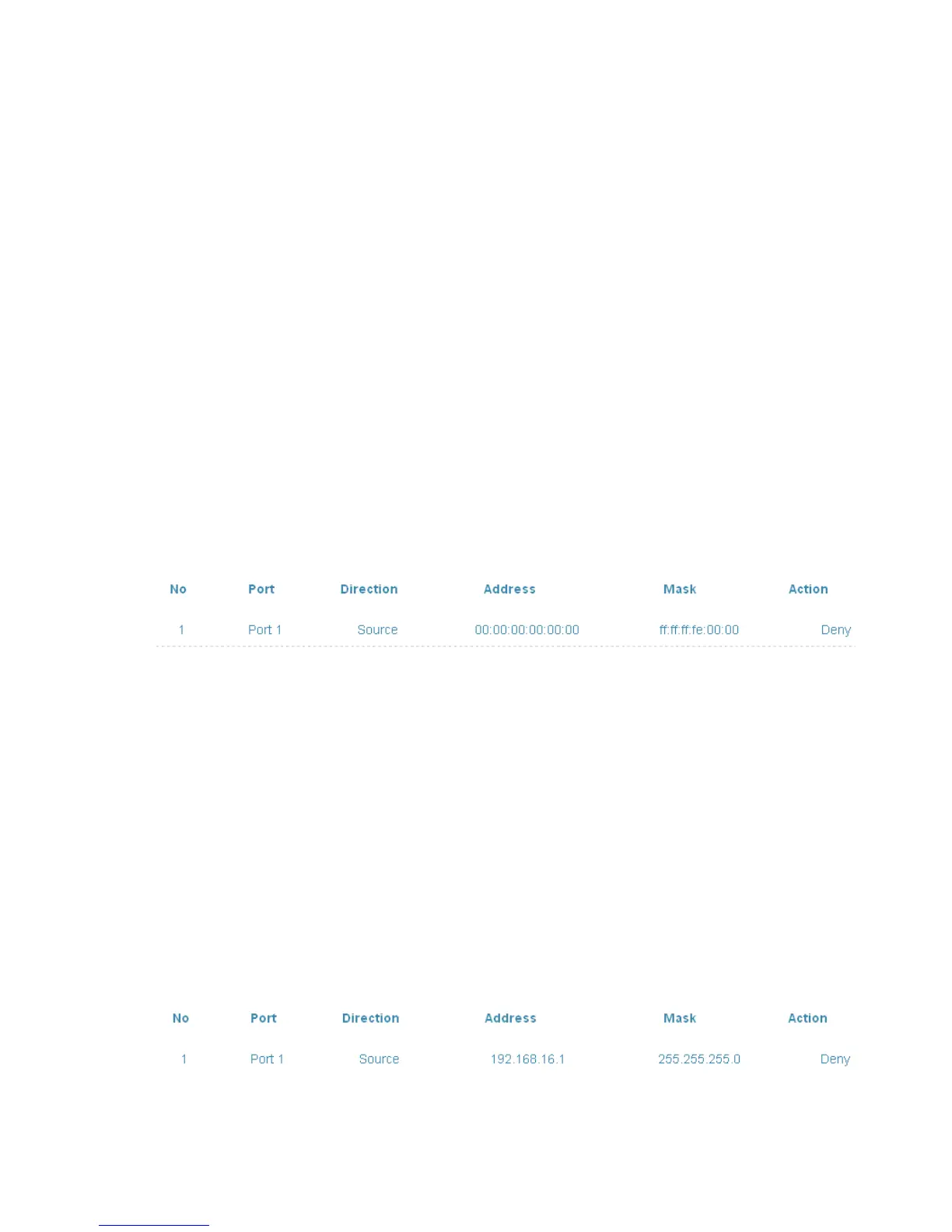

6.10.2.1 ACL with Layer2 (MAC)
No:
The number of ACL record.
Port:
assign the port which you want to enable the ACL function.
Direction:
Let the switch check the destination address or source address of packet.
Address: assign the MAC address which you want to deny.
Mask: set the mask to filter the MAC range.
6.10.2.2 ACL with Layer3 (IP)
No:
The number of ACL record.
Port:
assign the port which you want to enable the ACL function.
Direction:
let the switch check the destination address or source address of packet.
Address:
assign the IP address which you want to deny.
Mask:
set the mask to filter the IP range.
