93
edge_mode
Control whether the oper Edge flag should start as being set or cleared. (The
initial oper Edge state when a port is initialized). Control whether the bridge
should enable automatic edge detection on the bridge port. This allows oper Edge
to be derived from whether BPDU's are received on the port or not.
p2p_mode
Description: Controls whether the port connects to a point-to-point LAN rather
than a shared medium. This can be automatically determined, or forced either
true or false. Transition to the forwarding state is faster for point-to-point LANs
than for shared media.

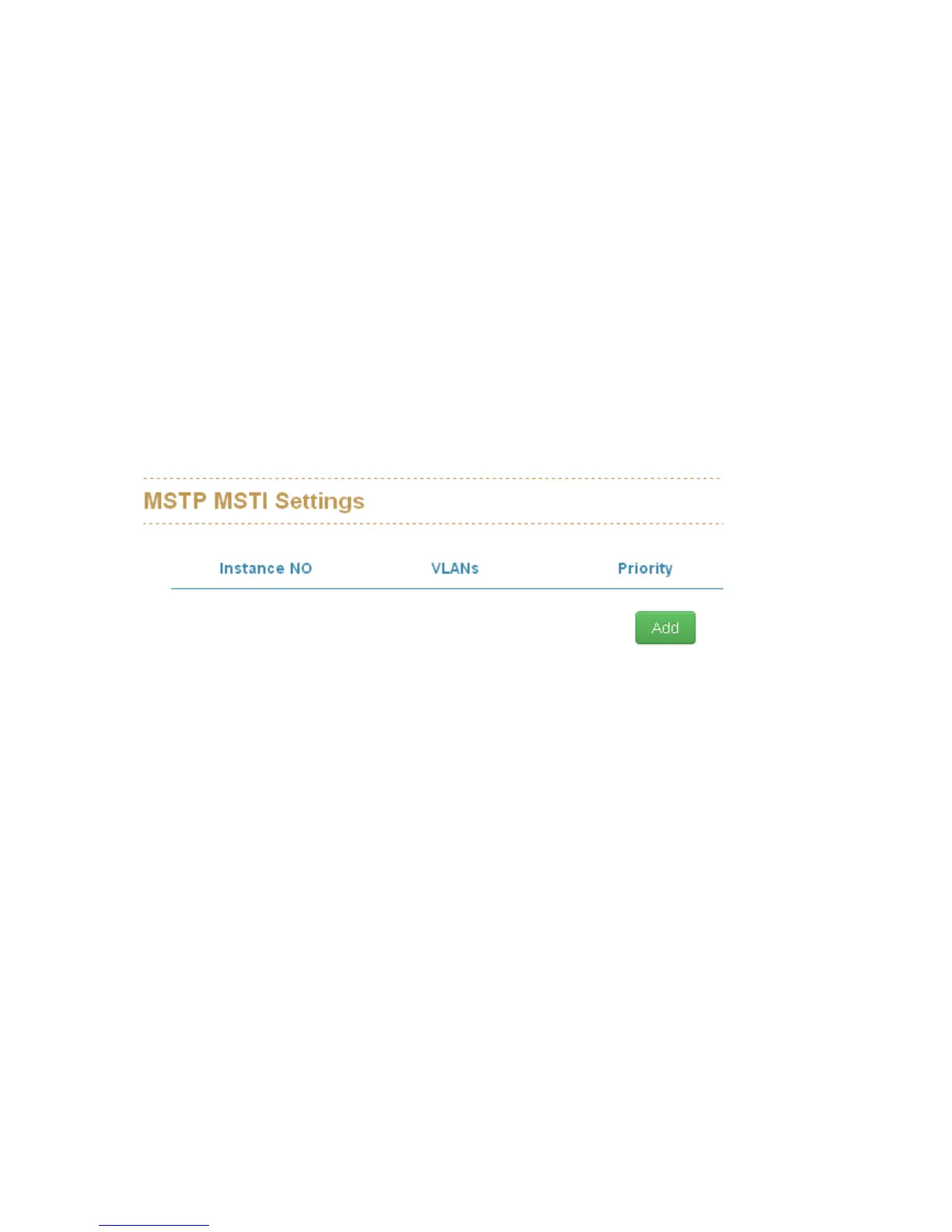

6.15.4. MSTP MSTI Settings
Instance No
VLANs
The list of VLANs mapped to the MSTI. The VLANs must be separated with
comma and/or space. A VLAN can only be mapped to one MSTI. An unused
MSTI should just be left empty. (I.e. not having any VLANs mapped to it.)
Unmapped VLANs are mapped to the CIST. (The default bridge instance).
Priority
Control the bridge priority. Lower numeric values have better priority. The bridge
priority plus the MSTI instance number, concatenated with the 6-byte MAC
address of the switch forms a Bridge Identifier.
