Lantronix SGX 5150 User Manual

5: Configuration Using Web Manager
SGX 5150 IoT Device Gateway User Guide 38
TM
Web Manager Components
The layout of a typical Web Manager page is below.

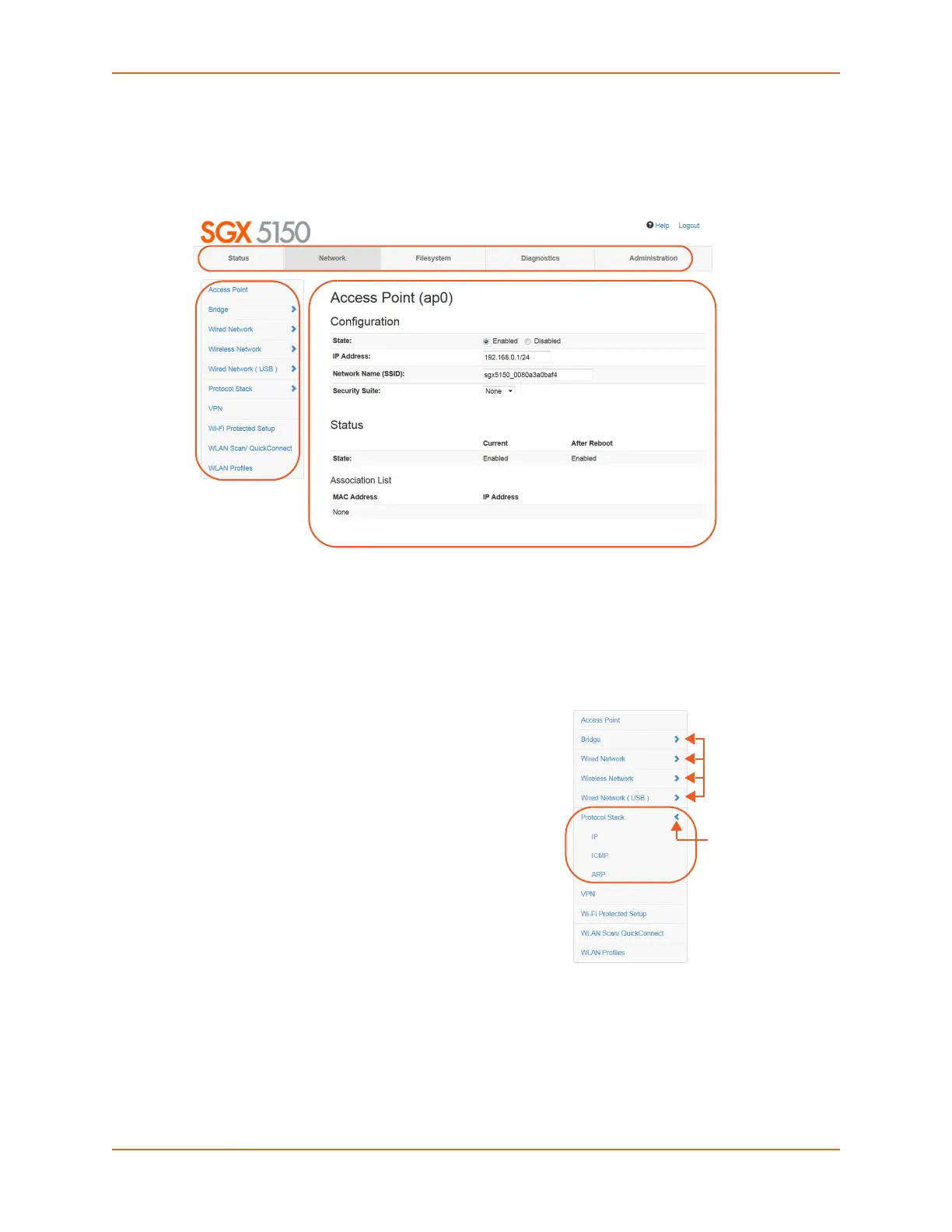

Figure 5-3 Components of the Web Manager Page
Web Manager pages have these sections:
 The Status, Network, Diagnostics and Administration tabs located in the header at the top
of the page provide direct access to each Web Manager page of the same name. All the
functionality is accessible through Web Manager and is divided between these tab/pages.
 Each Web Manager page accessed through
the header tabs reveal a page-specific menu
bar on the left side organizing available
sections for that page.
 The menu bar accessed via the Network
and Administration tabs contain
selections that can further expand to reveal
additional subsections. A right-pointing
blue arrow indicates a particular selection
can be expanded to reveal subsections.
 Expand or collapse an expandable menu
bar section by clicking on it.
 The main body area of the page contains either
view-only Status info or Configuration
options according to the tab, menu bar
selection or subsection selected.
 When a parameter is changed on a page, a Submit button will appear at the bottom of the
page. Click on this button to save the change.
 A Logout link is available at the upper right corner of every Setup and Admin page.
In Chrome or Safari, it is necessary to close out of the browser to completely logout.
If necessary, reopen the browser to log back in.
Header
Menu Bar
Status and/or
Configuration Area
These selections can
expand to reveal
additional subsections
Expanded
Figure 5-4 Expandable
Menu Bar Selections

Lantronix SGX 5150 Specifications

General

Certification	FCC ICES-003:2012 RED 2014/53/EU, EMCD 2014/30/EU, EN 300 328 V1.9.1, EN 301 489-1 V1.9.2, EN301 489-17 V2.2.1, EN 301 893 V1.8.1, EN 62311: 2008 AS/NZS CISPR 22, AS/NZS 4268: A1: 2013, AS/NZS 2772.2VCCI EN 55022:2010, EN 55024:2010, EN 61000-3-2:A2 2009, EN 61000-3-3: 2008 UL 60950/CSA 22.2 No. 60950, IEC 60950 CE LVD 2014/35/EU
LED indicators	Yes
Power requirements	9 - 30 VDC
Power over Ethernet (PoE)	No
Power consumption (typical)	1.9 W
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
Security algorithms	802.1x RADIUS, AES, EAP-FAST, EAP-PEAP, EAP-TLS, EAP-TTLS, FIPS 140-2, MSCHAPv2, TKIP, WPA, WPA2, WPA2-PSK, WPS
Authentication method	RADIUS
Ethernet LAN (RJ-45) ports	1
Supported protocols	IPv4/IPv6, TCP, UDP, ICMP, ARP, Auto-IP, DNS, (S)FTP
Frequency band	2.4 / 5 GHz
Cabling technology	10/100BASE-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s

Weight and Dimensions

Weight	350 g
Dimensions (WxDxH)	110 x 89 x 26 mm
