Proline Kryomats
24
Unpacking
YAUE0007 / 2/26/2009
5.3.3.2

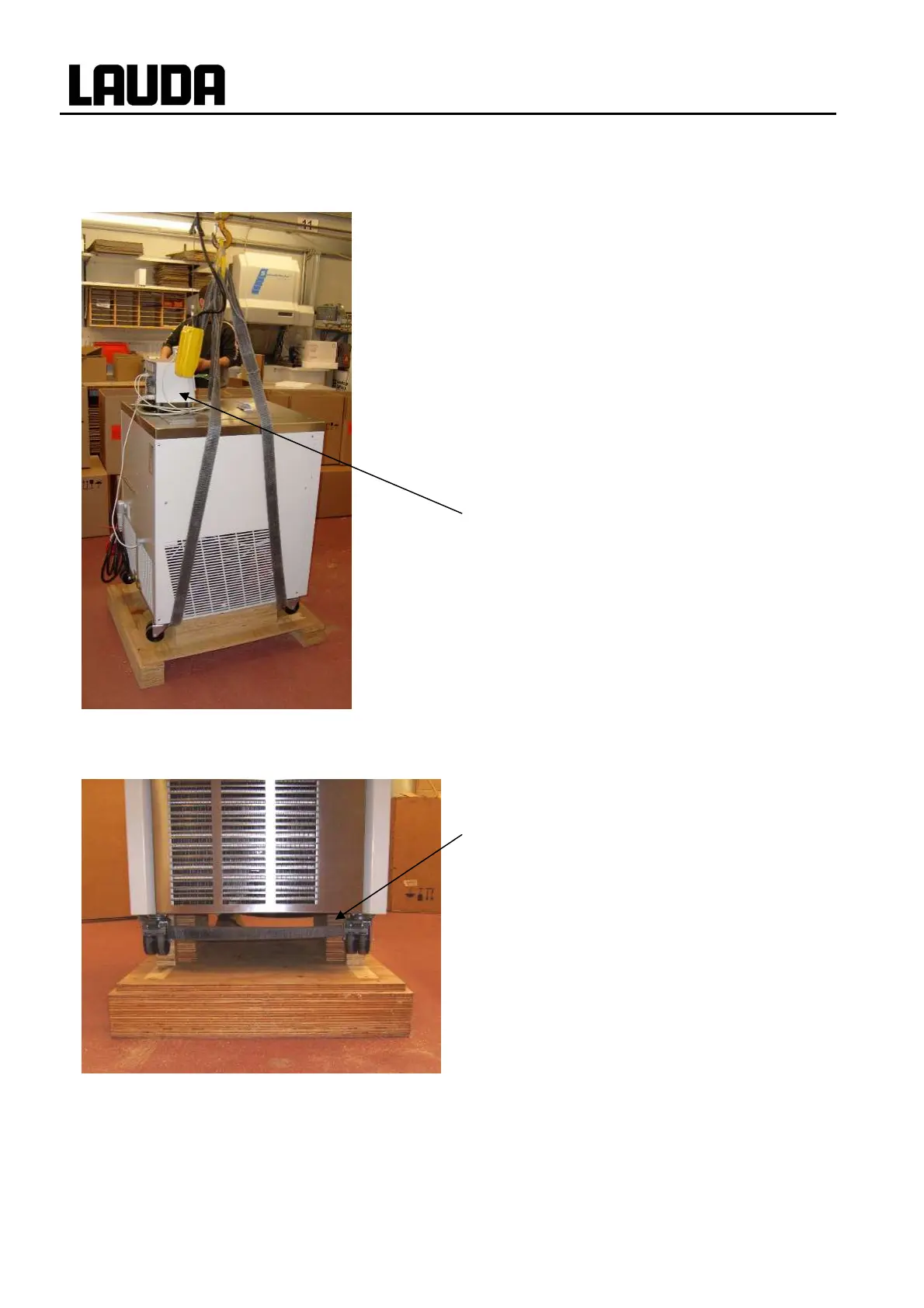

Gerät von der Palette heben
Legen Sie die Gurtschlaufen zwi
schen Palette und
den Rädern um das Gerät und führen Si
e die
Gurtschlaufen über der Gerätemitte zu
sammen.
Heben Sie das Gerät anschließen
d von der
Palette.
Achtung:
Der Gurt darf nicht gegen den Aufbau de
s Gerätes
drücken!
−
Watch for center of gravity!
Vorderansicht der Gurtve
rlegung
Richten Sie ggf. die Räder gerade aus.
23
25
Table of Contents
Default Chapter
3
Prefixed Safety Notes
3
Table of Contents
4
1 Safety Information
7
General Safety Information
7
Other Safety Information
7
2 Brief Operating Instructions
9
Menu Structure: Master
10
Menu Structure: Command
11
3 Controls and Functional Elements
12
4 Unit Description
17
Environmental Conditions
17
Types of Unit
17
Varioflex Pump
17
Materials
18
Temperature Display, Control and Safety Circuit
18
Programmer and Ramp Function
19
Interfaces
19
Interface Modules (Accessories)
19
Refrigerating Unit
20
Avoidance of Dewing
20
Heater Rating and Power Consumption from the Mains
20
5 Unpacking
21
After Unpacking
21
Standard Accessories
21
Packing and Unpacking with Original Verpackungsmaterial
21
Background
21
Voraussetzungen
21
Auspacken des Gerätes
22
Umverpackung
22
Gerät von der Palette Heben
24
Vor der Inbetriebnahme
25
6 Preparation
26
Assembly and Siting
26
Filling and Draining
27
Heat Transfer Liquids and Hose Connections
28
Connecting External Loads
30
7 Starting up
31
Mains Connection
31
Switching on
31
Switching off / Standby
33
Key Functions
34
General Key Functions and Pilot Lamps
34
Changing Window Information (Command Console)
38
Locking the Keyboard
39
Important Settings
41
Temperature Setpoint Setting
41
Displaying the Actual External Temperature
43
Setting Pump Power or Standby
44
Activate External Pump
46
Activating External Control
46
Current Consumption from the Mains
48
Setting the Date and Time (Command)
49
Display Resolution Setting (Command)
50
Special Settings
51
Defining the Type of Start Mode
51
Defining Temperature Limits
52
Setpoint Offset Operating Mode
53
Restoring Works Settings
54
Setting the Volume of the Acoustic Signals
55
Entering the Offset of the Internal Temperature Probe
55
Restoring the Works Setting of the Internal Temperature-Probe Offset
56
Entering the Offset of the External Temperature Probe
57
Restoring the Works Setting of the External Temperature-Probe Offset
57
Graphical Display of Temperature Measurements (Command)
58
Programmer (PGM Only Command)
60
Program Example
60
Selecting and Starting the Program (Start, Hold, Stop)
62
Interrupting, Continuing or Terminating the Program (Hold, Continue, Stop)
63
Creating or Modifying a Program (Edit)
64
Defining the Number of Program Loops (Loops)
68
Viewing the Program Sequence as a Graph (Graph)
68
Obtaining Information on a Program (Info)
69
Ramp Function
70
Timer Function (Command)
71
Control Parameters
72
Internal Control Variable (Integral Measurement Probe)
73
Proven Settings for Control Parameters and Pump (Integral Measurement Probe)
73
External Control Variable (External Measurement Probe)
73
Steps for Setting the Control Parameters for External Control
74
Alarms, Warnings and Errors
75
Overtemperature Protection and Checking
75
Low-Level Alarm and Low-Level Checking
77
High-Level Settings
77
High-Level Warning or Alarm
78
Pump-Motor Supervision: Overload or Blockage
79
Pump-Motor Supervision: Dry Running
79
Compressor Overtemp
80
Three-Phase Current
80
Fault List „Alarms and Warnings
81
Rs 232/ Rs 485 Interface
84
Connecting Cables and Interface Test RS 232
84
Protocol RS 232
84
Connecting Cable RS 485
85
Protocol RS 485
85
Write Commands (Data Commands to the Thermostat)
86
Read Commands (Data Requested from the Thermostat)
87
Error Messages
89
Driver Software for LABVIEW
89
8 Interface Modules
90
Installing of Modules
90
Menu Structure for All Modules (Only Command)
91
Serial Interfaces Rs232/ 485
92
Analogue Module
92
Contact Module
93
Contact Module LRZ 915 with Three Inputs and Three Outputs
93
Namur-Contact Module LRZ 914 with Only One Input and One Output
94
9 Maintenance
95
Device Status
95
Interrogating the Device Type
95
Software Version
95
Serial Numbers
95
Device Data
95
Fault Memory (Command)
96
Cleaning
96
Cleaning the Surface of the Device
96
Draining the Water-Cooled Condenser
97
Servicing, Cleaning, Repair and Disposal Information
97
Servicing
97
Service Intervals According to VDI 3033
98
Testing the Heat Transfer Liquid
98
Cleaning the Condenser
99
Air-Cooled Condenser
99
Cleaning the Dirt Trap
99
Water-Cooled Condenser
99
Decalcifying the Water Cooling Circuit
100
Repair Information
100
Disposal Information
101
Disposal of the Packaging
101
Disposal of the Refrigerant
101
Remedying Faults
102
Help Desk and Ordering Replacement Parts
104
10 Accessories
105
11 Technical Data and Diagrams
106
12 Index
112
